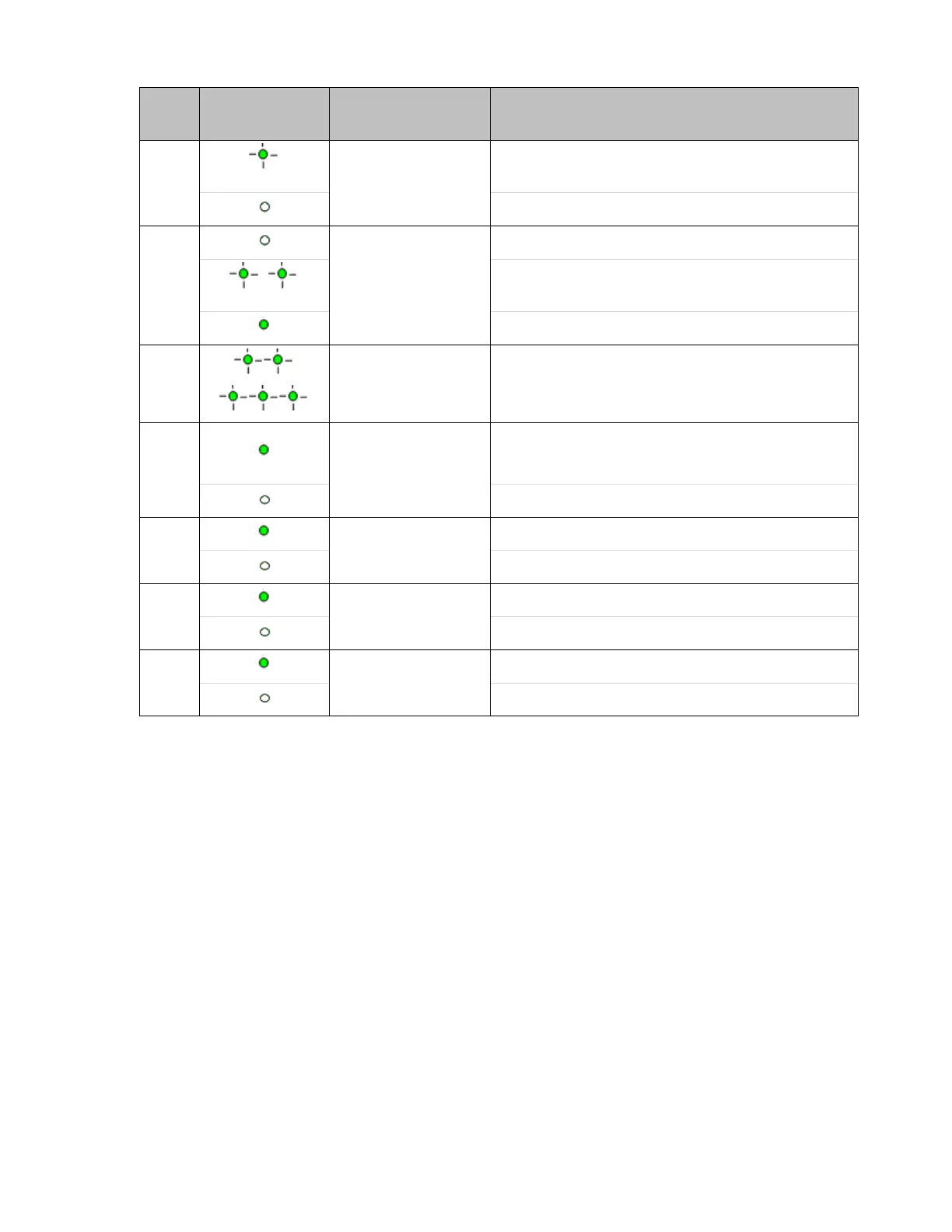

LED
#
LED
STATUS
Definition
1
“AC Present”
Solid: System has AC Mains applied and 5V
standby is active.
OFF: No AC detected, circuit breaker off
2
“Battery”
OFF: No battery installed, or completely depleted
Blinking: Battery charging (or reconditioning) in-
process
Solid: Battery is fully charged
3
“Controller
Status”
Solid: uCPU is up
4
“Interlocks”
Solid: Module docked and cover “on”
Blinking: TBD
5
“Vwall”
Solid: AC/DC 24VDC output is active
OFF: No AC or circuit breaker tripped
6
“Vcart”
Solid: 12V for cart peripherals
OFF: No power to cart assemblies
7
“Vdock”
Solid: 12V for Scan Module
OFF: No power to Scan Module
