ZONARE Z.ONE PRO - Page 181

z.one
pro
Service Manual
Page 181 of 217

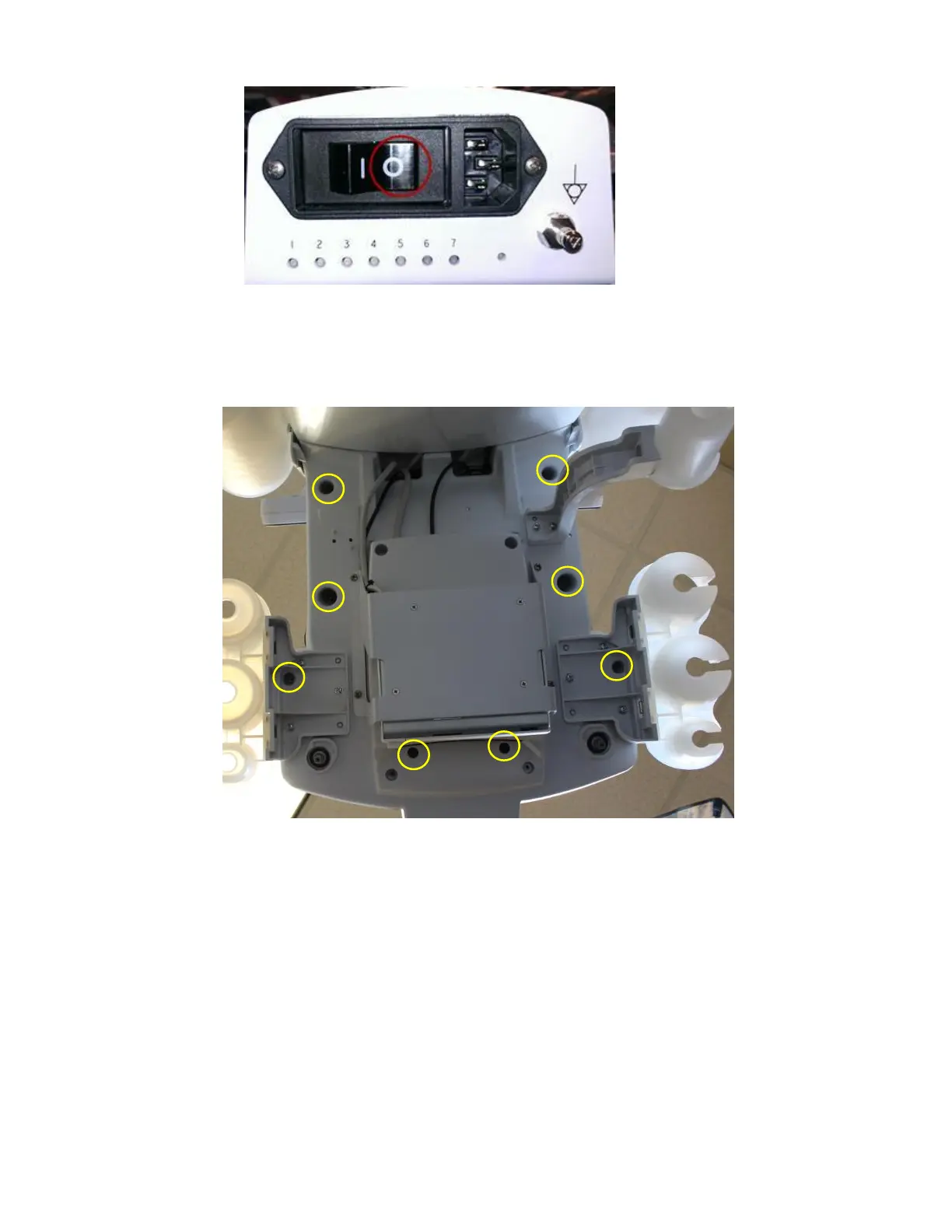

3. Disconnect the main AC power cord from the rear of the system or unplug from the wall source.
4. Remove the eight (8) Phillips screws that secure the UI to the cast UI base. This will need to be
accomplished from below using a Phillips screwdriver.
UI Screw
locations
