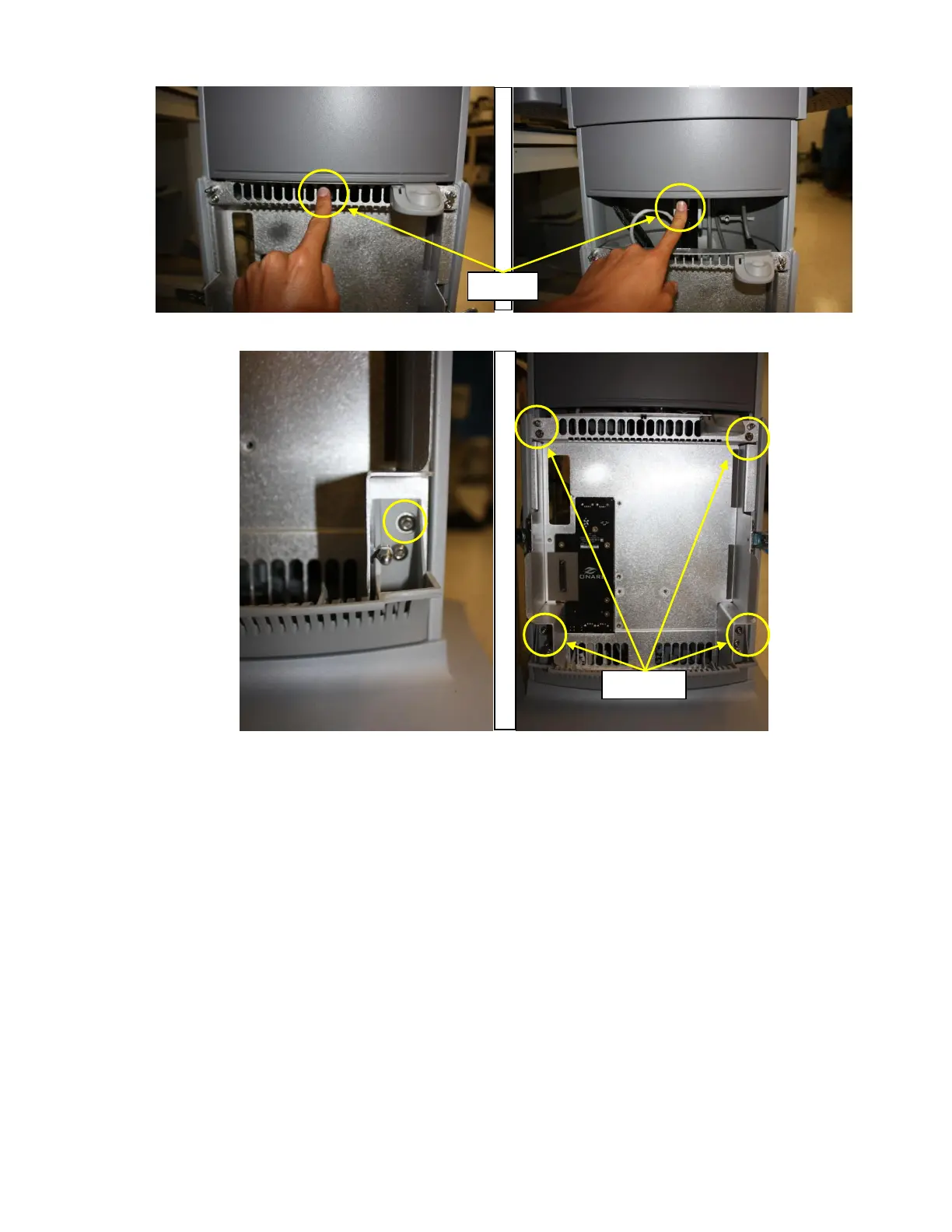

6. Locate the two screws on each bottom corner of the Dock Board. Unscrew the higher one on each side.
7. Unscrew each of the screws in the top corners of the Dock Board. The Dock Board is now free.
8. Disconnect all wires where they connect to the Dock Board. There are five wires in total. Take note of
where each wire connects for reassembly
Hook
Screws
