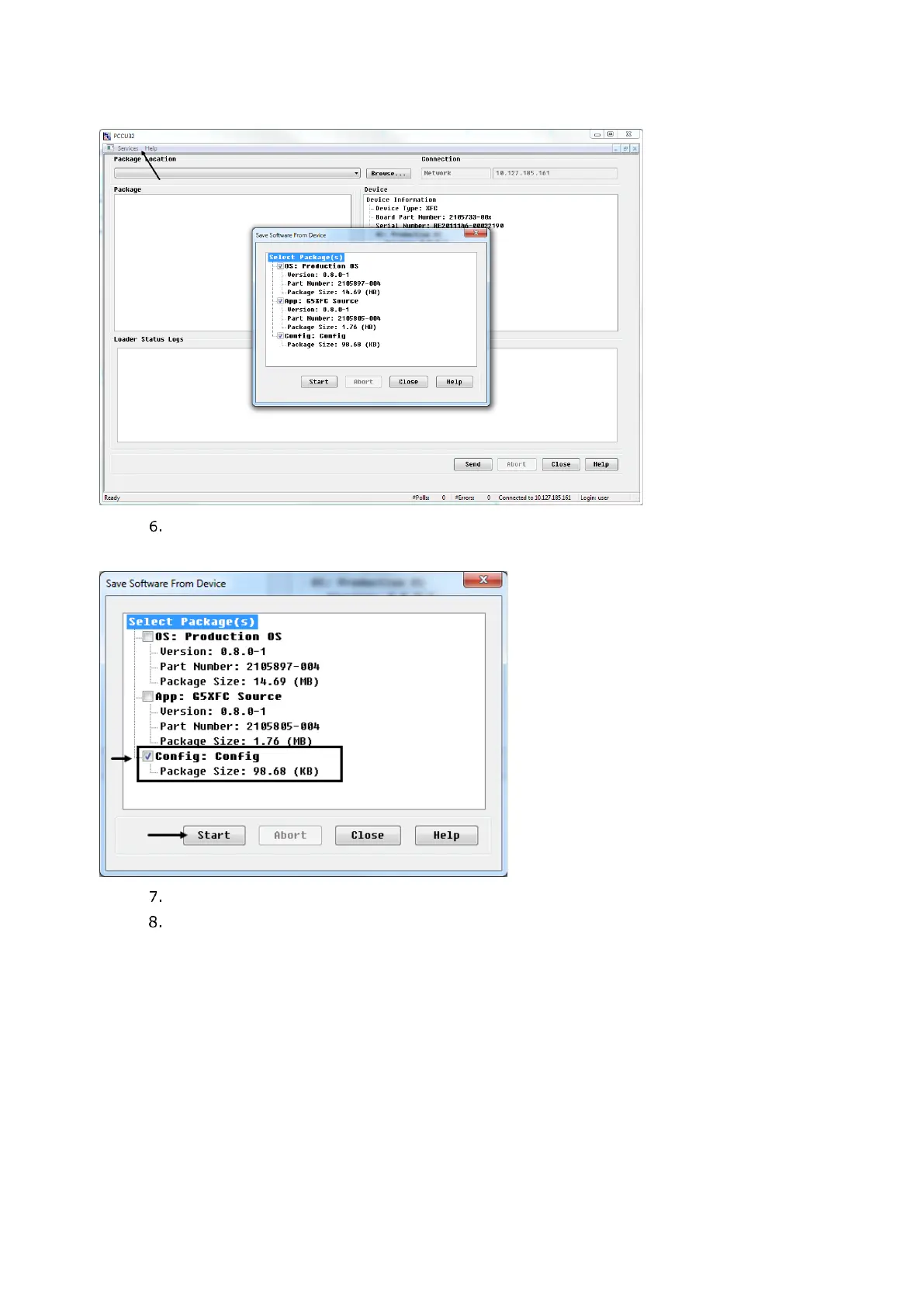

Figure
10
-5: Save Software from Device w
indow
To save only the configuration, clear all options except
Config
.
Figure
10
-6: Config checkbox
Click
Start
. A browser window displays.
Locate the destination folder for the conf
i
guration, type the file name, and click
Save
. Take
note of the location of the configuration file.
