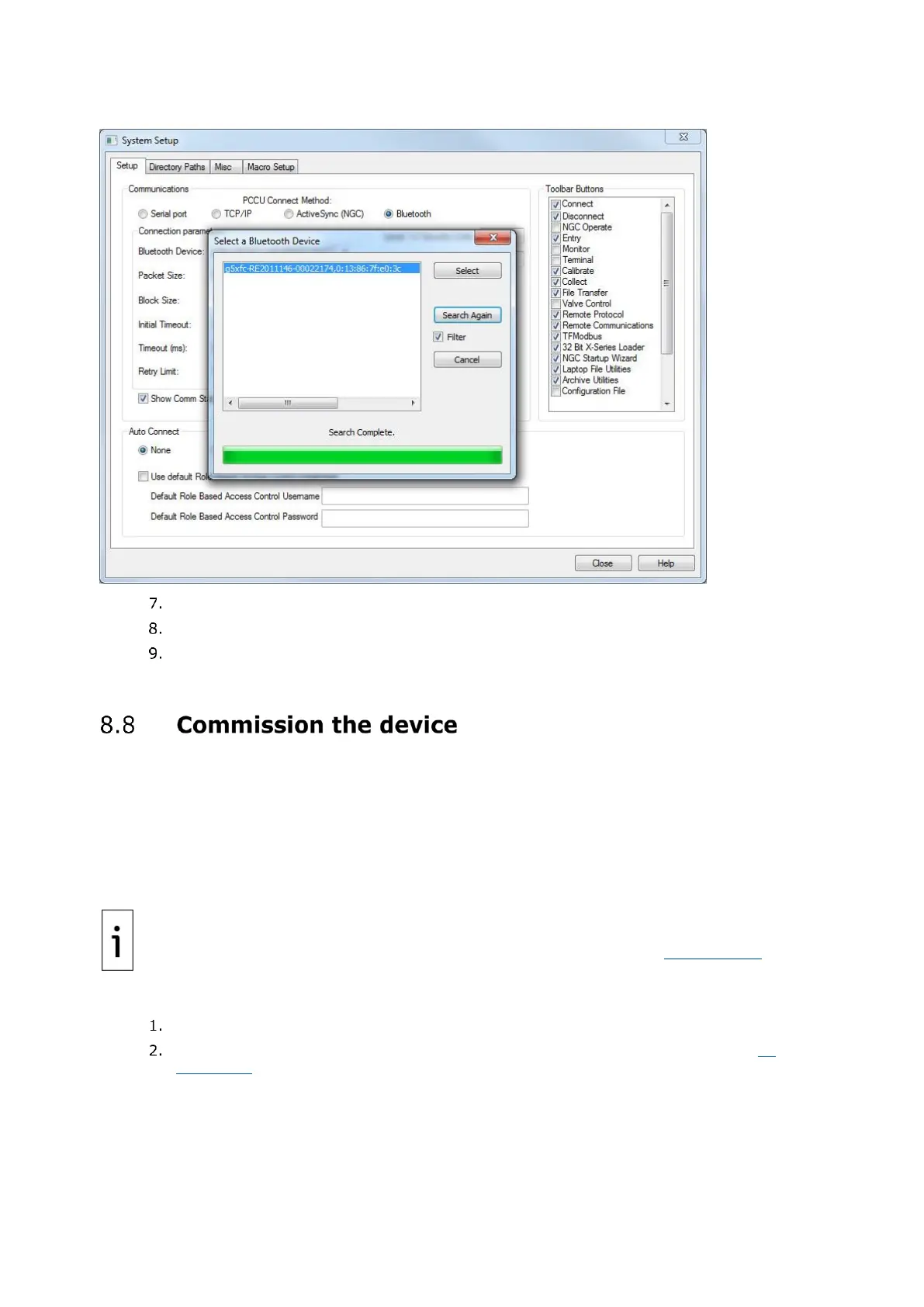

Figure 8-23: PCCU Connection Setup for Bluetooth
Click Close to exit PCCU connection setup.
On the top PCCU menu, click Entry to connect to the XFC
G5
or XRC
G5
.
When the connection is successful, continue with configuration procedures or click Close to
close the Bluetooth connection.
For further configuration or changes to the Bluetooth setup, refer to the Bluetooth help topics.
Commissioning the XFC
G5
or XRC
G5
is a two-part process:
 Validate the device measurement
 Place the device in service.
8.8.1 Validate the device measurement
The XFC
G5
and XRC
G5
are calibrated at the factory before shipping. However, shipping and installation
may introduce errors into the measurement results. To verify measurement accuracy, perform
pressure checks.
IMPORTANT NOTE: Save the device’s data and configuration before and after calibration
procedures. For details on calibration or device data backup, see section 11 Calibration.
Validate measurement:
Perform static pressure (SP) and differential pressure (DP) calibration pressure checks.
If it is necessary to correct errors in the measurement system, proceed to section 11
Calibration.
8.8.2 Place the device in service
The following instructions provide general guidelines for placing the XFC
G5
in service.
