32 | XSE RI ES G5 | 210602 6MNAA
NOTICE – Equipment damage. To avoid damage to the stainless-steel tubing, fittings, and valves,
always use a backup wrench to stabilize and eliminate tension on both sides of the connection when
tightening. Damaged connections may introduce leaks into the system resulting in inaccurate
measurement.
Insert the ferrule into the fitting and slide the nut onto the ferrule and tighten.
Repeat step 5 for each tubing connection point.
Leak-test the manifold and tap valve connections. See section 3.9 Leak-test manifold and tubing
connections.

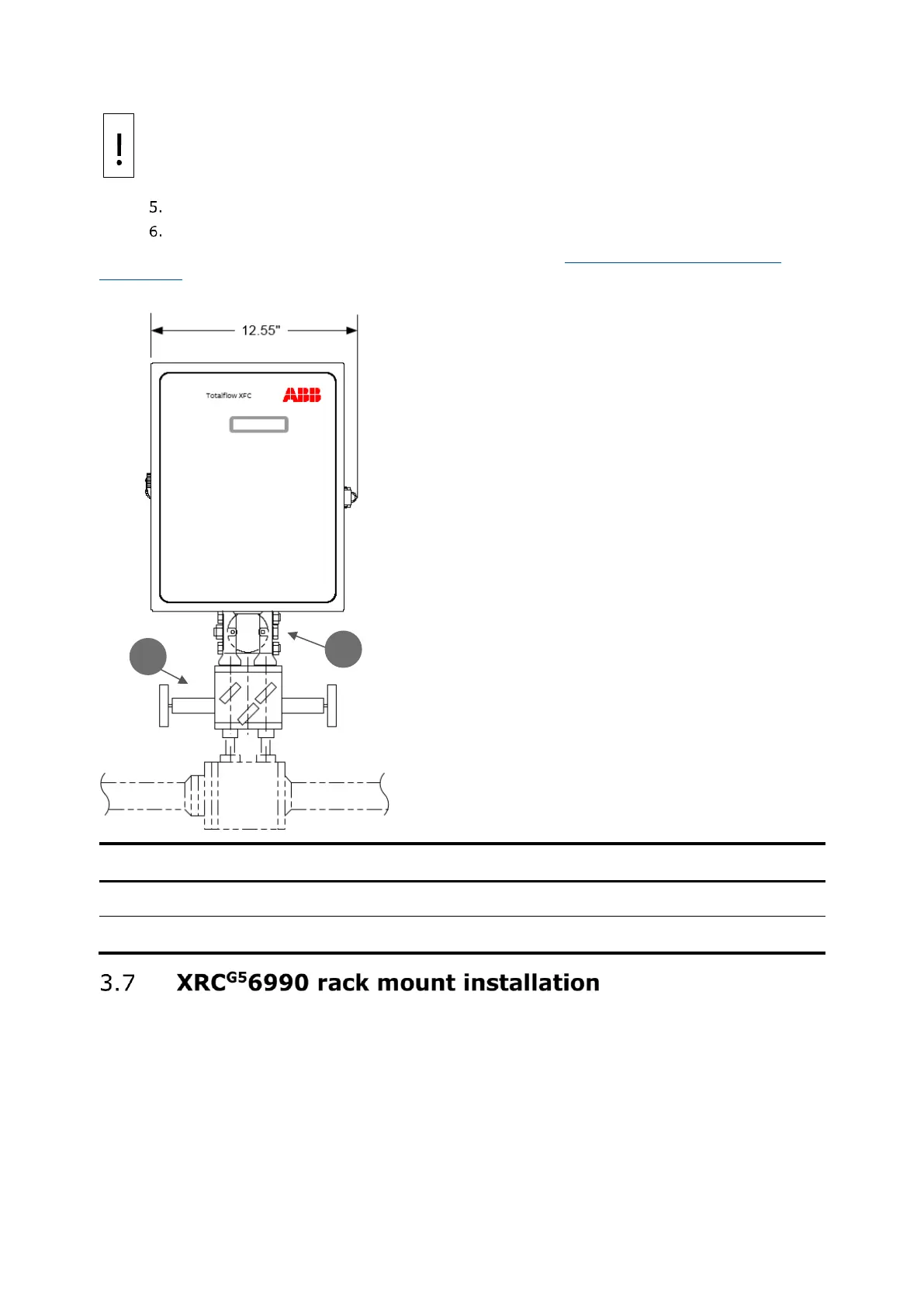

Figure 3-2: XFC
G5
with XIMV attached to a 5-valve manifold
Legend - XFC
G5
with XIMV attached to a 5-valve manifold
1
Instrument manifold, 5-valve
2
XIMV
3.7.1 Overview
The XRC
G5
6990 is intended for rack-mounting. For purposes of these instructions, we assume that the
mounting rack is already in place and that instructions are not required for mounting the unit into the
rack. `
