7.3.1 Connect the battery (dc power)
Connect the 12-volt SLA battery using the battery cable.
WARNING– Bodily injury and property damage. Complete all wiring of peripheral or
external devices to the controller before power is applied.
Connect the battery before connecting the charger cable.
Connect the battery:
Connect the battery to the BATT terminals on the XFC
G5
(J1 as shown below) or XRC
G5
(J16). Observe the polarity (+ and -).

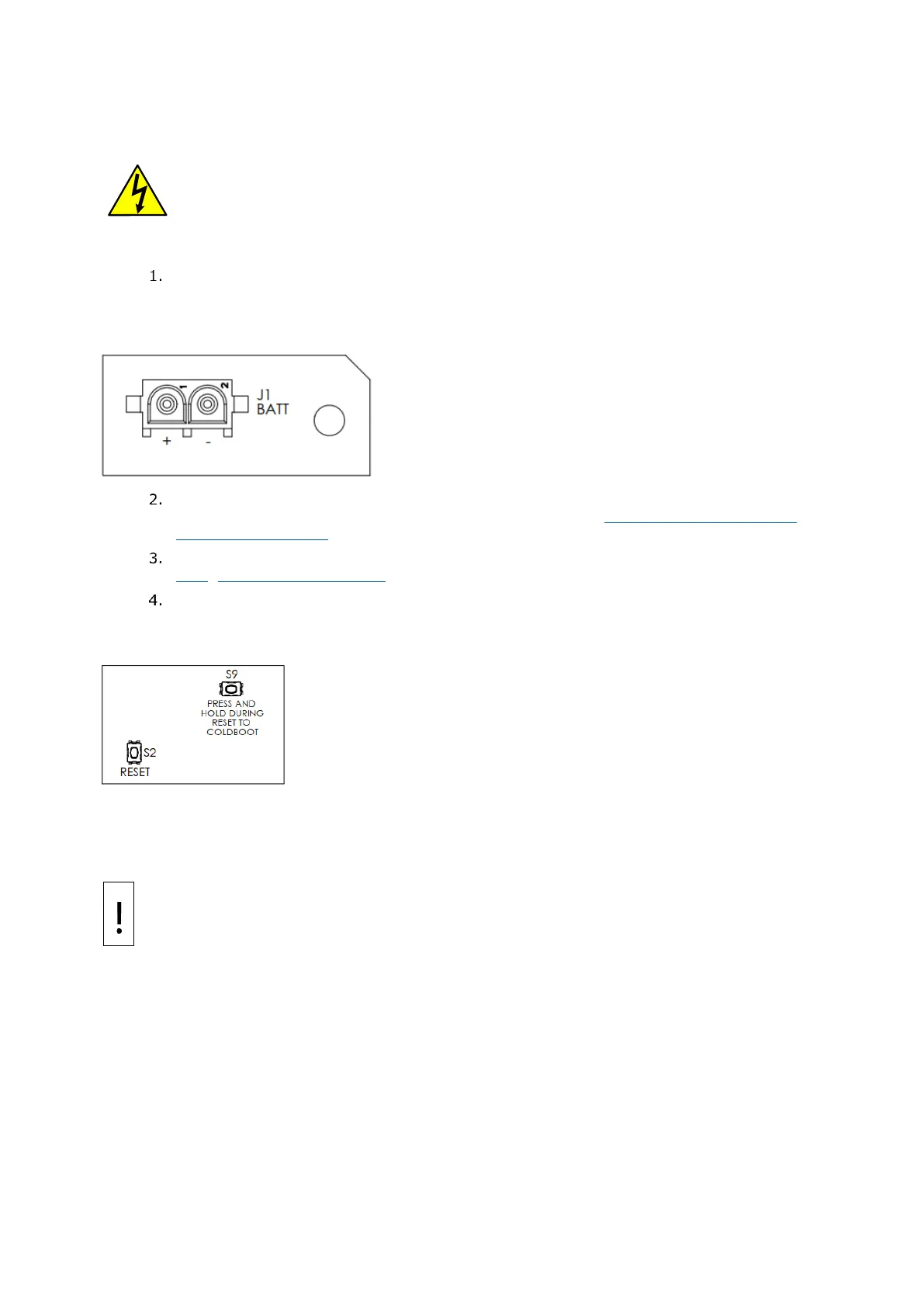

Figure 7-2: XFC
G5
BATT connector
Confirm that the battery is supplying power to the XFC
G5
or XRC
G5
by observing the power-
on sequence information scrolling on the LCD (see details in section 7.1 Super capacitor
charging at boot time).
If LCD does not display the power-on sequence, try adjusting the contrast. Refer to section
10.6, Adjust the LCD contrast.
If the power-on sequence fails to initiate or complete, press the reset button (shown
below).
Figure 7-3: Reset button and coldboot button
7.3.2 Connect the charger
To connect the charger, select the procedure applicable to the type of charger used. It is assumed that the
charger has been wired to the terminal connector removed from the CHRG onboard terminal block.
NOTICE – Equipment damage: Always connect the battery to the BATT port before
connecting the solar panel or alternate charger cable to the XFC
G5
or XRC
G5
.
7.3.2.1 Connect the solar panel charger
Reinsert the CHRG connector wired to the solar panel charger cable to the CHRG terminal on the
XFC
G5
(J5 shown below) or XRC
G5
(J17).
