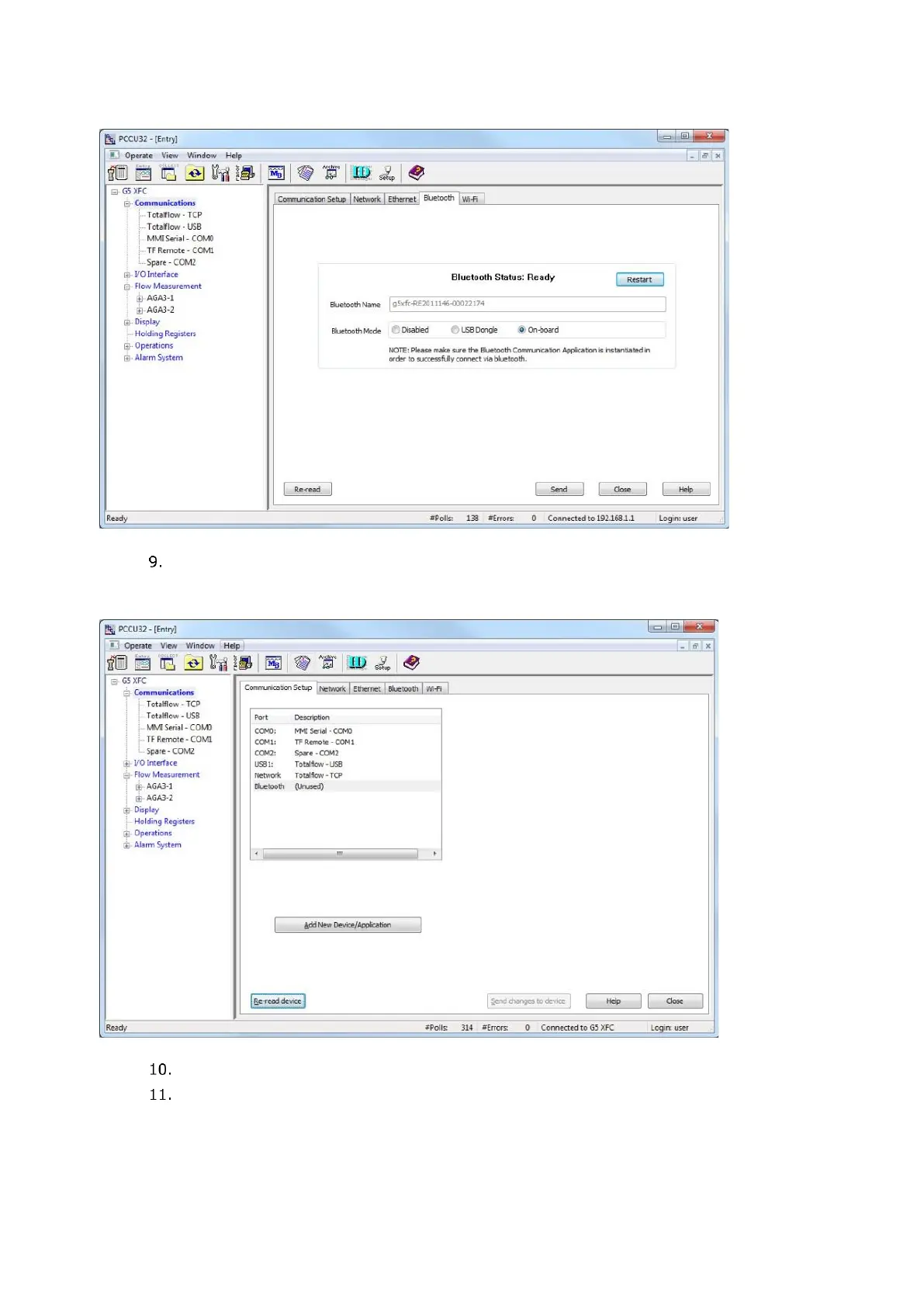

Figure 8-
19
: Enable Bluetooth
Select the
Communication Setup
tab. The Bluetooth interface is unused in the port list.
Figure 8-
20
: Communication Setup f
or Bluetooth
Select
Bluetooth
(Unused).
Select
Add New Device/Application
. See the figure below
.
