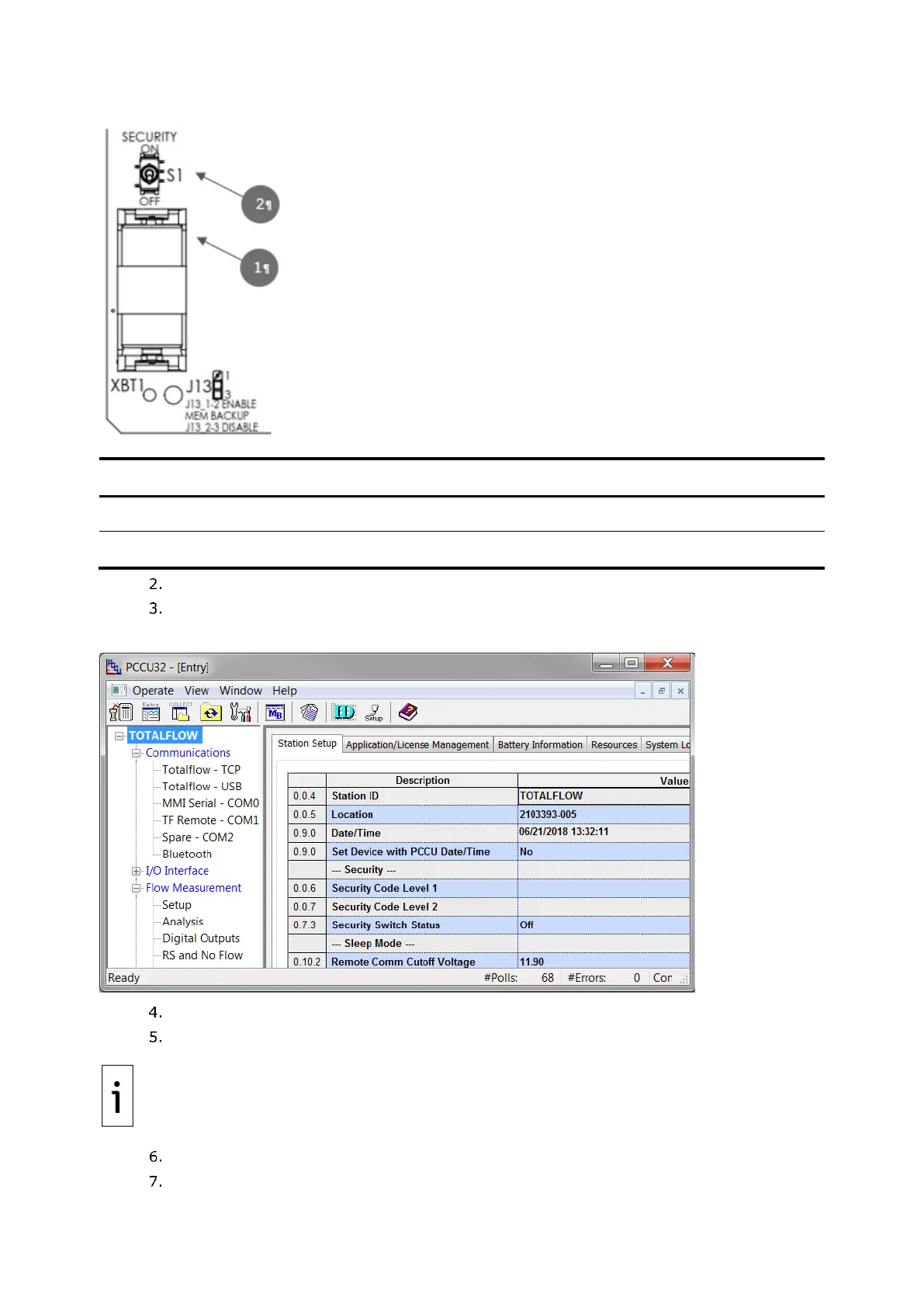

Figure 9-2: S1 Security switch
Legend
–
S1 Security switch
1
Battery
2
Security switch
Ensure the security switch is set to
OFF
.
On the Station Setup tab, verify
that the Security Switch Status field shows
O
ff.
Figure 9-3: Station Setup tab
–
Security switch status
Type a four-digit security code for Security Code Level 1 (read only access).
Type a four-digit security code for Security Code Level 2 (read an
d write access).
IMPORTANT NOTE:
R
ecord the security codes. Once sav
ed, they are not visible on the Station
Setup tab.
Click
Send
.
On the board, set the XFC
G5
or XRC
G5
security switch to
ON
.
