ABB X Series User Manual

66 | XSE RI ES G5 | 210602 6MNAA
Table 8-3: Communication setup parameters
Timeouts and delays
Serial port settings
Parameter
Default
Parameter
Default
Ack timeout (s)
15
Baud
9600
Response delay (ms)
40
Parity
None
Xmit key delay (ms)
420
Data bits
8
Unkey delay (ms)
40
Stop bits
1
Power up delay (ms)
80
For RS-485 communication, position the termination jumpers according to the following
table:
Table 8-4: RS-485 Termination on COMM1
Position of the device on the Bus
XFCG5 J11
XRC J7
Last or only unit
1-2
1-2
Intermediate
2-3
2-3
Click Send changes to device after all values have been set.
Observe the LCD on the enclosure door. The annunciator in position A8 should periodically flash the
symbol to indicate that the COMM1 port is active and listening for communication. See the following
figure.

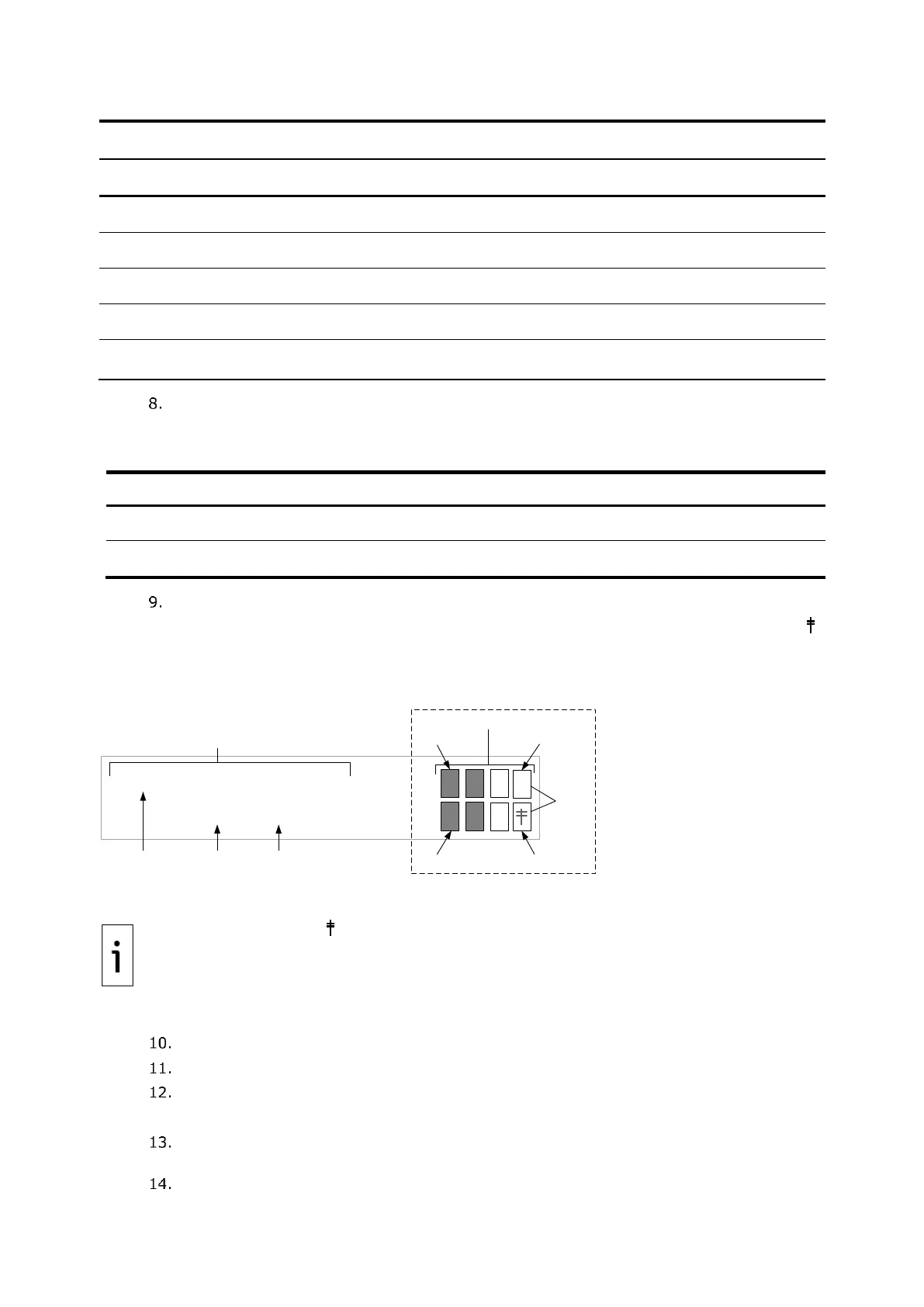

Figure 8-13: Verify the communications set up for COMM1
IMPORTANT NOTE: The symbol flashes according to the listen cycle defined for the
communication port. The default listen cycle is 4. If set to zero, the symbol should be displayed
continuously. See the PCCU32 Help files for communication port setup to learn how this setting
effects power usage.
To set up and schedule the remote communication port for power conservation:
Select TF Remote – COM1 in the navigation tree.
Select the Schedule tab. Click Help to locate schedule parameter definitions.
Set required values and Click Send.
If RS-232 Modem was selected:
Select the Modem tab to set up modem parameters. Click Help to locate parameter
definitions.
Click Send after all values have been set.
Scroll area
Battery Voltage
14.3 VOLTS
A
D
L
C
L
Display
description
Annunciators
A1
A2
A7
A8
Alarm
codes
Value Units
