34 | XSE RI ES G5 | 210602 6MNAA

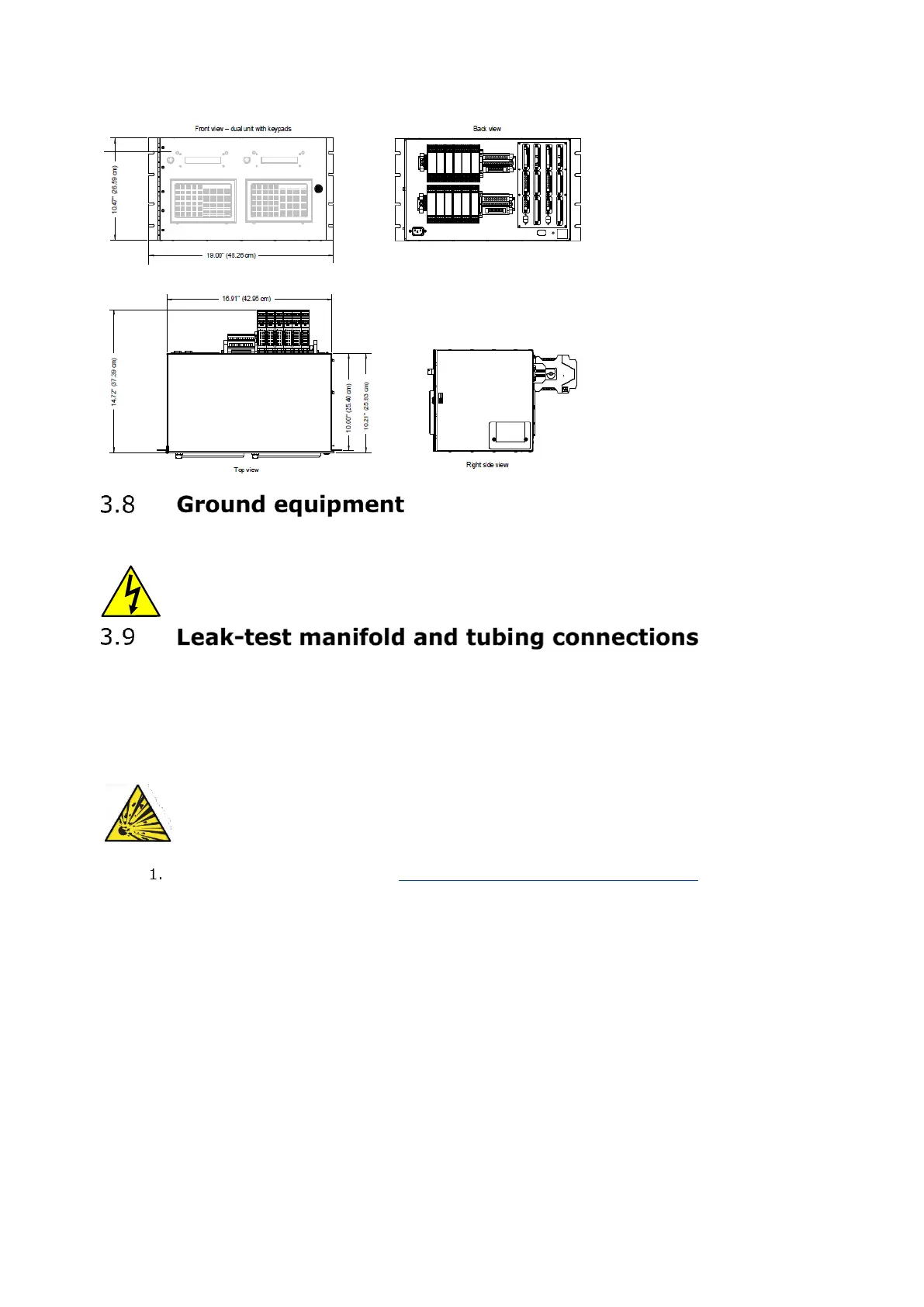

Figure 3-4: 6990 Rack mount enclosure
Refer to the requirements of national and local electrical codes for the location. The grounding lug is
located on the bottom front of the XFC
G5
or XRC
G5
enclosure.
WARNING – Bodily injury / Equipment damage: The equipment must be bonded to an earthing
terminal. The bonding conductor must have a cross sectional area of at least 12 AWG or 4mm2.
Manifold and tubing connections must be leak-tested before power application. Connection leaks
between the tap valves, the orifice, the manifold, and the XIMV can introduce measurement and
calibration errors.
Materials:
Liquid leak detector
Pressure calibration device
DANGER – Serious damage to health / risk to life. Manifold and tubing connection leaks
could create a build-up of explosive gases. Do not apply power before the tubing and
connections are leak-free, and explosive gases have dissipated.
Open the equalizer valves (see Figure 3-5: XFCG5 with XIMV and 5-valve manifold items 1
and 3) and close the manifold vent valve (item 2).
