138 | XSE RIES G5 | 21060 2 6MN AA
Click Send.
Click the Calibrate icon on the PCCU toolbar (the Calibrate icon shows tools).
Click I/O Interface on the navigation tree.
Repeat the calibration procedure in section 11.5.2 Set the AI to the correct input signal
mode
XSeriesG5 devices support voltage or current input signals from external devices. Before
proceeding with the calibration or restoring power to the device, make sure you set the
correct AI mode.
To set the AI input signal mode:

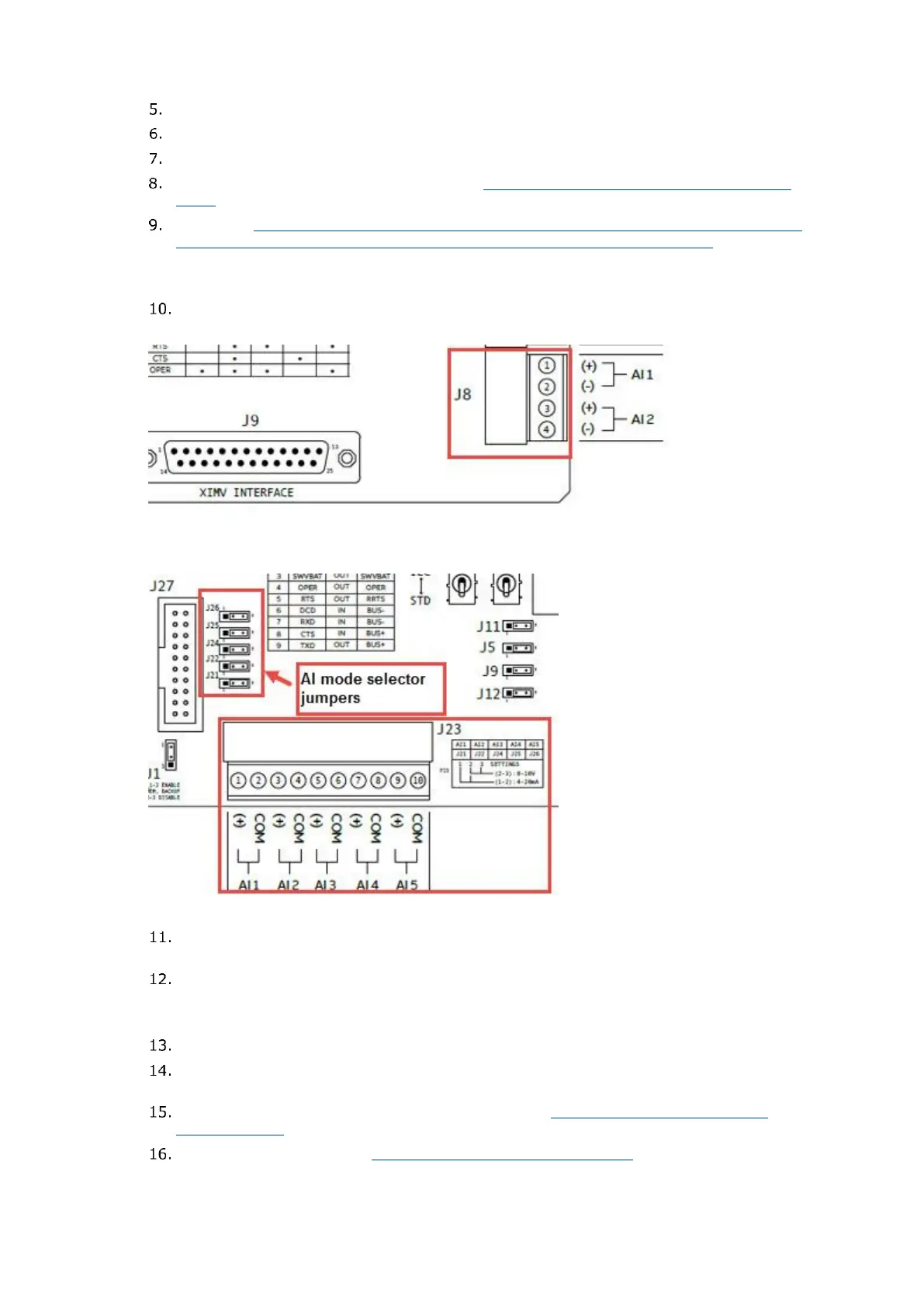

Locate the AIs (XFC: J8, XRC: J23).
Figure 11-4: XRCG5 AIs
Figure 11-5: XRCG5 AIs and mode selector jumpers (default setting)
To set the AI to voltage mode:
If calibrating on the XFC: AIs support voltage mode by default. Ensure that there are no
external resistors connected across the AI pins.
If calibrating on the XRC: Verify that the mode selector jumper (J21, J22, J24, J25 or J26)
is across pins 2 and 3 for the selected AI.
To set the AI to current mode:
If calibrating on the XFC: Insert a precision resistor across the selected AI pins.
If calibrating on the XRC: Place the mode selector jumper (J21, J22, J24, J25 or J26)
across pins 1 and 2 for the selected AI.
Analog input calibration (voltage mode), and section 11.5.4 Analog input calibration
(current mode).
Repeat the steps in section 11.5.5 Verify analog input calibration.
