CELL-DYN
®
3200 System Operator’s Manual
5-141
9140181H—October 2001
Section 5 Operating Instructions

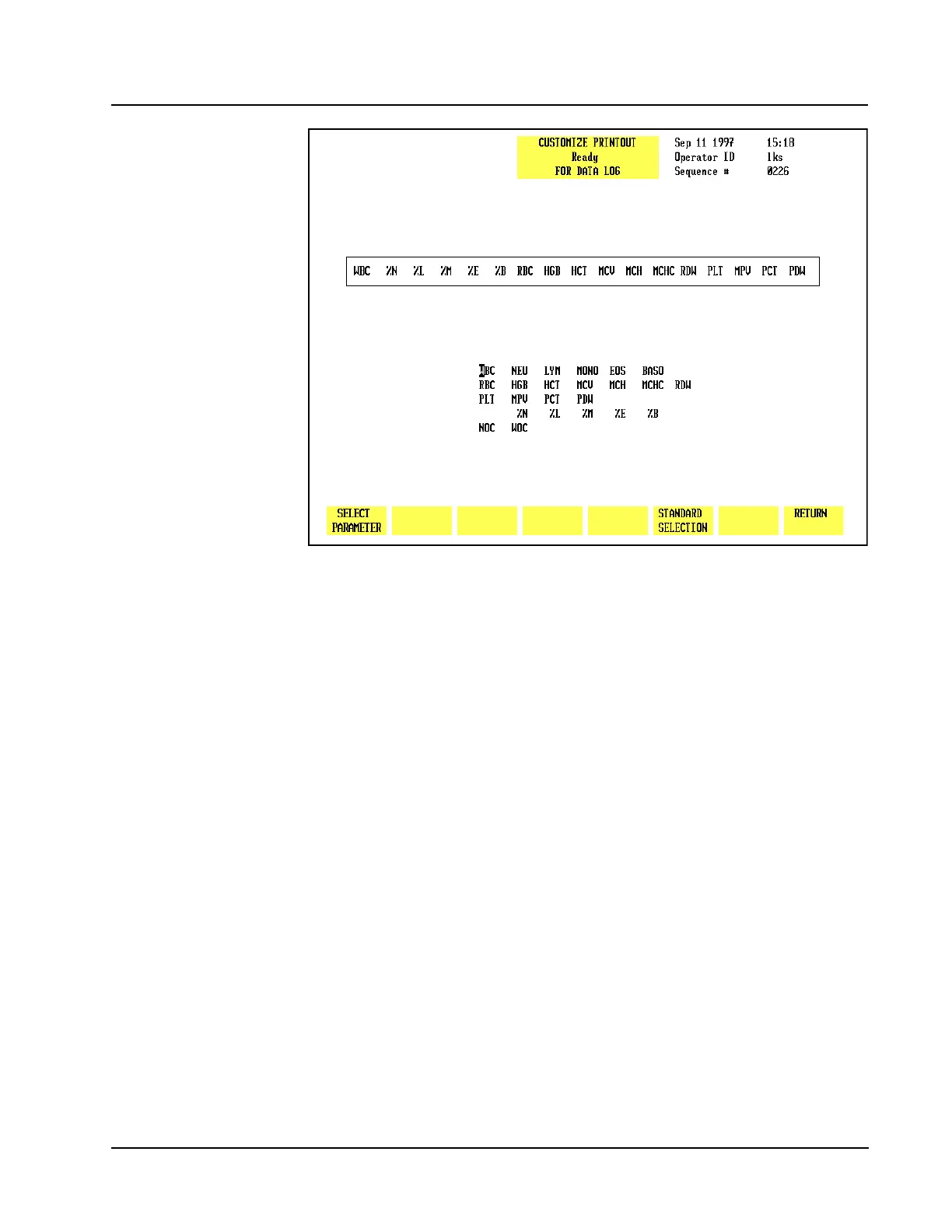

Figure 5.55 Customize Printout for Data Log Screen Showing Customized Print
Group
Customizing the Printout
The CUSTOMIZE PRINTOUT FOR DATA LOGscreen (see Figure 5.55) shows the
group of parameters that will be printed on a Data Log printout. A list of the
available parameters is displayed under the group. The parameters are selected
from the list and placed in the desired position to customize the printout. In addition
to the usual Hematologic parameters, the following parameter may also be printed
in the Data Log:
NOC — Nuclear Optical Count
To Next Page
