Replace Tubing in Normally Closed Valves
Replace Syringes
Replace Fuse
Prepare for Shipping or Extended Period of Non-Use
Clean Y Valve
Flow Panel Components

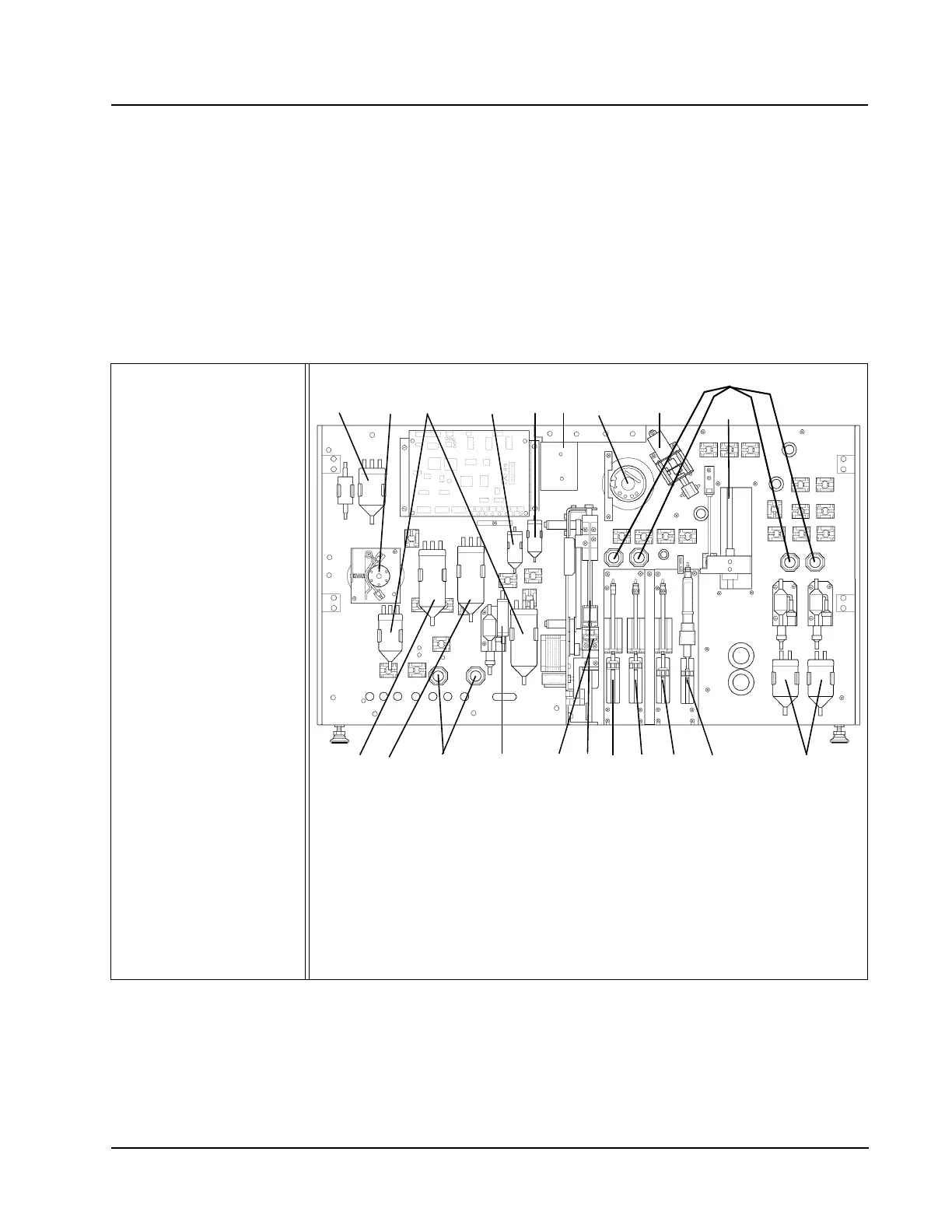

Figure 9.4 illustrates the Flow Panel components that may be inspected, cleaned,
or replaced during normal maintenance procedures.
Figure 9.4 Analyzer Flow Panel Components
1Vent
2 Sample Transfer
Peristaltic Pump
3 Waste Chambers
4 WBC Mixing Chamber
5 RBC Mixing Chamber
6 HGB Flow Cell
7 Shear Valve
8Y Valve
9 Open Sample Probe
(With Wash Block)
10 Normally Closed
Valves
11 Diluent Reservoir
12 Sheath Reservoir
13 Normally Closed
Valves
14 Diluent/Sheath Filter
15 Tube Spinner
16 Closed Sample
Needle (With Wash
Block)
17 Sample Injection
Syringe
18 HGB Lyse Syringe
19 WBC Lyse Syringe
20 Diluent/Sheath
Syringe
21 Waste Chambers
123
7
8
10
9
45
6
11
12 13 14 15 17 18 19 20 2116
