Solenoid Operation
This key should be used only by an authorized Abbott representative. The system
must be initialized after this key is pressed.

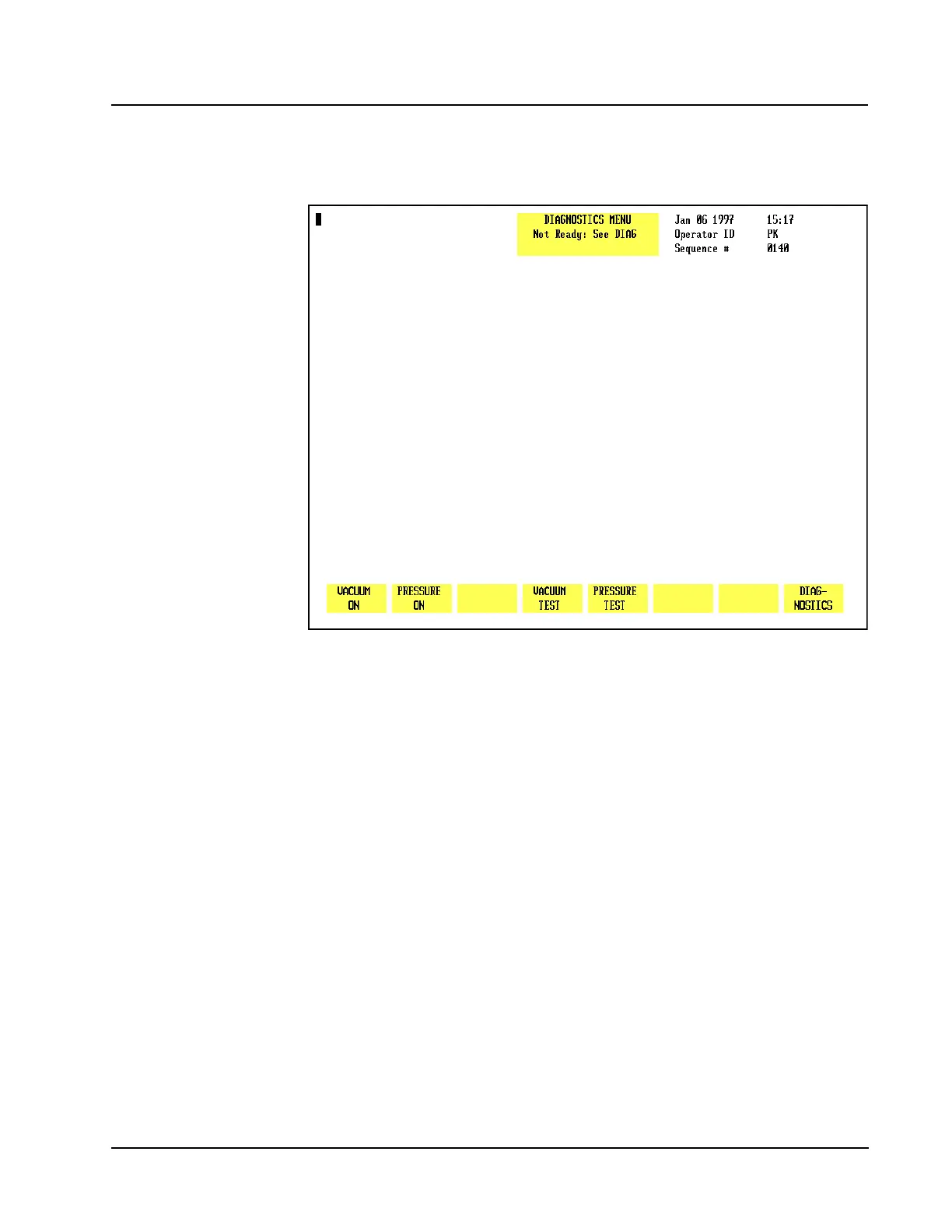

Figure 10.10 Pump Operation Screen
Pump Operation
When the [PUMP OPERATION] key is pressed, the following soft key labels (see
Figure 10.10) are displayed:
VACUUM ON/
VACUUM OFF (The key label alternates between the selections.)
PRESSURE ON/
PRESSURE OFF (The key label alternates between the selections.)
INHIBIT PUMPS/
ENABLE PUMPS (Displayed when VACUUM or PRESSURE keys
are pressed.)
VACUUM TEST
PRESSURE TEST
DIAGNOSTICS
