6.5 External Trigger Terminal (TRIGGER IN) (7352A)
6-10
6.5 External Trigger Terminal (TRIGGER IN) (7352A)
This instrument can be triggered by inputting a negative logic pulse from the external trigger terminal (TRIG-
GER IN) on the rear panel.
Select EXTernal as the trigger source when using this terminal.
Input the TTL level or contact signal as a trigger signal.

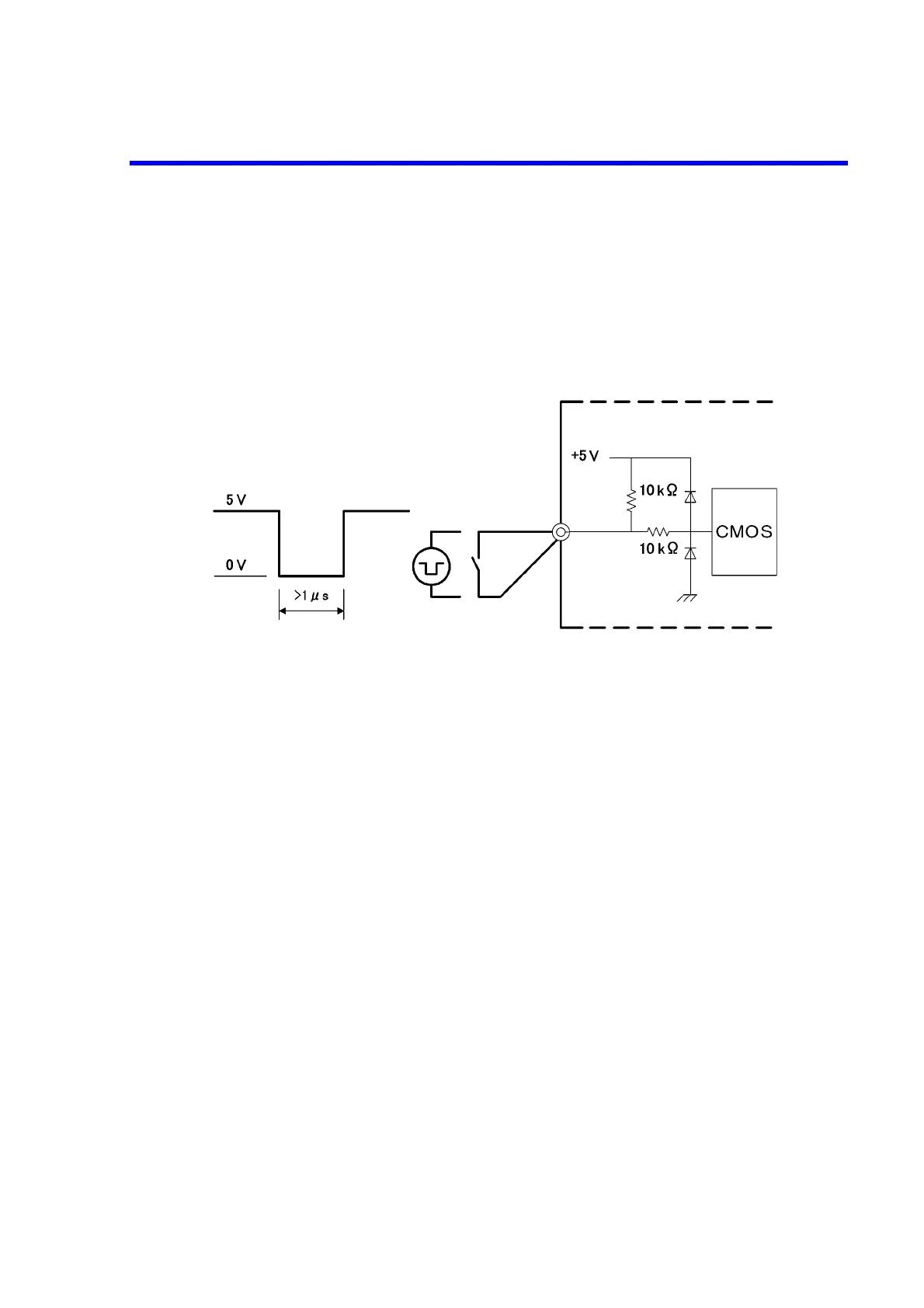

Figure 6-1 Simple Equivalent Circuit of Trigger Input Terminal
Trigger signal
TTL level or contact signal
