5.8 Trigger Function
5-18
5.8 Trigger Function
The trigger system of this instrument allows trigger detection, the sampling start to be delayed, and multiple
samplings per trigger.

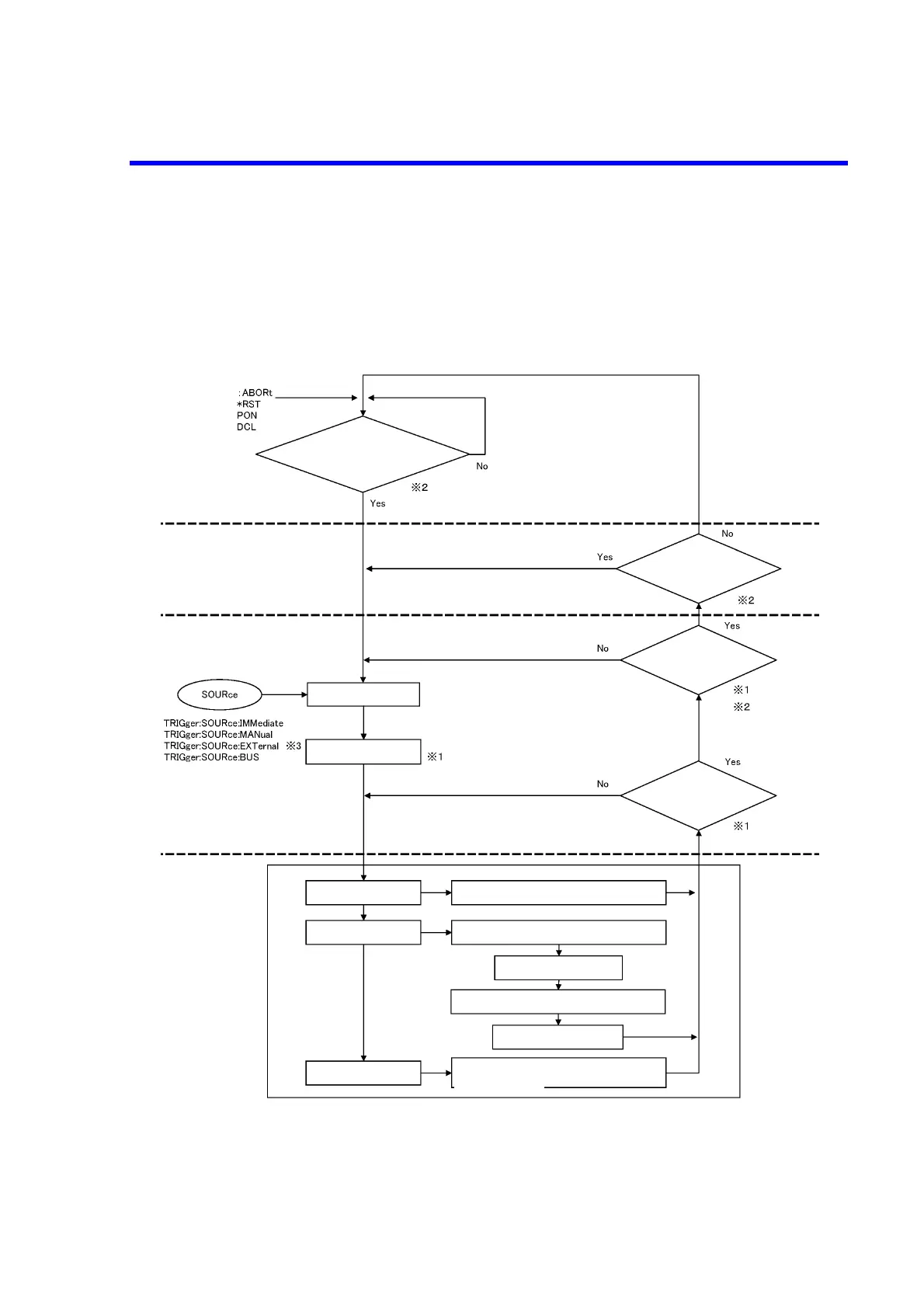

Figure 5-5 shows the trigger model.
Figure 5-5 Trigger Model
INITiate state
IDLE state
TRIGger waiting state
Device action
*1: This process is PASS (Always “Yes”) for IMMediate.
*2: This process is PASS (Always “Yes”) for LOCAL.
*3: TRIGger:SOURce:EXTernal can be used for the 7352A only.
INIT or
INIT:CONT?=ON
TRIGger:COUNt
Terminate?
INIT:CONT?=ON
SAMPle:COUNt
Terminate?
Detecting the event start
Waiting for
TRIGger:DELay
For the single
measurement
Device action for the left side display
(Measurement/Calculation/Output)
For the dual sequential
measurement
Function setting for
the right side display
Device action for the right side display
(Measurement/Calculation/Output)
Device action for the left side display
(Measurement/Calculation/Output)
For the dual synchronous
measurement
Function setting for
the left side display
Device action for the left side display (Measurement/
Calculation/Output)
Device action for the right side display (Measurement/
Calculation/Output)
