7352 Series Digital Multimeter Operation Manual
4.2.1 Measurement Functions
4-9

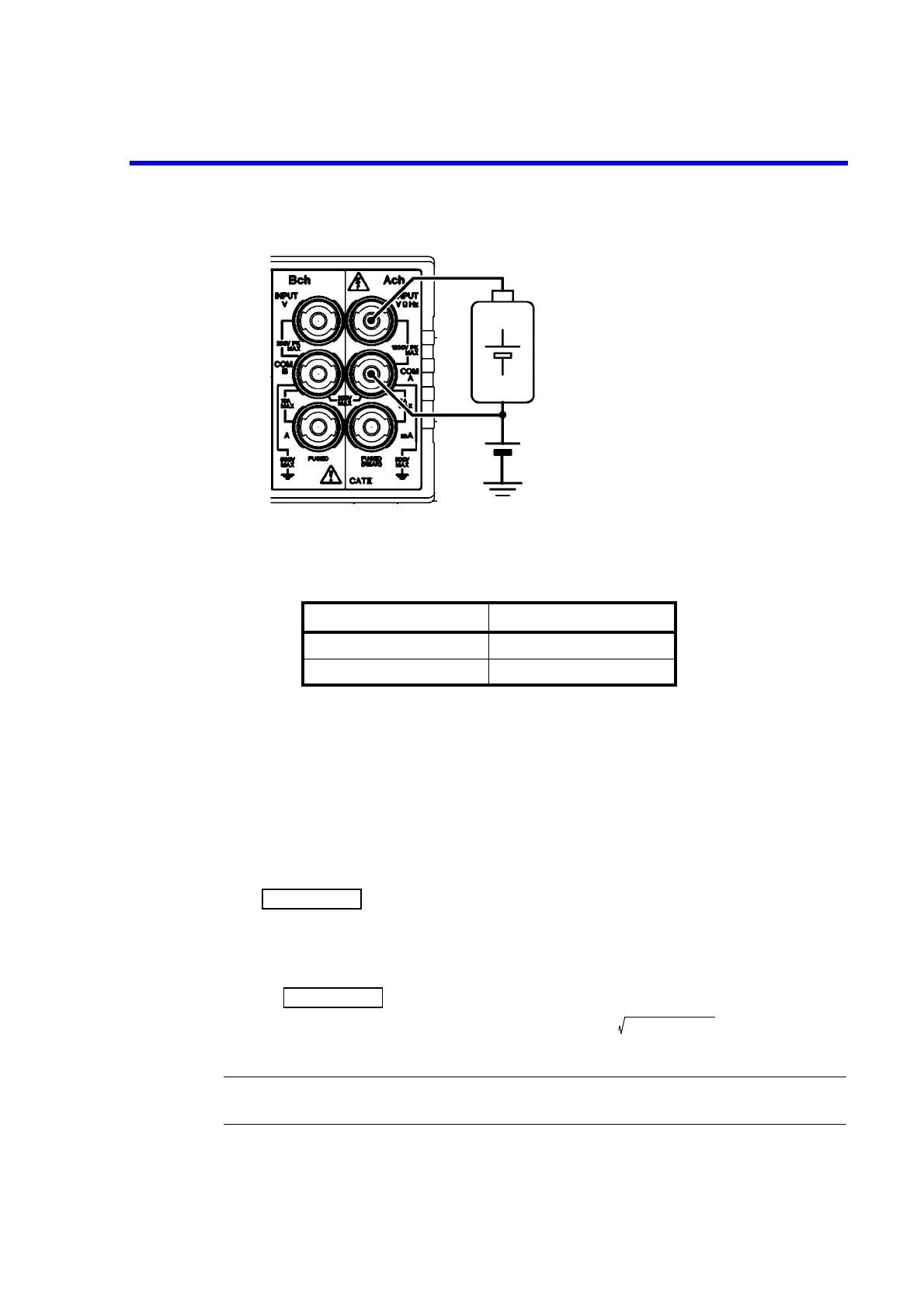

Figure 4-5 DC Voltage Measurement (DCV-Ach)
4.2.1.2 Ach AC Voltage Measurement (ACV-Ach and ACV(AC+DC)-Ach)
For an AC voltage superimposed on a DC voltage, select the ACV-Ach function that measures an effective
value of the AC voltage only, or the ACV(AC+DC)-Ach function that measures a root-mean-square value
of the AC and DC voltages.
1. Connect a DUT to the Ach COM and V terminals on the front panel.
Press .
The AC indicator is activated to show the AC coupling.
An effective value of the AC voltage with AC coupling is measured.
<ACV(AC+DC)-Ach measurement>
Re-press .
ACV and DCV are measured and the root-mean-square value ( ) is displayed.
The AC and DC indicators are activated to show the AC+DC coupling.
WARNING: Do not apply voltage that exceeds the maximum allowable applied voltage. Fire or electrical
shock due to the failure of this instrument may occur.
Table 4-2 Measurement Range and Input Impedance (DCV-Ach)
Measurement range Input impedance
200 mV, 2000 mV 1 G or more
20 V, 200 V, 1000 V 10 M 1%
500 V or less
1000 Vpeak
To Next Page
