Chapter 2 - Robot Installation
24 Adept Viper s650/s850 Robot with MB-60R User’s Guide, Rev D

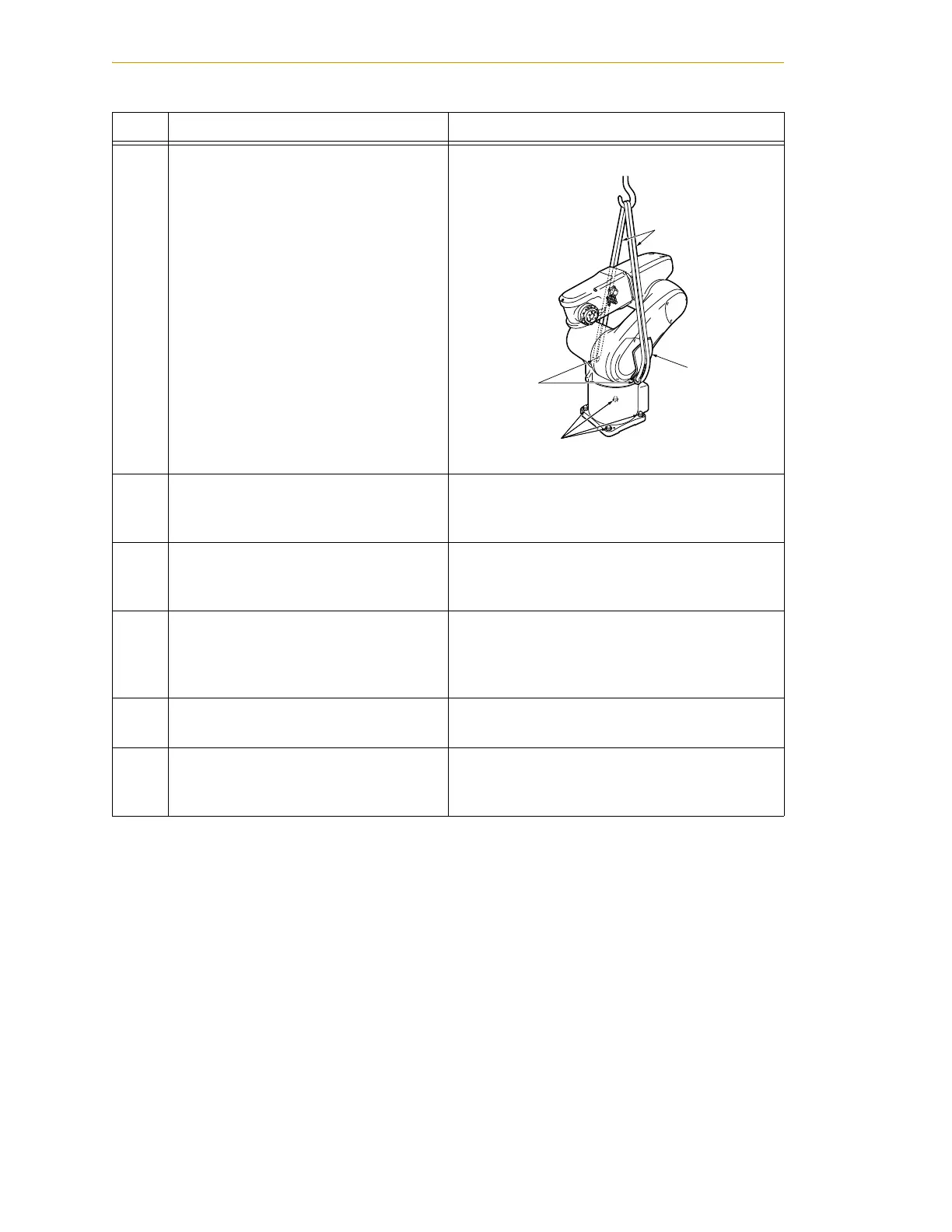

4 As shown at right, place a waste cloth
on the second axis and pass the wire
through the two eyebolts.
Note: Before transporting the robot,
check that the path to the mounting
location is free of obstacles.
5 Worker A: Remove the four bolts while
supporting the robot to prevent it from
tipping over.
6 Worker B: Operate the crane and
move the robot to the mounting
location.
7 Worker B: Put the robot down in the
mounting location.
Worker A: Temporarily secure the
robot base with four bolts.
8 Secure the robot according to the
instructions in Section on page 25.
9 Remove the eyebolts from the robot. Caution: Before running the robot, be sure to
remove the eyebolts. Otherwise, the robot arm
will strike these eyebolts.
Step Procedure Drawing
Waste Cloth
Robot Mounting
Bolts
Wire
(Belt sling)
Eyebolts
To Next Page
