Chapter 4 - System Installation
60 Adept Viper s650/s850 Robot with MB-60R User’s Guide, Rev D
NOTE: The AC power cable is not supplied with the system, but is
available in the optional Power Cable kit, see Table 4-1 on page 52.
Procedure for Creating 200-240 VAC Cable
1. Locate the AC mating connector shown in Table 4-7.
2. Open the connector by unscrewing the screw on the shell and removing the cover.
3. Loosen the two screws on the cable clamp. See Figure 4-5 on page 60.
4. Use 18 AWG wire to create the AC power cable. Select the wire length to safely
reach from the user-supplied AC power source to the MB-60R base.
5. Strip approximately 18 to 24 mm of insulation from each of the three wires.
6. Insert the wires into the connector through the removable bushing.
7. Connect each wire to the correct terminal screw, and tighten the screw firmly.
8. Tighten the screws on the cable clamp.
9. Replace the cover and tighten the screw to seal the connector.
10. Prepare the opposite end of the cable for connection to the facility AC power
source.

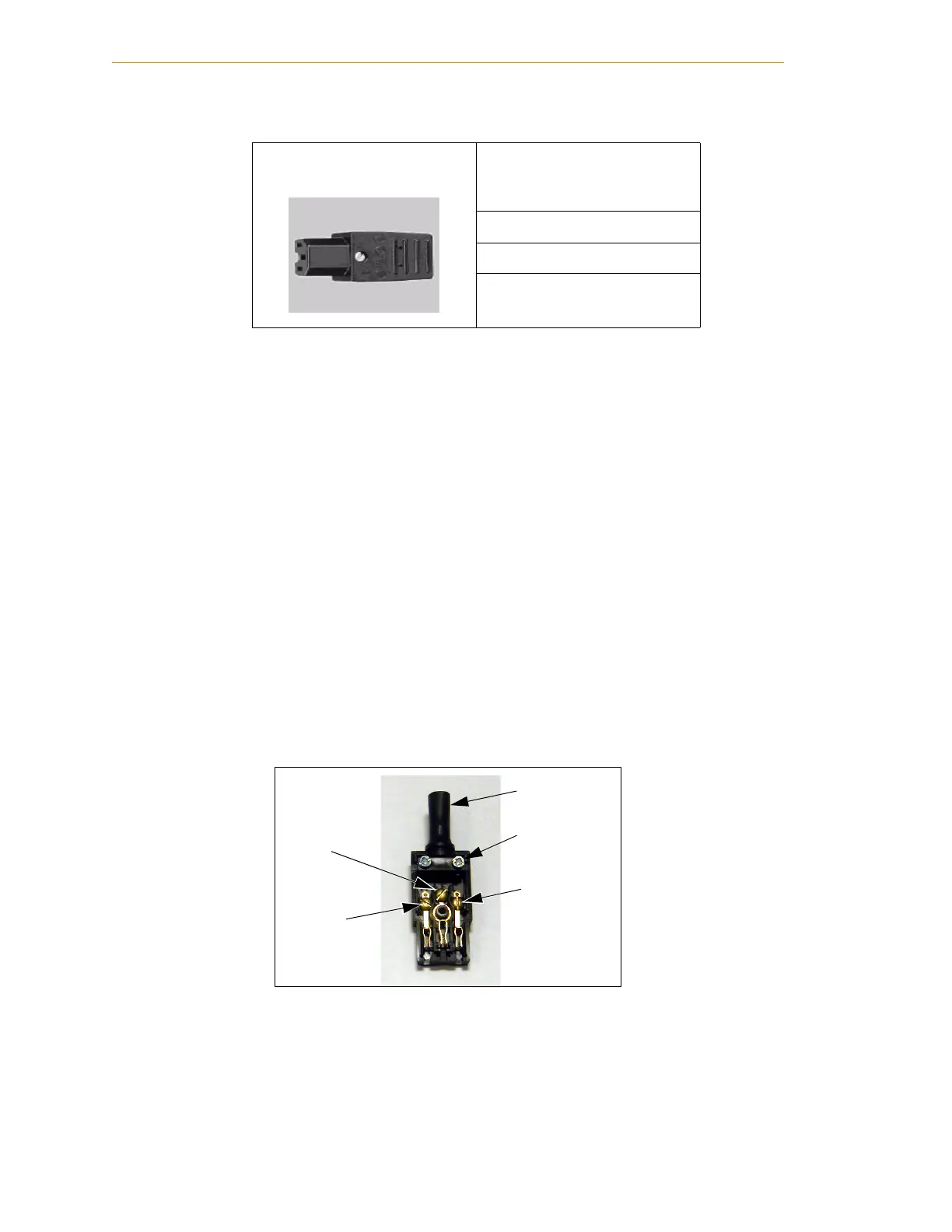

Figure 4-5. AC Power Mating Connector
Table 4-7. AC Mating Connector Details
AC Connector details AC in-line power plug,
straight, female, screw
terminal, 10 A, 250 VAC
Qualtek P/N 709-00/00
Digi-Key P/N Q217-ND
Neutral
Earth
Line
Removable
Bushing
Cable
Clamp
