Chapter 9 - Cleanroom Option

88 Adept Viper s650/s850 Robot with MB-60R User’s Guide, Rev D

Robot Connector Panel

For the Cleanroom robot, the robot connector panel is different than the standard robot.

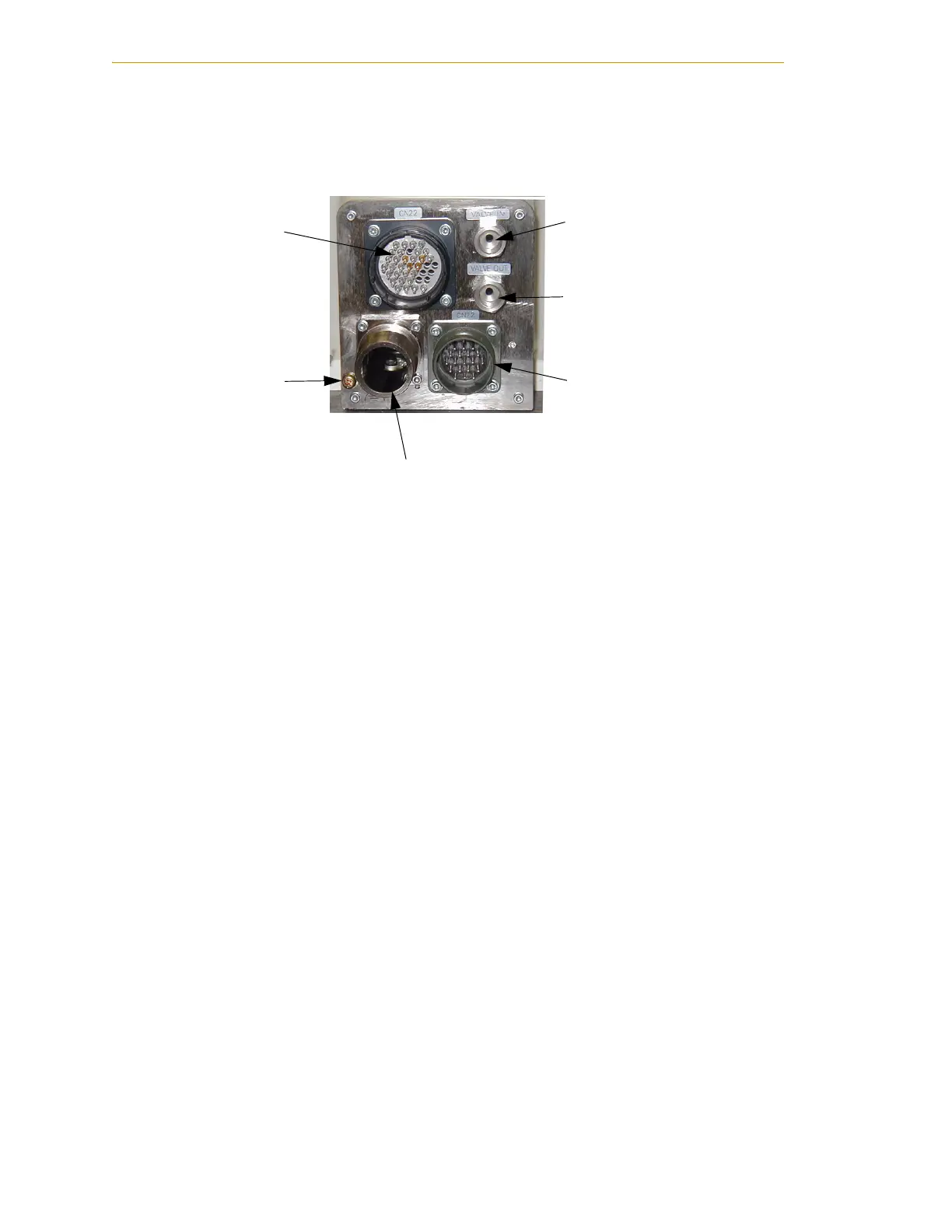

Figure 9-2. Cleanroom Robot Connector Panel

See Table 9-1 on page 87 for the recommended vacuum flow rate.

Vacuum Connection,

OD Ø 32, ID Ø 25

Valve In

Air Intake for

Solenoids

(1/4” BSPT)

CN20

CN22

Ground

Te r m in a l

Valve Out

Exhaust from

Solenoids

(1/4” BSPT)
