Connecting 24 VDC Power to MB-60R Servo Controller
Adept Viper s650/s850 Robot with MB-60R User’s Guide, Rev D 55
NOTE: Fuse information is located on the MB-60R electronics.
The power requirements for the user-supplied power supply will vary depending on the
configuration of the robot and connected devices. Adept recommends a 24 V, 6 A power
supply to allow for startup current draw and load from connected user devices, such as
digital I/O loads.
Details for 24 VDC Mating Connector
The 24 VDC mating connector and two pins are supplied with each system. They are
typically shipped in the cable/accessories box.
CAUTION: Make sure you select a 24 VDC power supply
that meets the specifications in Table 4-2. Using an
underrated supply can cause system problems and
prevent your equipment from operating correctly. See the
following table for recommended power supplies.
Table 4-3. Recommended 24 VDC Power Supplies
Vendor Name Model Ratings
XP Power JPM160PS24 24 VDC, 6.7 A, 160 W
Mean Well SP-150-24 24 VDC, 6.3 A, 150 W
Astrodyne ASM150-24 24 VDC, 6.66 A, 150 W

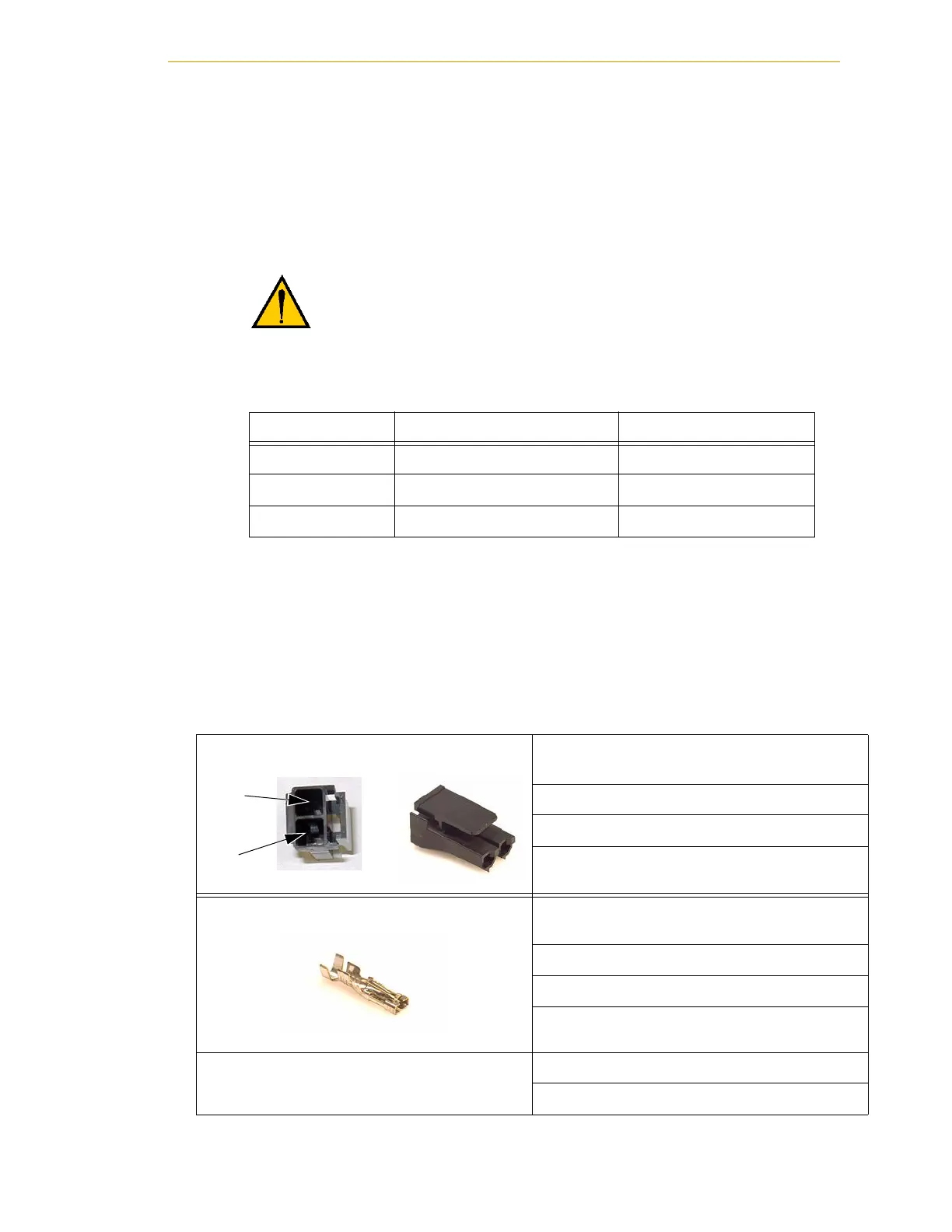

Table 4-4. 24 VDC Mating Connector Specs
Connector Details Connector receptacle, 2 position, type:
Molex Saber, 18 A, 2-Pin
Molex P/N 44441-2002
Digi-Key P/N WM18463-ND
Pin Details Molex connector crimp terminal,
female, 14-18 AWG
Molex P/N 43375-0001
Digi-Key P/N WM18493-ND
Recommended crimping tool, Molex Hand
Crimper
Molex P/N 63811-0400
Digi-Key P/N WM9907-ND
