Mounting the MB-60R
Adept Viper s650/s850 Robot with MB-60R User’s Guide, Rev D 49
3.7 Mounting the MB-60R
The MB-60R can be panel-mounted.
NOTE: The mounting of the MB-60R and all terminations at the MB-60R
must be performed in accordance with all local and national standards.
Panel-Mounting the MB-60R

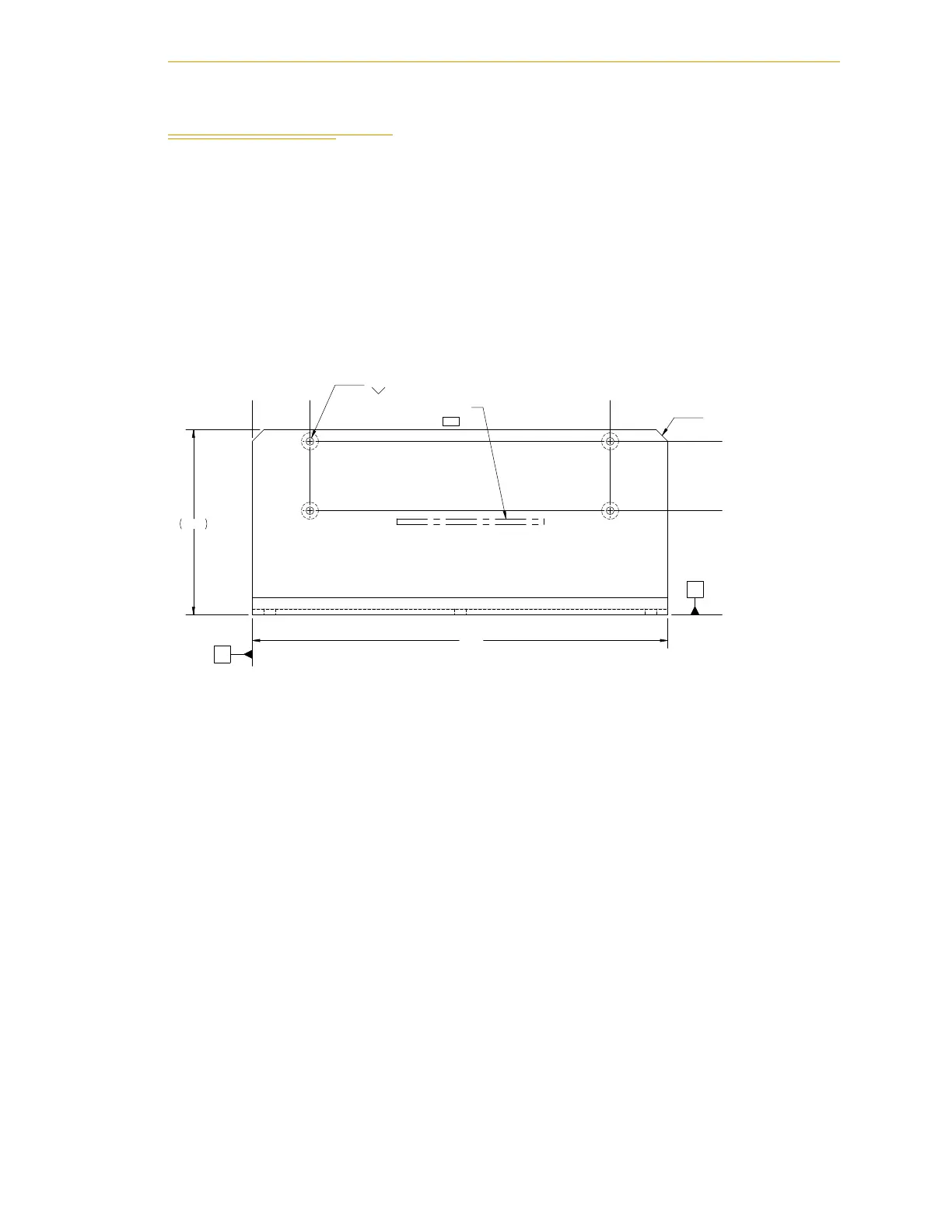

To panel-mount the MB-60R, install two brackets on each side at the rear of the unit (see
the following figure for the bracket dimensions). Use the screws from the accessories kit.
Figure 3-9. Panel-Mounting the MB-60R
0 1.250 7.750
0
2.250
3.750
9.00
.25 .25
X
4.00
Ø .370
X 90°, FARSIDE
4X Ø .169 THRU ALL
ON FARSIDE
1
C
B
TYP.CHAMFER
