adept technology Viper s650 User Manual

Using Digital I/O on MB-60R XIO Connector
Adept Viper s650/s850 Robot with MB-60R User’s Guide, Rev D 47

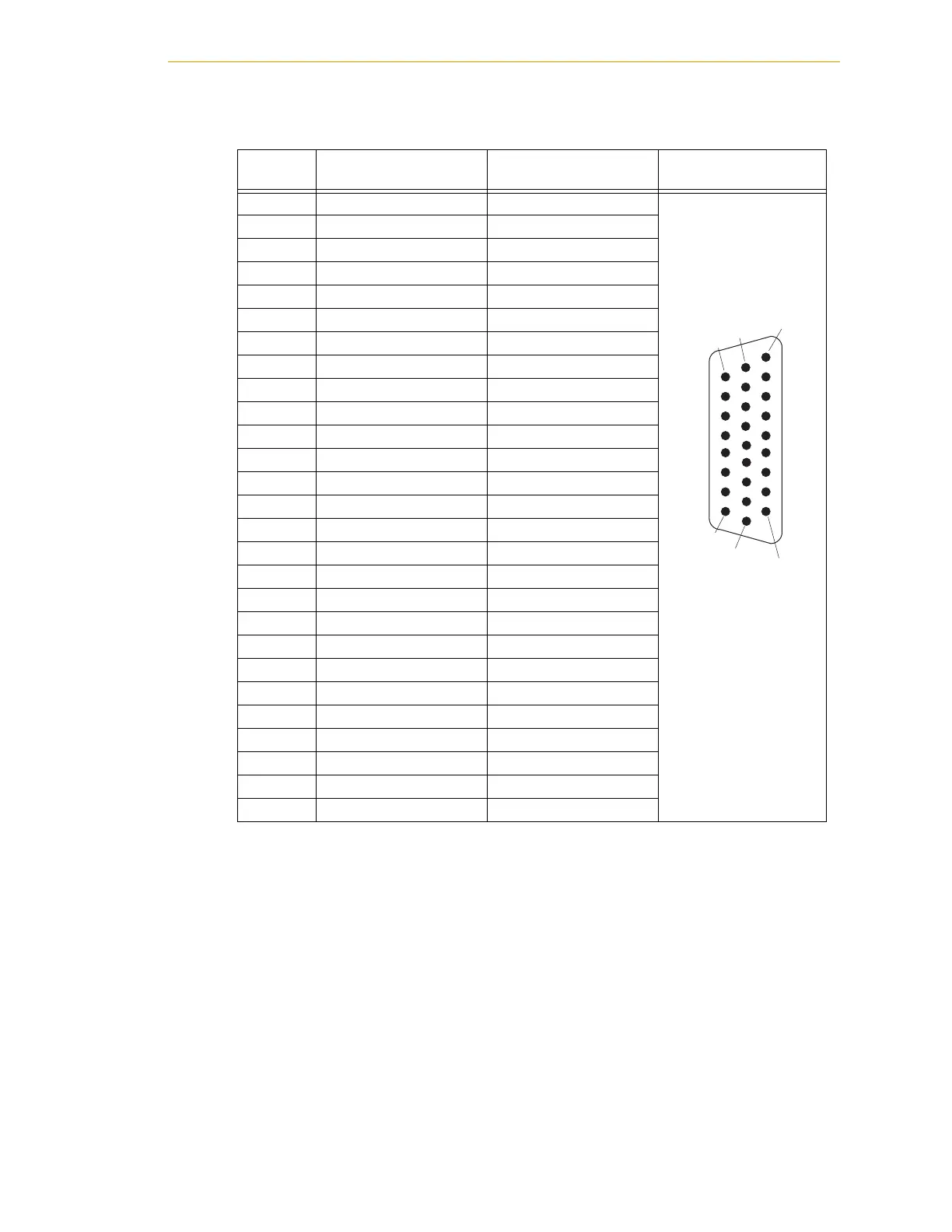

Table 3-9. XIO Breakout Cable Wire Chart
Pin No.
Signal
Designation Wire Color Pin Locations
1GND White
26-pin male
connector on XIO
Breakout Cable
224 VDC White/Black
3 Common 1 Red
4 Input 1.1 Red/Black
5 Input 2.1 Yellow
6 Input 3.1 Yellow/Black
7 Input 4.1 Green
8 Input 5.1 Green/Black
9 Input 6.1 Blue
10 GND Blue/White
11 24 VDC Brown
12 Common 2 Brown/White
13 Input 1.2 Orange
14 Input 2.2 Orange/Black
15 Input 3.2 Gray
16 Input 4.2 Gray/Black
17 Input 5.2 Violet
18 Input 6.2 Violet/White
19 Output 1 Pink
20 Output 2 Pink/Black
21 Output 3 Light Blue
22 Output 4 Light Blue/Black
23 Output 5 Light Green
24 Output 6 Light Green/Black
25 Output 7 White/Red
26 Output 8White/Blue
Shell Shield
Pin 9
Pin 1
Pin 18
Pin 10
Pin 19
Pin 26
