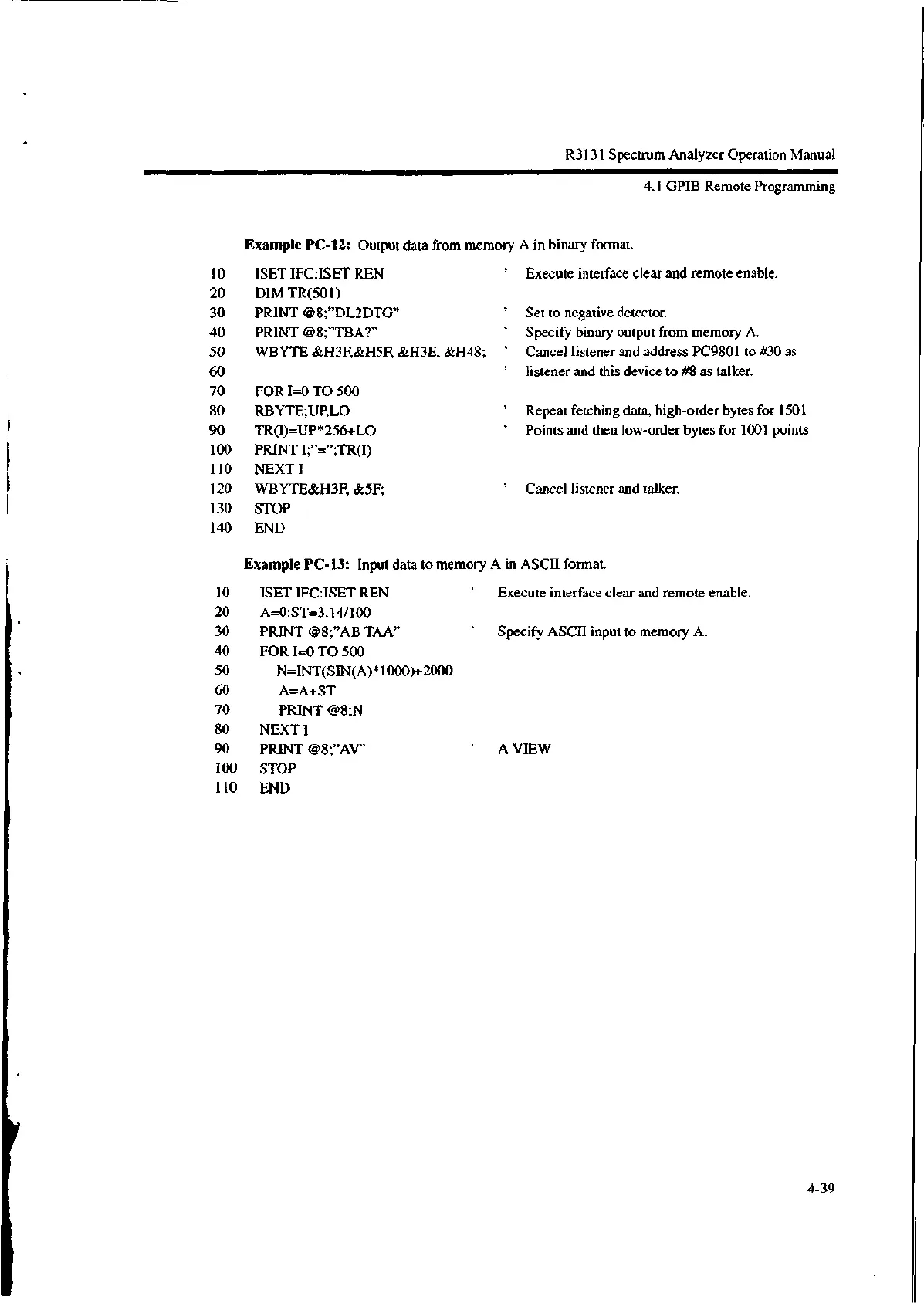

R3131 Spectrum Analyzer Operation Manual
4.1 GPIB Remote Programming
Example PC-12: Output data from memory A in binary format.
10
ISET IFC:ISET REN
Execute interface clear and remote enable.
20 DIM TR(501)
30 PRINT @8;"DL2DTG"
Set to negative detector.
40
PRINT @8;"TBA?"
Specify binary output from memory A.
50 WBYTE &H3F,&HSF, &H3E, &H48;
Cancel listener and address PC9801 to #30 as
60
listener and this device to #8 as talker.
70
FOR I=0 TO 500
80 RBYTE;UP,LO
Repeat fetching data, high-order bytes for 1501
90 TR(I)=UP*256+LO
Points and then low-order bytes for 1001 points
100
PRINT I;"=";TR(I)
110 NEXT I
120
WBYTE&H3F, &5F;
Cancel listener and talker.
130
STOP
140
END
Example PC-13: Input data to memory A in ASCII format.
10
ISET IFC:ISET REN
Execute interface clear and remote enable.
20
A=0:ST=3.14/100
30
PRINT @8;"AB TAA"
' Specify ASCII input to memory A.
40
FOR I=0 TO 500
50
N=INT(SIN(A)*1000)+2000
60
A=A+ST
70
PRINT @8;N
80
NEXT I
90
PRINT @8;"AV" ' A VIEW
100 STOP
110
END
