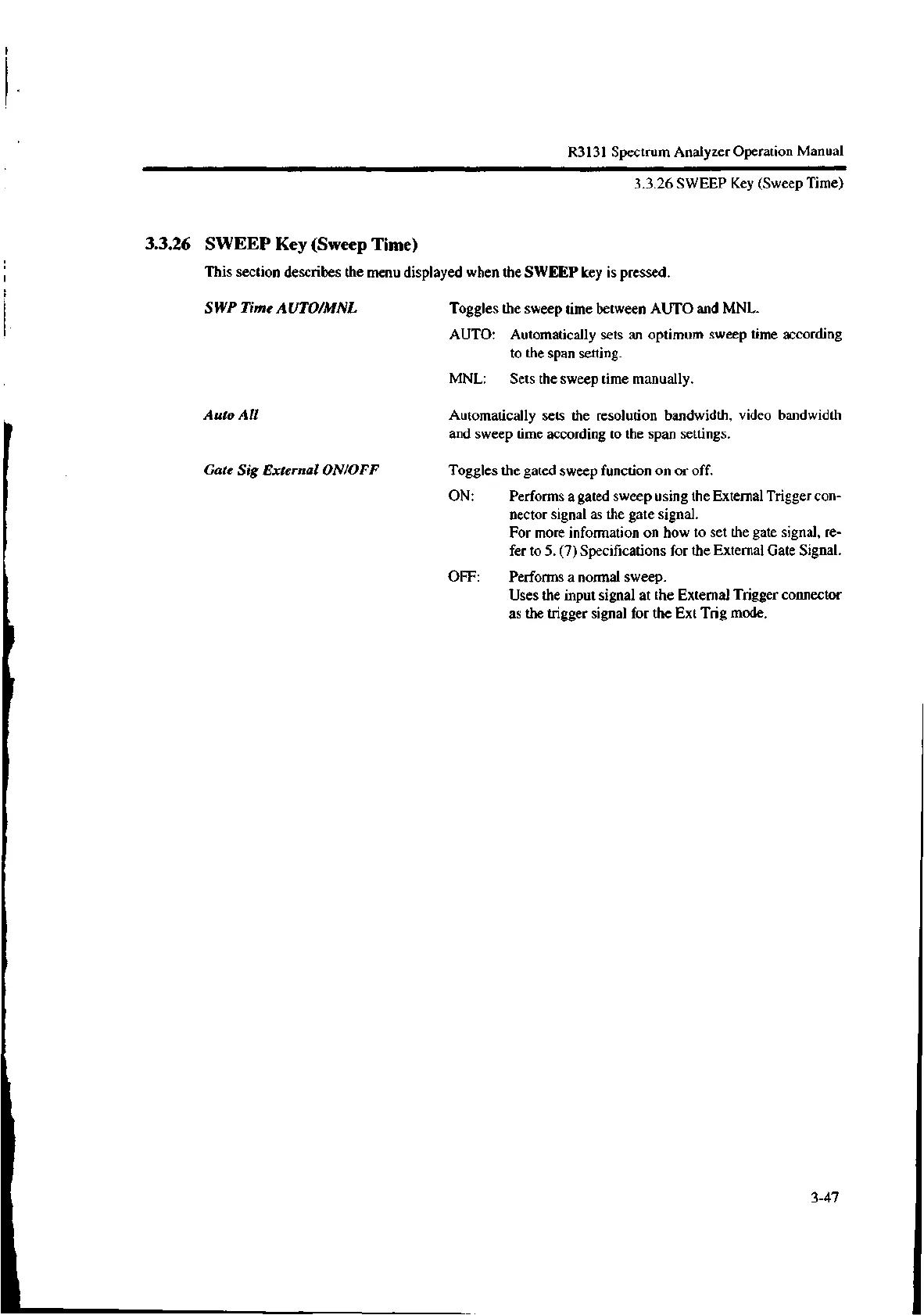

R3131 Spectrum Analyzer Operation Manual
3.3.26 SWEEP Key (Sweep Time)
3.3.26 SWEEP Key (Sweep Time)
This section describes the menu displayed when the SWEEP key is pressed.
SWP Time AUTO/MNL Tog gles the sweep time between AUTO and MNL.
AUTO: Automatically sets an optimum sweep time according
to the span setting.
MNL: Sets the sweep time manually.
Auto All Automatically sets the resolution bandwidth, video bandwidth
and sweep time according to the span settings.
Gate Sig External ON/OFF Tog gles the gated sweep function on or off.
ON: Performs a gated sweep using the External Trigger con-
nector signal as the gate signal.
For more information on how to set the gate signal, re-
fer to 5. (7) Specifications for the External Gate Signal.
OFF: Performs a normal sweep.
Uses the input signal at the External Trigger connector
as the trigger signal for the Ext Trig mode.
3-47
