R3131 Spectrum Analyzer Operation Manual

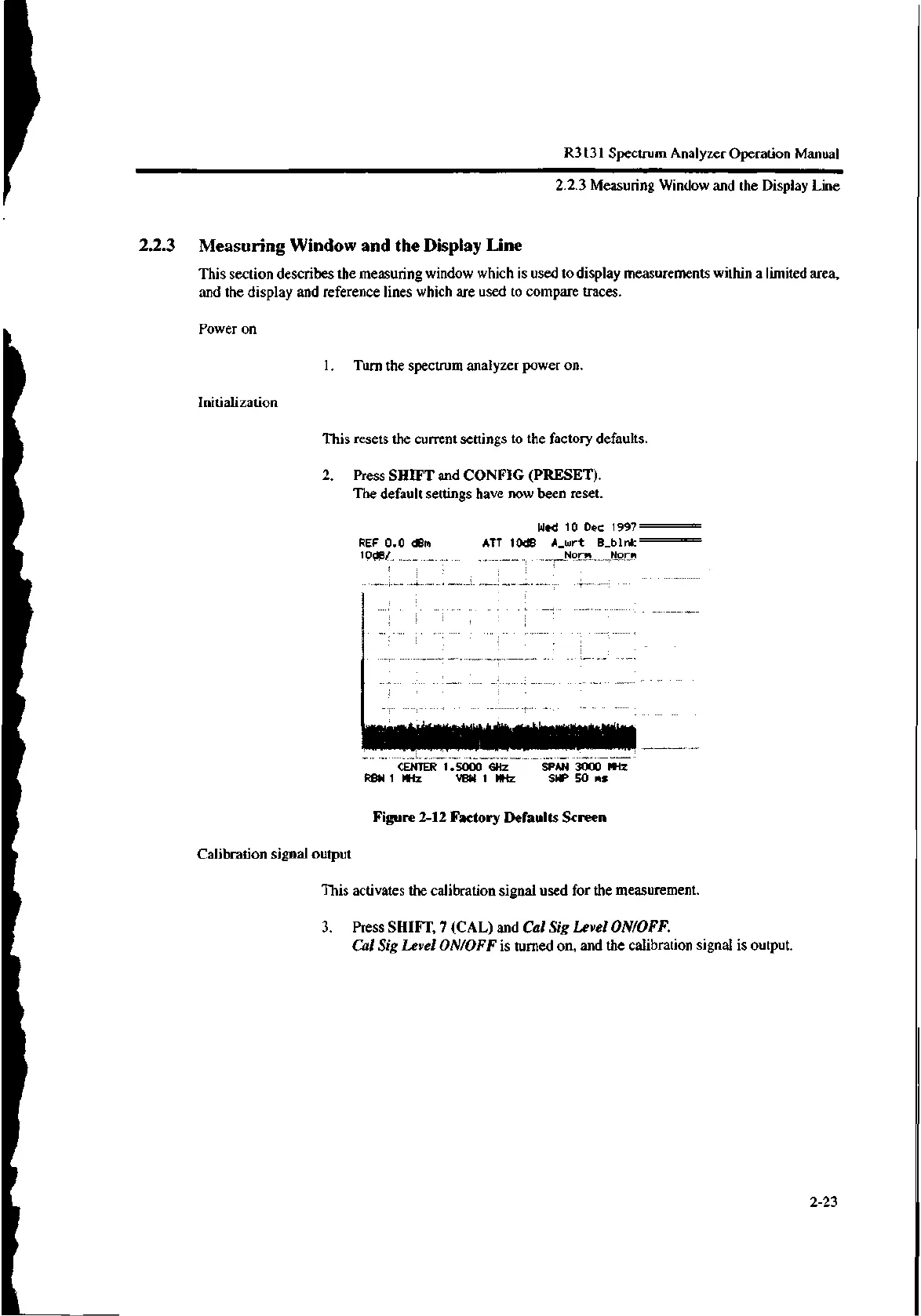

2.2.3 Measuring Window and the Display Line
2.2.3 Measuring Window and the Display Line
This section describes the measuring window which is used to display measurements within a limited area,
and the display and reference lines which are used to compare traces.
Power on
1. Turn the spectrum analyzer power on.
Initialization
This resets the current settings to the factory defaults.
2. Press SHIFT and CONFIG (PRESET).
The default settings have now been reset.
REF 0.0 dBm
10d81....__._....
Wed 10 Dec 1997
ATT 10dB A_wrt B_bink
Norm Norm
CENTER 1.5000 GHz
RBW 1 MHz VBW 1 MHz
SPAN 3000 MHz
SWP 50 ms
Figure 2-12 Factory Defaults Screen
Calibration signal output
This activates the calibration signal used for the measurement.
3. Press SHIFT, 7 (CAL) and Cal Sig Level ON/OFF.
Cal Sig Level ON/OFF is turned on, and the calibration signal is output.
2-23
