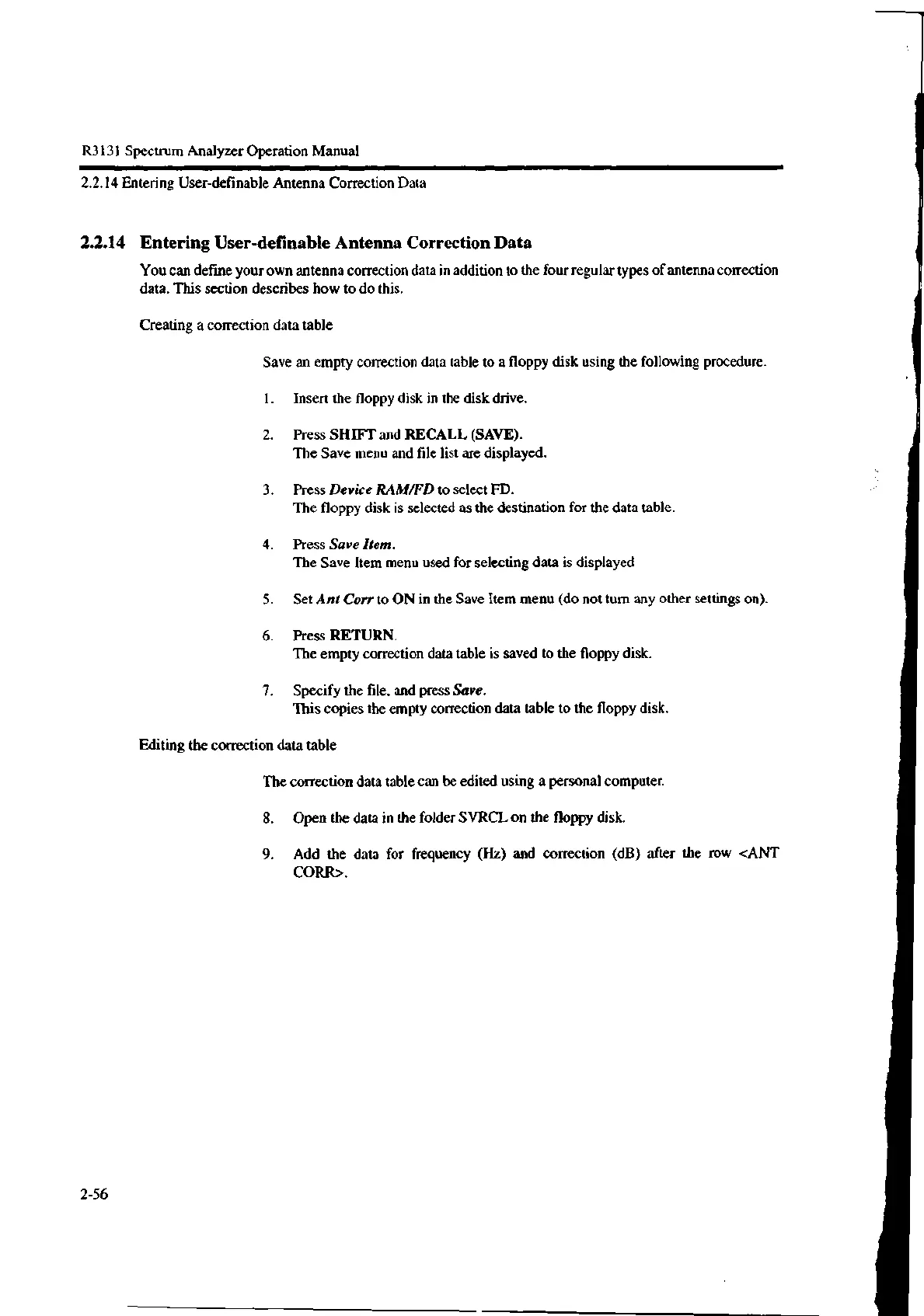

2.2.14 Entering User-definable Antenna Correction Data
2.2.14 Entering User-definable Antenna Correction Data
You can define your own antenna correction data in addition to the four regular types of antenna correction
data. This section describes how to do this.
Creating a correction data table
Save an empty correction data table to a floppy disk using the following procedure.
1. Insert the floppy disk in the disk drive.
2. Press SHIFT and RECALL (SAVE).
The Save menu and file list are displayed.
3. Press Device RAM/FD to select FD.
The floppy disk is selected as the destination for the data table.
4. Press Save Item.
The Save Item menu used for selecting data is displayed
5. Set Ant Corr to ON in the Save Item menu (do not turn any other settings on).
6. Press RETURN.
The empty correction data table is saved to the floppy disk.
7. Specify the file, and press Save.
This copies the empty correction data table to the floppy disk.
Editing the correction data table
The correction data table can be edited using a personal computer.
8. Open the data in the folder SVRCL on the floppy disk.
9. Add the data for frequency (Hz) and correction (dB) after the row <ANT
CORR>.
