R3131 Spectrum Analyzer Operation Manual
1.4 System Checkout
REF 0.0 dBm
10dB/
Wed 10 Dec 1997
ATT 10dB A_wrt B_blnk
Norm Norm
CENTER 1.5000 GHz
RBW 1 MHz VBW 1 MHz
SPAN 3000 MHz
SWP 50 ms

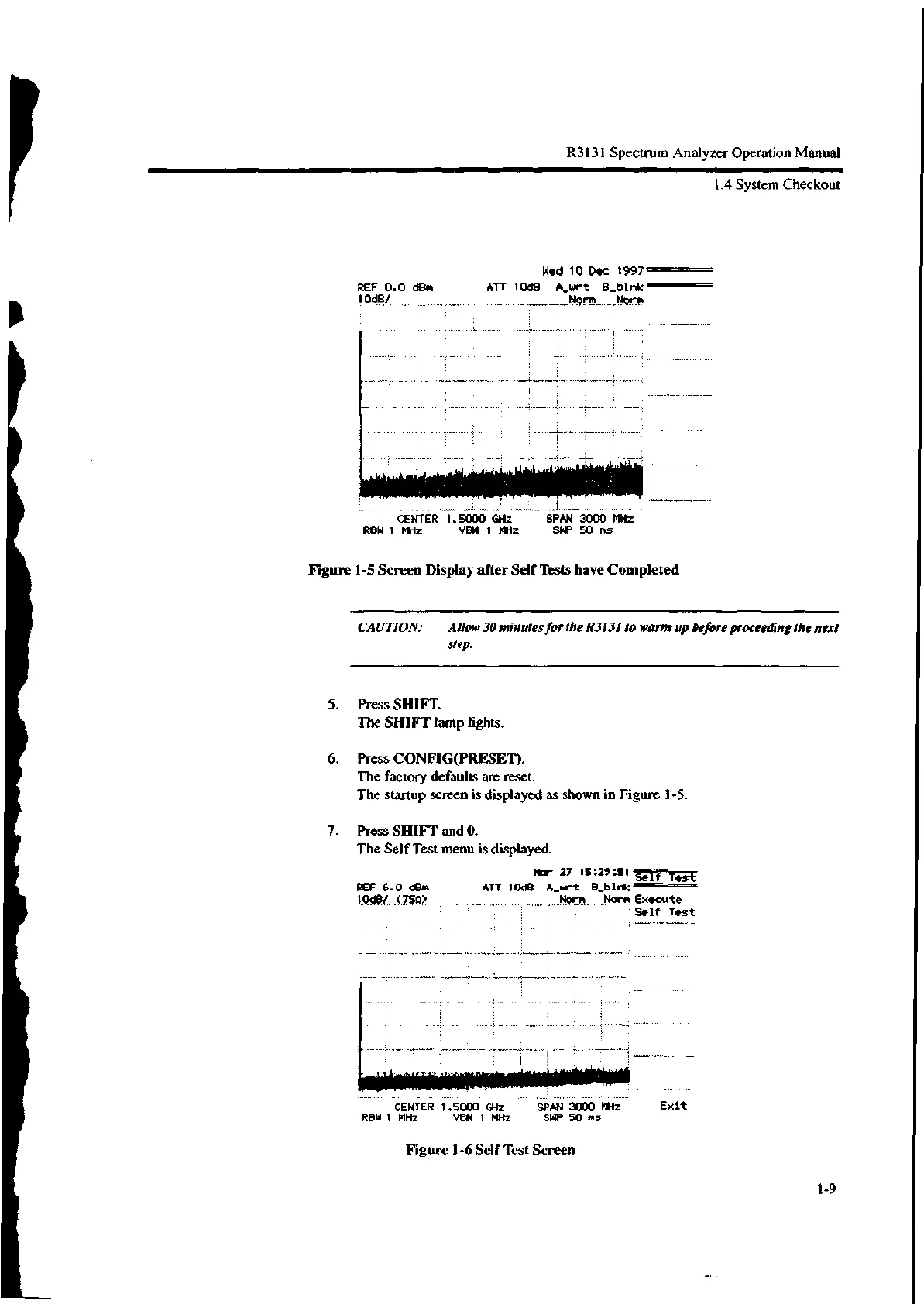

Figure 1-5 Screen Display after Self Tests have Completed
CAUTION: Allow 30 minutes for the R3131 to warm up before proceeding the next
step.
5. Press SHIFT.
The SHIFT lamp lights.
6. Press CONFIG(PRESET).
The factory defaults are reset.
The startup screen is displayed as shown in Figure 1-5.
7. Press SHIFT and 0.
The Self Test menu is displayed.
REF 6.0 dBm
10dB/ (750)
Mar 27 15.29.51 Self Test
ATT 10dB A_wrt B_blnk
Norm Norm Execute
Self Test
CENTER 1.5000 GHz
RBW 1 MHz VBW 1 MHz
SPAN 3000 MHz
SWP 50 ms
Figure 1-6 Self Test Screen
Exit
1-9
