R3131 Spectrum Analyzer Operation Manual

4.1 GPIB Remote Programming

• Status byte register

• Standard event register

• Standard operation status register

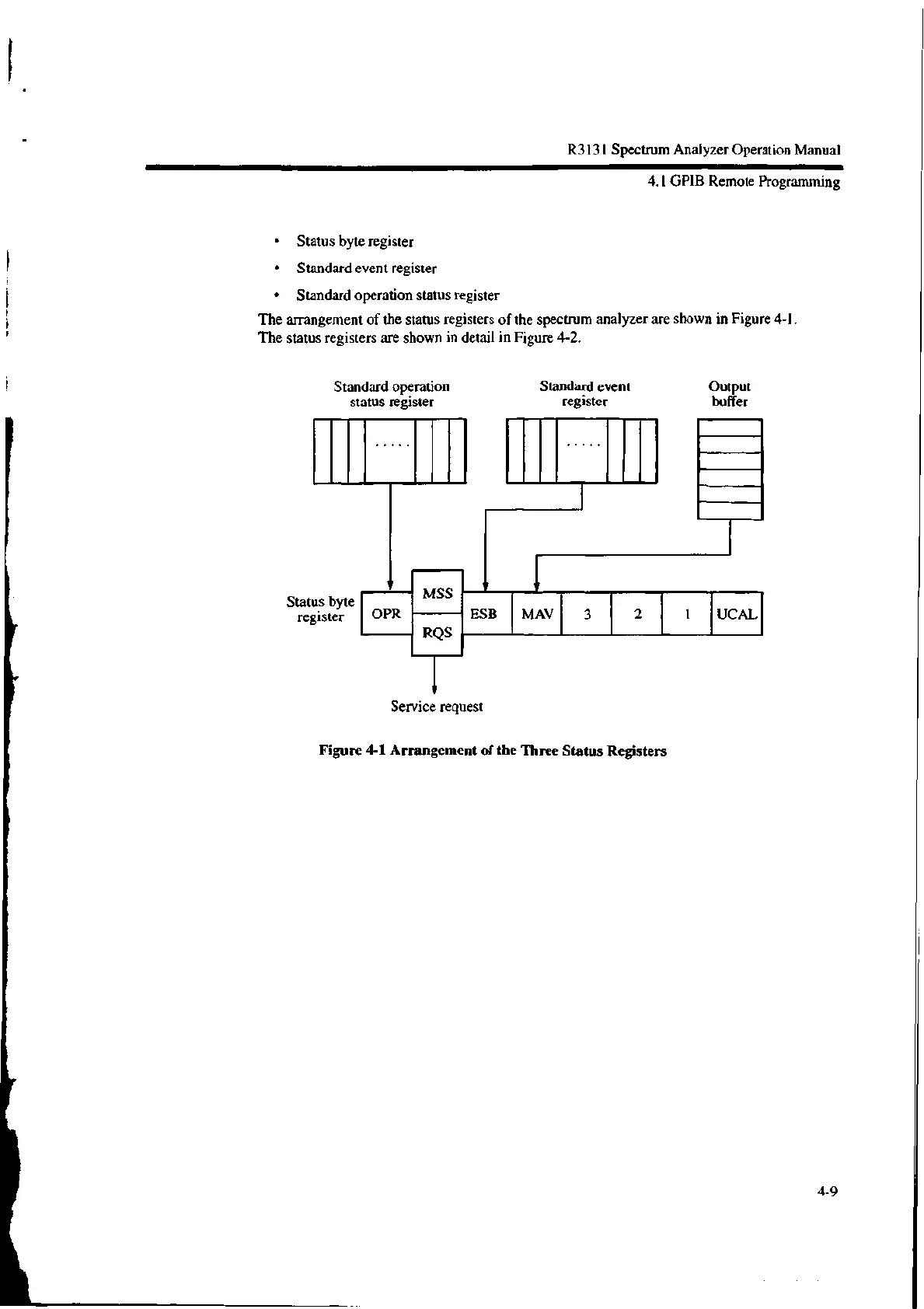

The arrangement of the status registers of the spectrum analyzer are shown in Figure 4-1.

The status registers are shown in detail in Figure 4-2.

Standard operation Standard event

status register register

Status byte

OPR

MSS

Output

buffer

RQS

ESB

MAV

2 1

UCAL

Service request

Figure 4-1 Arrangement of the Three Status Registers

4-9
