R3131 Spectrum Analyzer Operation Manual
2.4.4 Setting Date and Time
Setting the time
2-100
ADVANTEST R3131 Wed 10 Dec 1997 Time/bate
REF 0.0 dBm ATT 10dB A_wrt B_blnk
10dB/ Norm Norm
;DAY
# 10
Year
Month
Day
Hour
CENTER 30.00 MHz SPAN 20.00 MHz Date ModeMDH
ROW 300 kHz VOW 100 kHz SWP SO ms

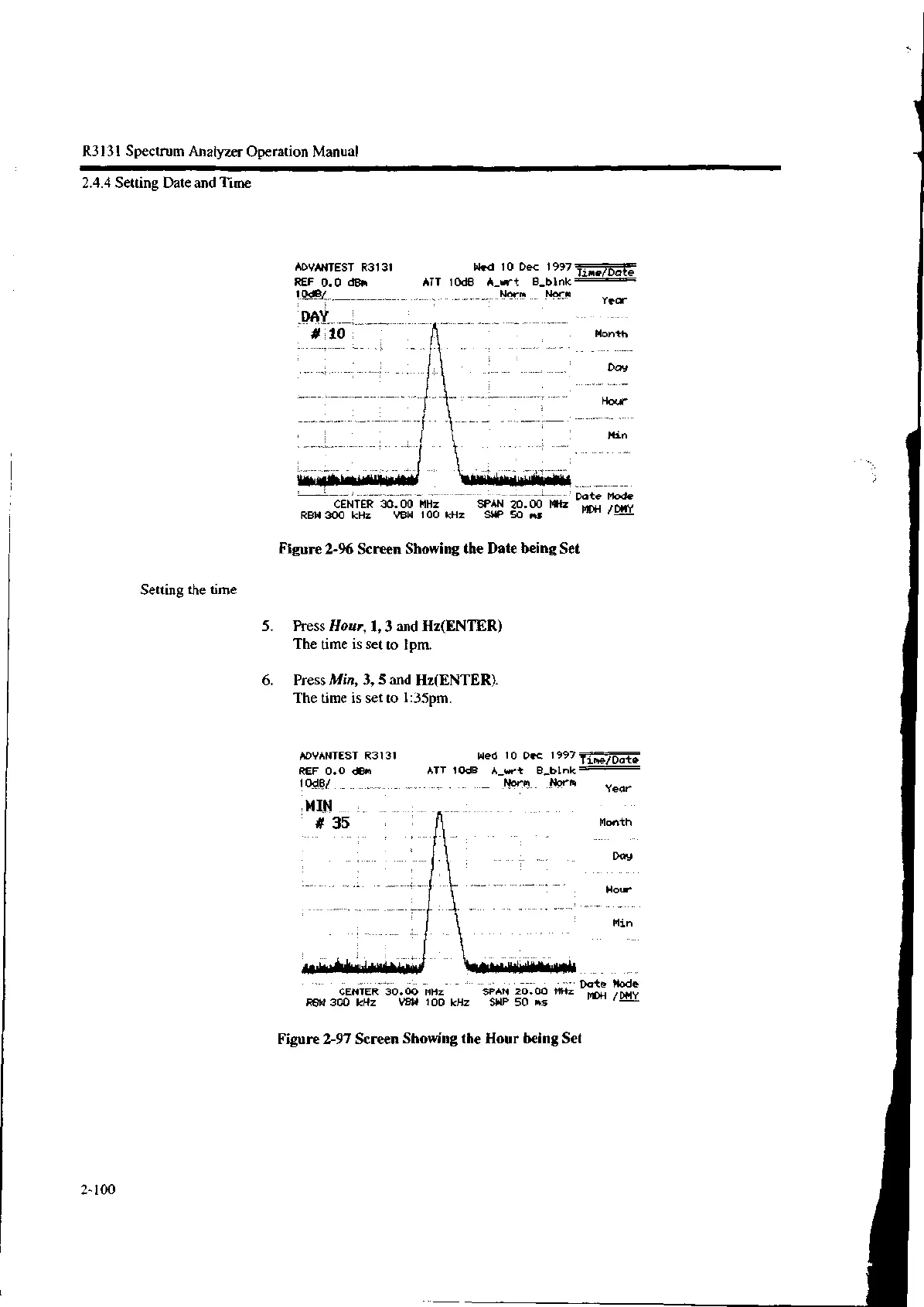

Figure 2-96 Screen Showing the Date being Set
Press Hour, 1, 3 and Hz(ENTER)
The time is set to 1pm.
6. Press Min, 3, 5 and Hz(ENTER).
The time is set to 1:35pm.
ADVANTEST R3131 Wed 10 Dec 1997 Time/Date
REF 0.0 dBm ATT 10dB A_wrt B_blnk
10dB/ Norm Norm Year
MIN
# 35 Month
Day
Hour
Min
--y-,
Date Mode
CENTER 30.00 MHz SPAN 20.00 MHz MDH /DMY
R814300 kHz VEIN 100 kHz SWP 50 ms
Figure 2-97 Screen Showing the Hour being Set
