2.3.6 Harmonic Distortion Measurements
13. Press PK SRCH.
The marker is displayed on the peak of the higher harmonic wave. The level dis-
played in the marker area is recorded as the higher harmonic wave level. The har-
monic distortion is the difference between the higher harmonic wave and the
fundamental wave levels.
ADVANTEST R3131 Thu 11 Dec 1997
REF -30.0 dBm ATT 10dB kwrt B_blnk
10dB/ Norm Norm
Marker
CENTER..._. — 1.5999998 GHz
1.6000000 6Hz
. -76. 17 dBm
CENTER 1.6000000 6Hz SPAN 100.0 kHz
RBW 3 kHz VBW 1 kHz SWP 70 ms
Freq
Center
Start
Stop
CF Step
AUTO /MNL

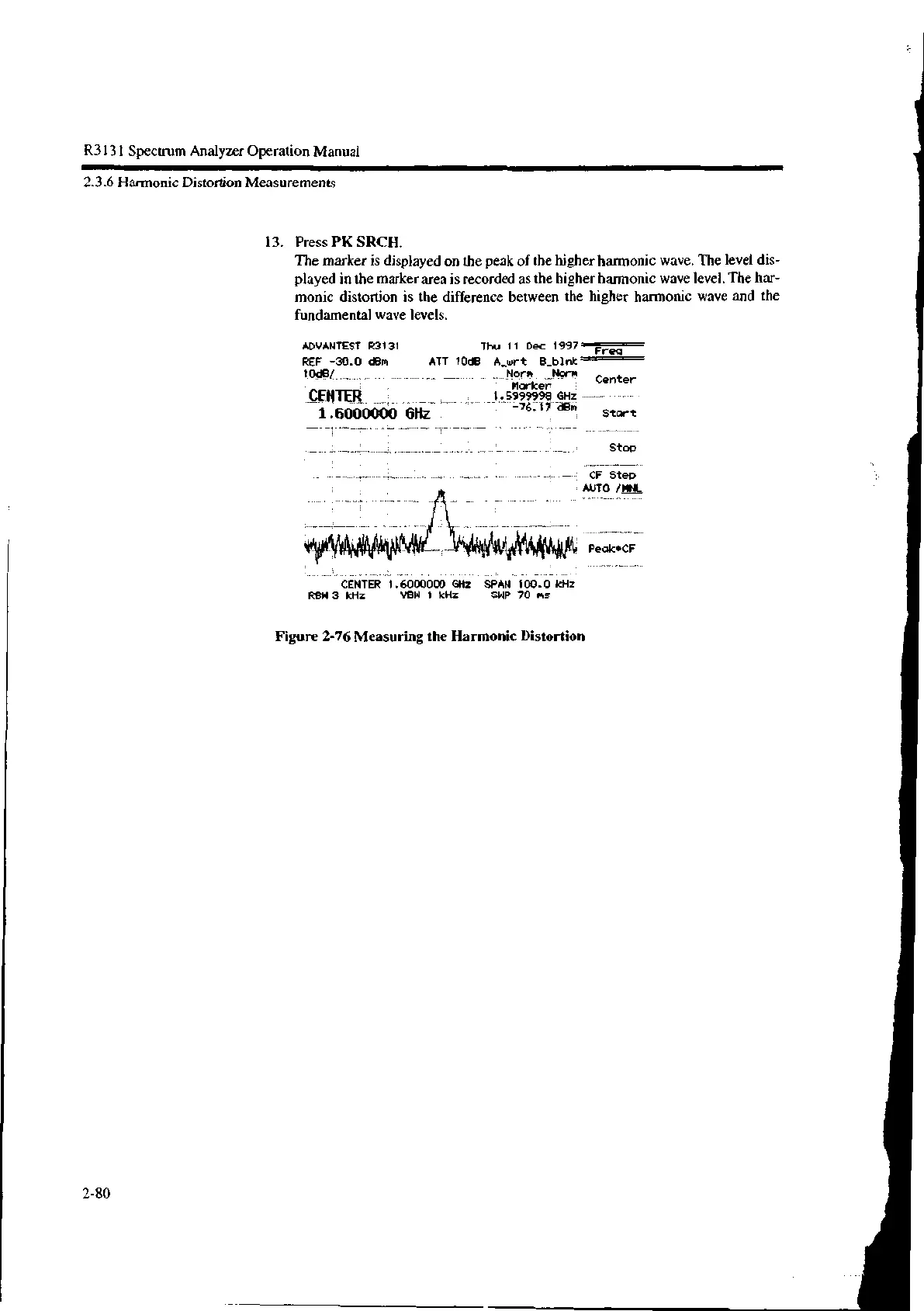

Figure 2-76 Measuring the Harmonic Distortion
