R3131 Spectrum Analyzer Operation Manual
2.3.1 Measuring the Channel Power
R3131 Spectrum analyzer
0 0 0 0
RF INPUT 1
connector
Unit under test
Antenna terminal
External attenuator
Attenuation: 10 dB)

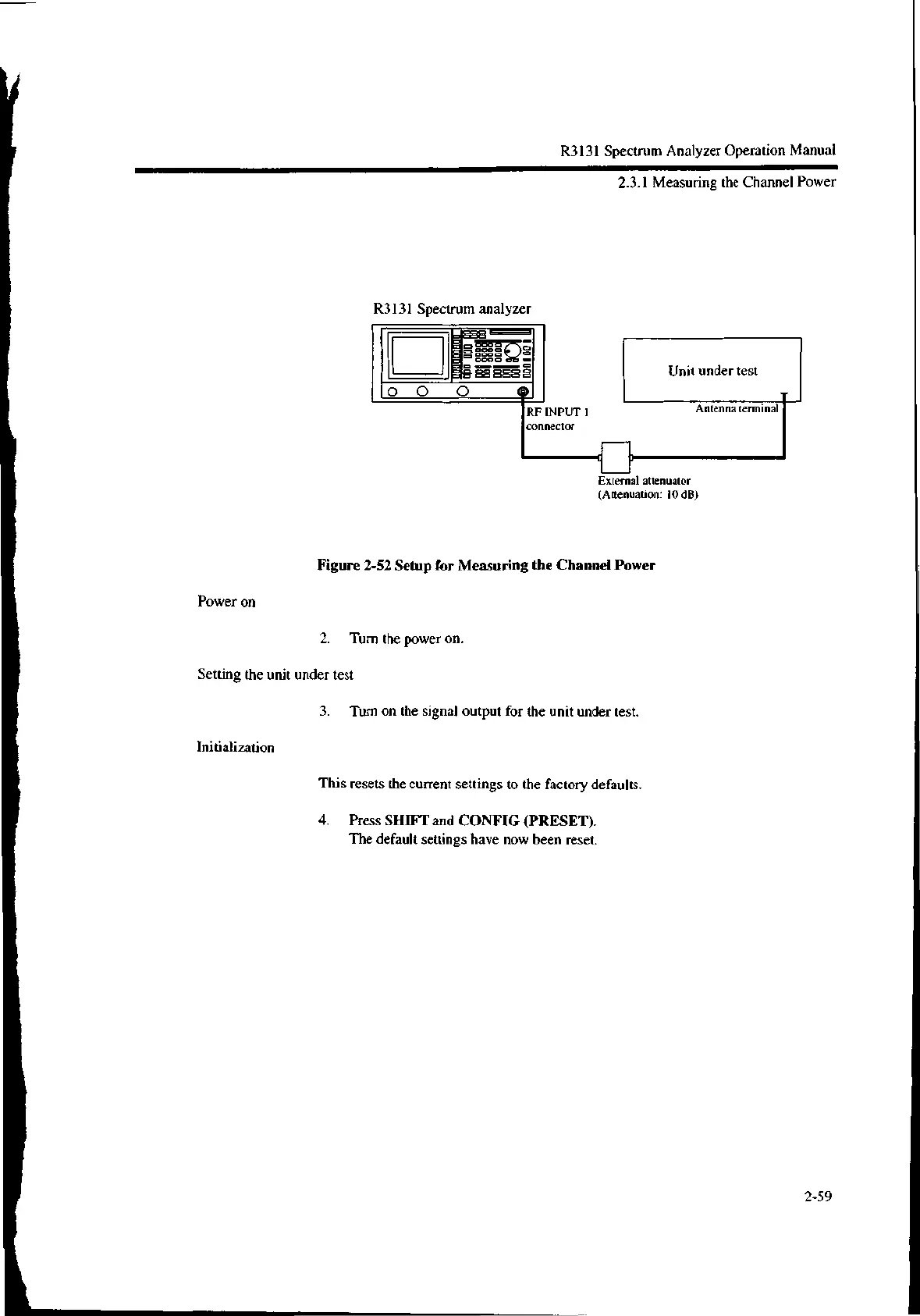

Figure 2-52 Setup for Measuring the Channel Power
Power on
2. Turn the power on.
Setting the unit under test
3. Turn on the signal output for the unit under test.
Initialization
This resets the current settings to the factory defaults.
4. Press SHIFT and CONFIG (PRESET).
The default settings have now been reset.
2-59
