2.2.14 Entering User-definable Antenna Correction Data
File01 dat
ADVANTEST
SYSID
TITLE
DATE
<ANT CORR> !
5000000001
800000000:
1000000009i
12000000001
1400000000'
FILE
1
R31 31
31 31000X1 08
*ADVANTEST R31 31
1 997/1 2/1 9 17:38
—4 5f
—35
—1 5
—5
EOM

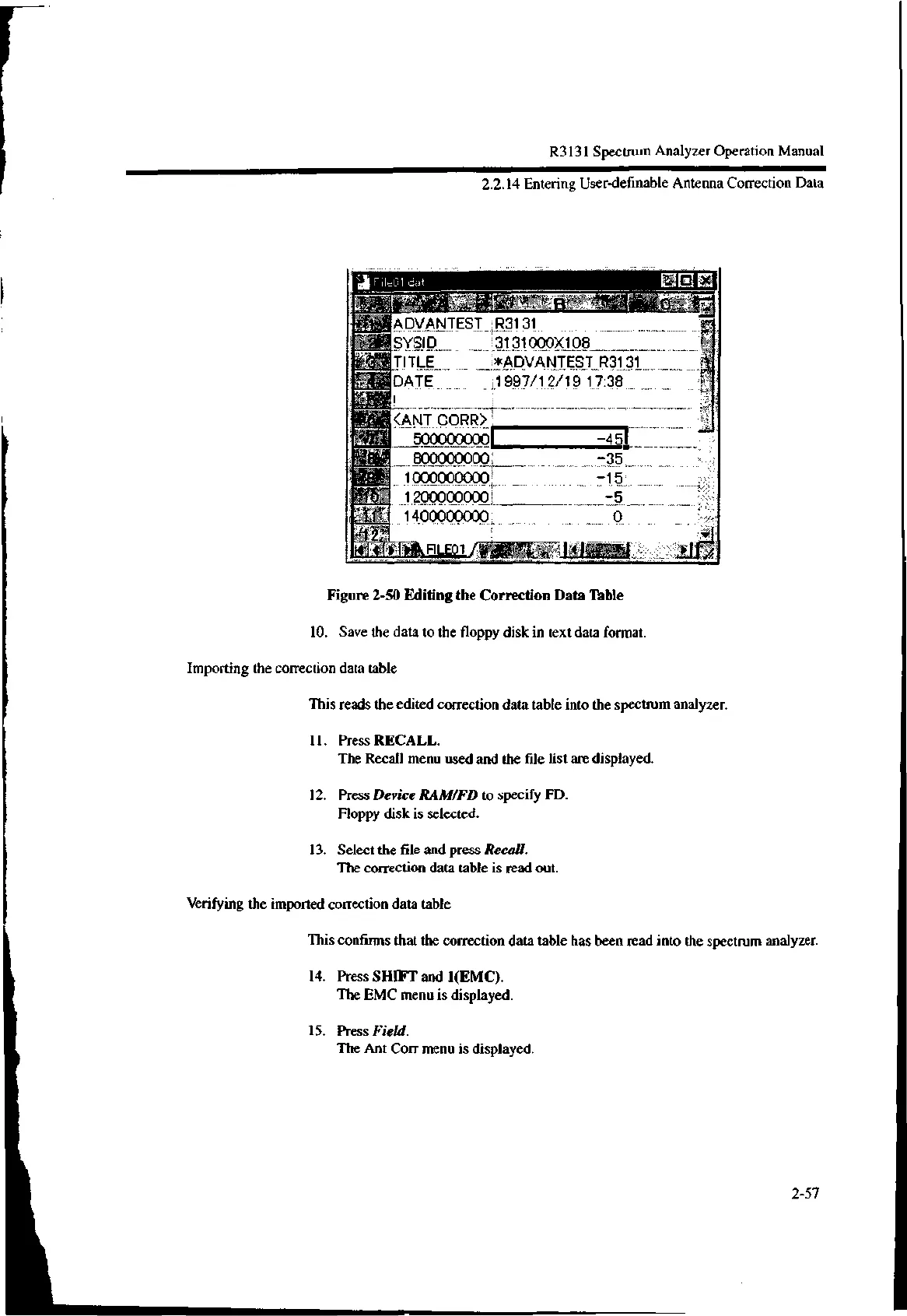

Figure 2-50 Editing the Correction Data Table
10. Save the data to the floppy disk in text data format.
Importing the correction data table
This reads the edited correction data table into the spectrum analyzer.
11. Press RECALL.
The Recall menu used and the file list are displayed.
12. Press Device RAM/FD to specify FD.
Floppy disk is selected.
13. Select the file and press Recall.
The correction data table is read out.
Verifying the imported correction data table
This confirms that the correction data table has been read into the spectrum analyzer.
14. Press SHIFT and 1(EMC).
The EMC menu is displayed.
15. Press Field.
The Ant Corr menu is displayed.
2-57
