R3131 Spectrum Analyzer Operation Manual
Parameter
Factory defaults
Center frequency
1.5GHz
Frequency span 3GHz
Reference level
OdBm
Sweep time
AUTO 50ms
Resolution bandwidth (RBW)
AUTO 1MHz
Video bandwidth (VBW)
AUTO 1MHz
Input attenuator
AUTO 10dB
Trigger mode
Free Run
Trace mode
A Write B Blank
Detector mode
A Normal B Normal
Marker
OFF
Line
OFF
Window
OFF
Title function
OFF
Vertical graduation
10dB/div

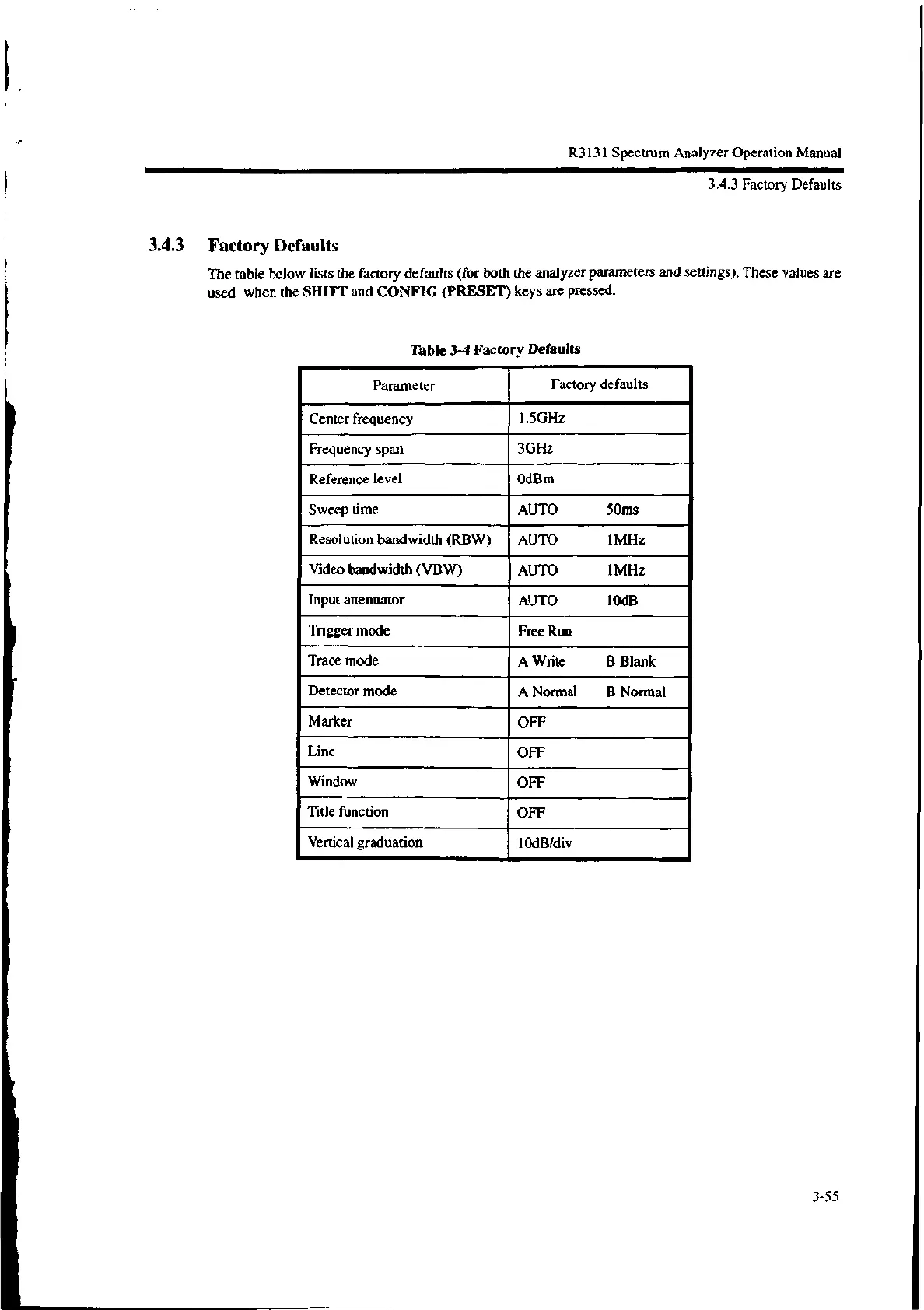

3.4.3 Factory Defaults
3.4.3 Factory Defaults
The table below lists the factory defaults (for both the analyzer parameters and settings). These values are
used when the SHIFT and CONFIG (PRESET) keys are pressed.
Table 3-4 Factory Defaults
3-55
