R3131 Spectrum Analyzer Operation Manual
3.3.16 PAS/FAIL Key (Pass-Fail Judgment)
3.3.16 PAS/FAIL Key (Pass-Fail Judgment)

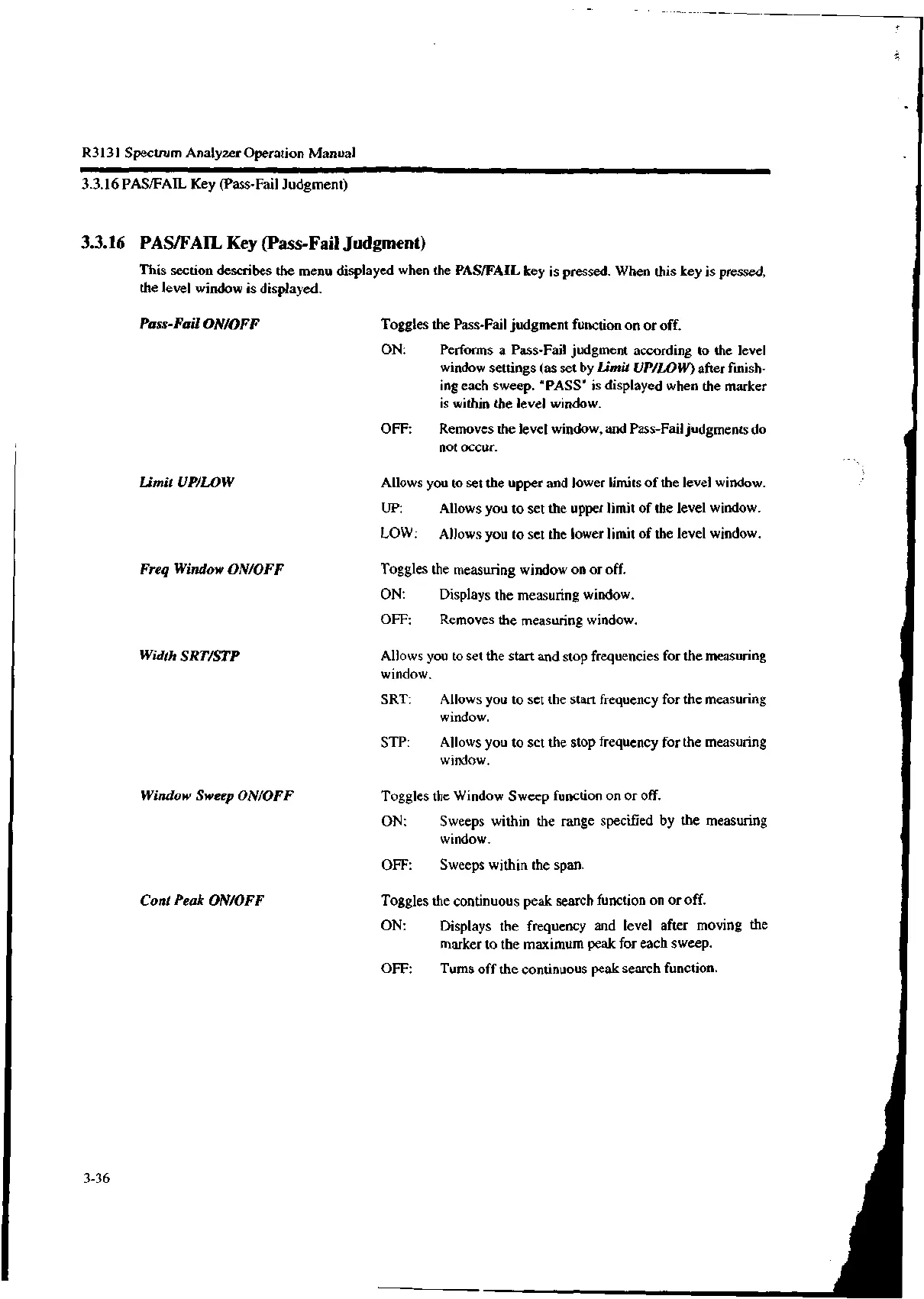

This section describes the menu displayed when the PAS/FAIL key is pressed. When this key is pressed,
the level window is displayed.
Pass-Fail ON/OFF Tog gles the Pass-Fail judgment function on or off.
ON: Performs a Pass-Fail judgment according to the level
window settings (as set by Limit UP/LOW) after finish-
ing each sweep. "PASS" is displayed when the marker
is within the level window.
OFF: Removes the level window, and Pass-Fail judgments do
not occur.
Limit UP/LOW Allows you to set the upper and lower limits of the level window.
UP: Allows you to set the upper limit of the level window.
LOW: Allows you to set the lower limit of the level window.
Freq Window ON/OFF Tog gle s the measuring window on or off.
ON: Displays the measuring window.
OFF: Removes the measuring window.
Width SRT/STP Allows you to set the start and stop frequencies for the measuring
window.
SRT: Allows you to set the start frequency for the measuring
window.
STP: Allows you to set the stop frequency for the measuring
window.
Window Sweep ON/OFF Toggl es the Window Sweep function on or off.
ON: Sweeps within the range specified by the measuring
window.
OFF: Sweeps within the span.
Cont Peak ON/OFF Tog gles the continuous peak search function on or off.
ON: Displays the frequency and level after moving the
marker to the maximum peak for each sweep.
OFF: Turns off the continuous peak search function.
