R3131 Spectrum Analyzer Operation Manual
3.3.28 TRACE Key (Trace Data)
3.3.28 TRACE Key (Trace Data)

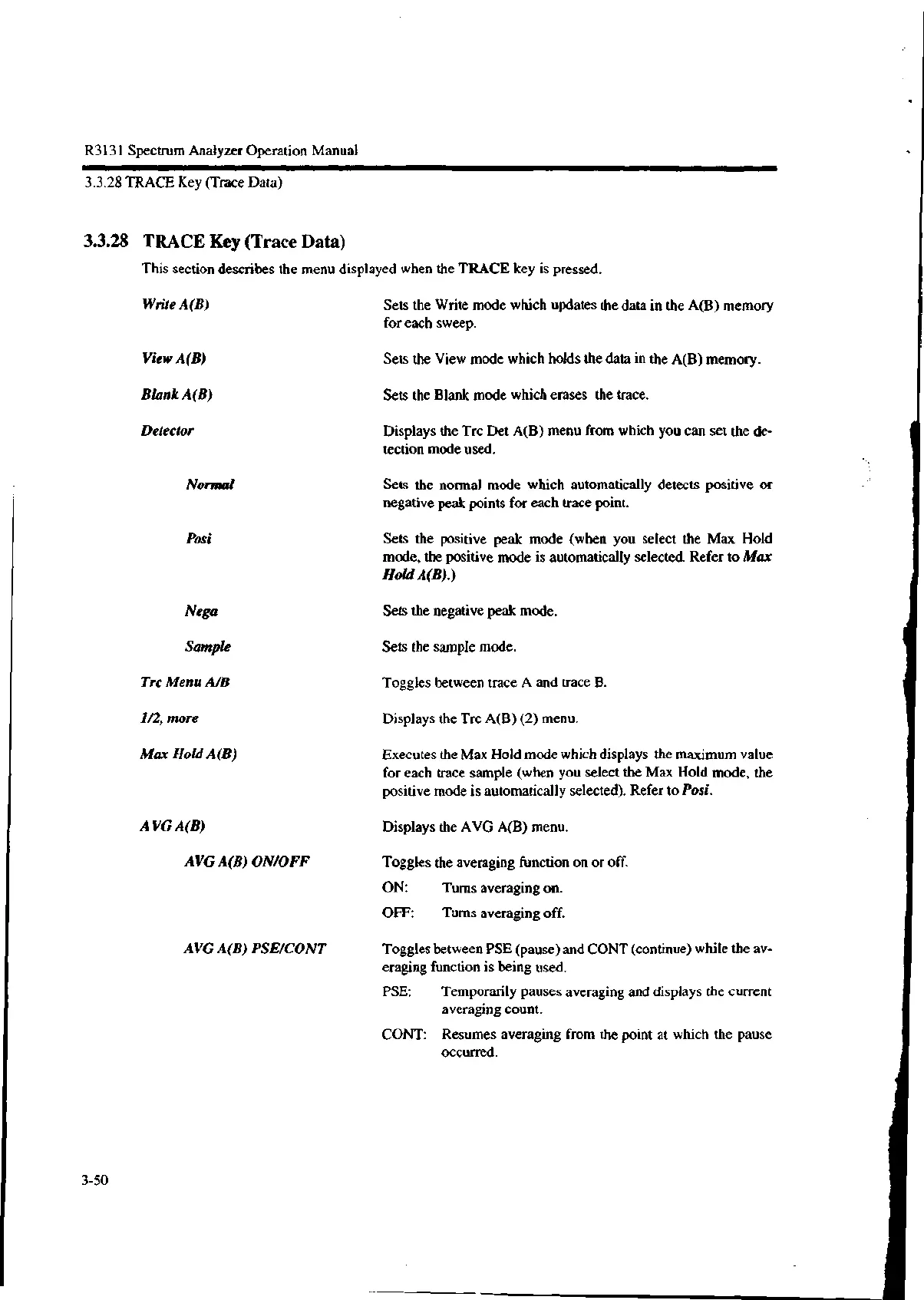

This section describes the menu displayed when the TRACE key is pressed.
Write A(B)
View A(B)
Blank A(B)
Detector
Sets the Write mode which updates the data in the A(B) memory
for each sweep.
Sets the View mode which holds the data in the A(B) memory.
Sets the Blank mode which erases the trace.
Displays the Trc Det A(B) menu from which you can set the de-
tection mode used.
Normal Sets the normal mode which automatically detects positive or
negative peak points for each trace point.
Posi Sets the positive peak mode (when you select the Max Hold
mode, the positive mode is automatically selected. Refer to Max
Hold A(B).)
Nega Sets the negative peak mode.
Sample Sets the sample mode.
Trc Menu A/B Togg les between trace A and trace B.
1/2, more Displays the Trc A(B) (2) menu.
Max Hold A(B) Executes the Max Hold mode which displays the maximum value
for each trace sample (when you select the Max Hold mode, the
positive mode is automatically selected). Refer to Posi.
AVG A(B) Displays the AVG A(B) menu.
AVG A(B) ON/OFF Togg les the averaging function on or off.
ON: Turns averaging on.
OFF: Turns averaging off.
AVG A(B) PSE/CONT Togg les between PSE (pause) and CONT (continue) while the av-
eraging function is being used.
PSE: Temporarily pauses averaging and displays the current
averaging count.
CONT: Resumes averaging from the point at which the pause
occurred.
