R3131 Spectrum Analyzer Operation Manual

Function

Listener Code

Tal k er Request

Code

Output Format

Command selection

ESC/P

PRTCMD ESC

PRTCMD?

0: PCL

1: ESCP

2: ESCP-R

ESC/P Raster

PRTCMD ESCPR

PCL

PRTCMD PCL

Print size

Large

PSIZF LRG

PSIZE?

0: Small

1: Large

Small

PSIZE SML

Mode selection

Gray

HCIMAG GRY

HCIMAG?

0: Gray

1: B&W

Monochrome

HCIMAG MON

Device selection

Printer

HCDEV PRT

HCDEV?

0: Printer

1: Floppy

Floppy

HCDEV FDD

Execution

HCOPY —

—

Function

Listener Code

Talk er Request

Code

Output Format

Preset IP

—

Function

Listener Code

Talk er Request

Code

Output Format

A trace I/O ASCII TAA

TAA?

ASCII Trace

binary TBA

TBA?

BIN Trace

B trace I/O ASCII TAB

TAB?

ASCII Trace

binary TBB

TBB?

BIN Trace

Function

Listener Code

Talk er Request

Code

Output Format

Status bytes clear *CLS ——

STB readout

—

*STB?

0-255

SRE Read/Write *SRE*

*SRE?

0-255

ESR readout

—

*ESR?

0-255

ESE Read/Write *ESE*

*ESE? 0-255

OSR readout —

OPREVT?

0-65535

OSER readout

OPR

OPR?

0-65535

SRQ interruption ON SO — —

SRQ interruption OFF S1 —

SRQ status clear

S2 — —

Service request mask

RQS*

RQS?

0-255

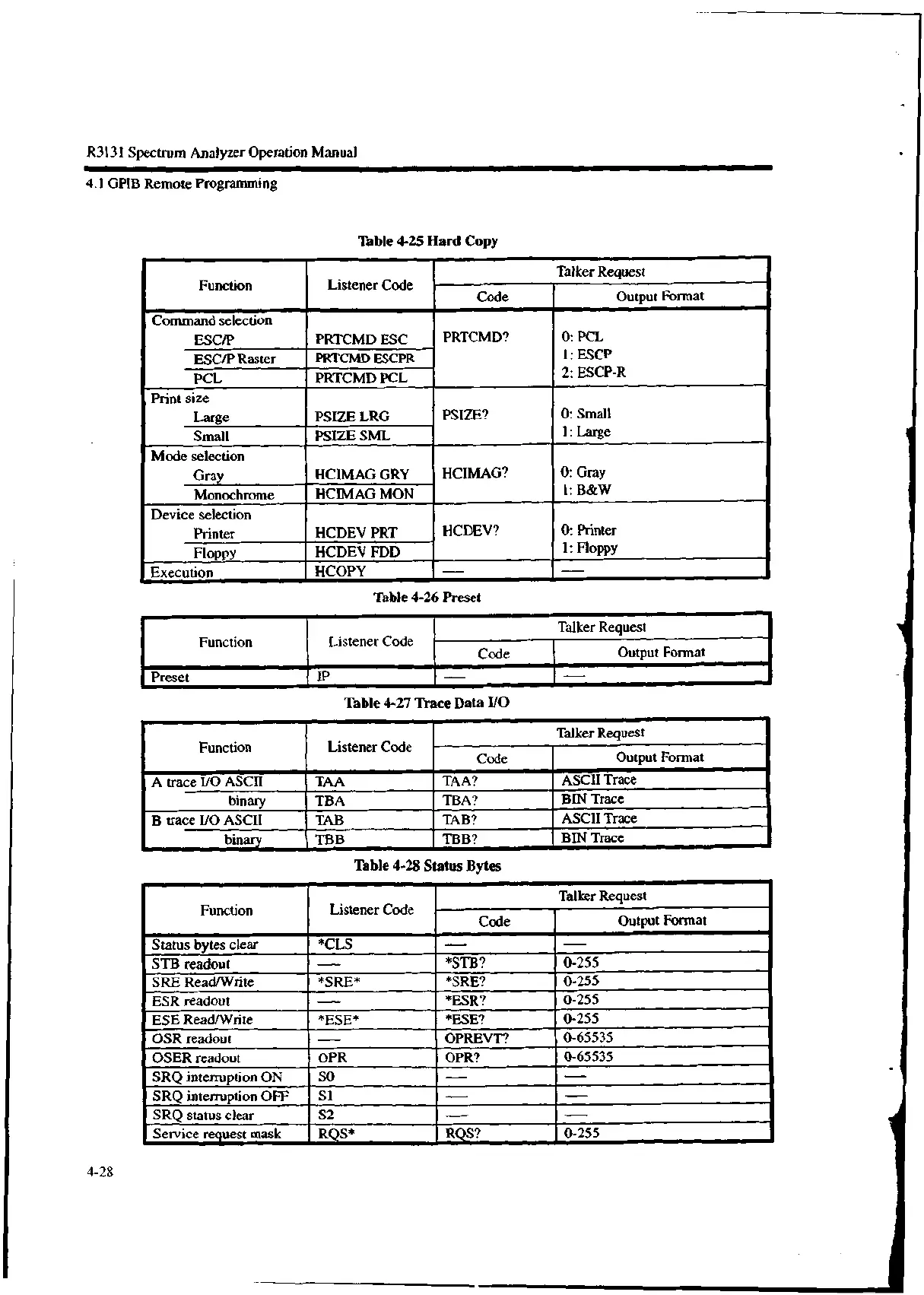

4.1 GPIB Remote Programming

Table 4-25 Hard Copy

Tabl e 4-26 Preset

Tabl e 4-27 Trace Data I/0

Table 4-28 Status Bytes

4-28
