R3131 Spectrum Analyzer Operation Manual

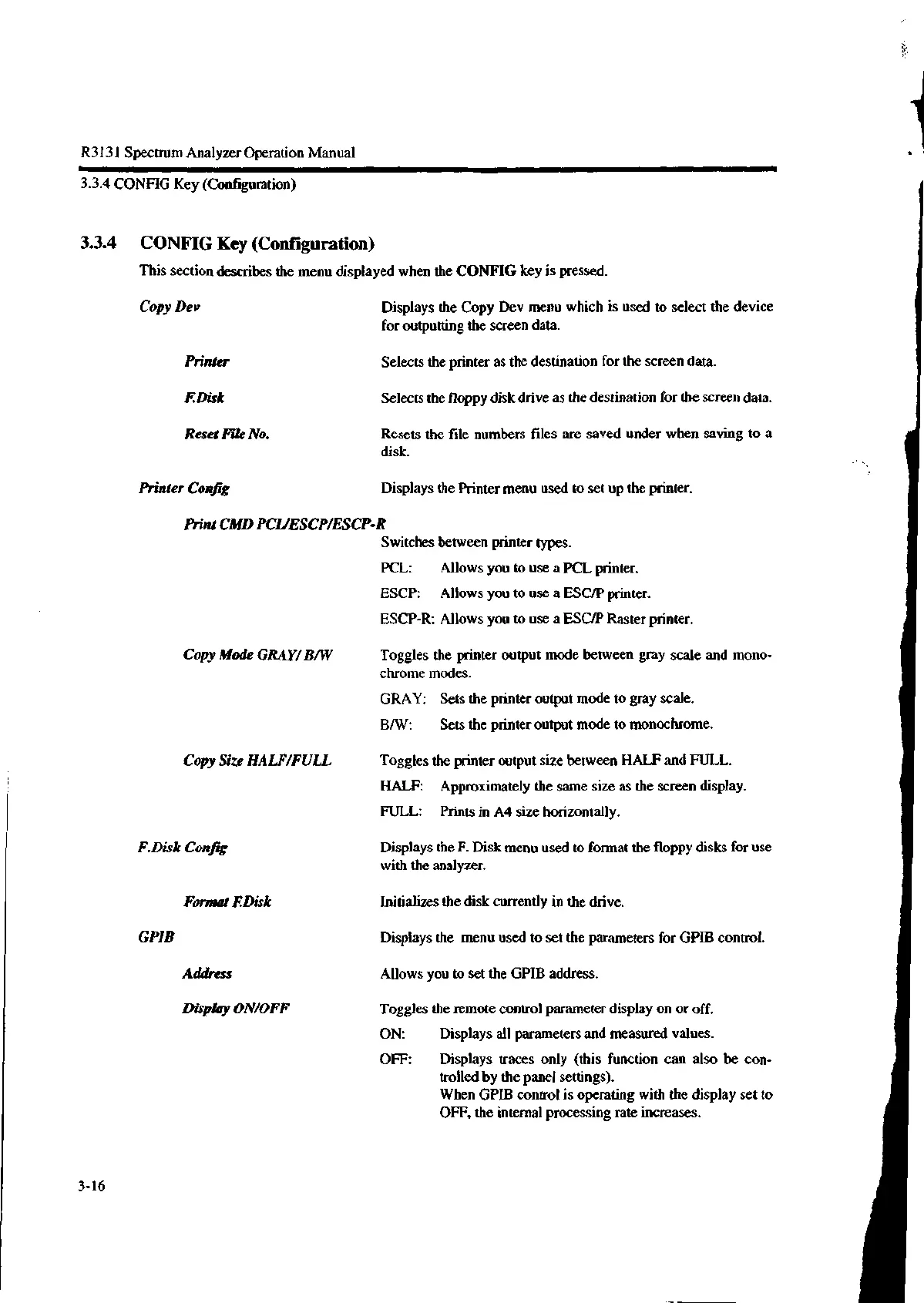

3.3.4 CONFIG Key (Configuration)
3.3.4 CONFIG Key (Configuration)
This section describes the menu displayed when the CONFIG key is pressed.
Copy Dev Displays the Copy Dev menu which is used to select the device
for outputting the screen data.
Printer Selects the printer as the destination for the screen data.
F.D is k Selects the floppy disk drive as the destination for the screen data.
Reset File No. Resets the file numbers files are saved under when saving to a
disk.
Printer Config Displays the Printer menu used to set up the printer.
Print CMD PCL/ESCP/ESCP-R
Switches between printer types.
PCL: Allows you to use a PCL printer.
ESCP: Allows you to use a ESC/P printer.
ESCP-R: Allows you to use a ESC/P Raster printer.
Copy Mode GRAY/ B/W Togg les the printer output mode between gray scale and mono-
chrome modes.
GRAY: Sets the printer output mode to gray scale.
B/W: Sets the printer output mode to monochrome.
Copy Size HALF/FULL Tog gles the printer output size between HALF and FULL.
HALF: Approximately the same size as the screen display.
FULL: Prints in A4 size horizontally.
F.D i sk Config Displays the F. Disk menu used to format the floppy disks for use
with the analyzer.
Format EDisk Initializes the disk currently in the drive.
GPIB Displays the menu used to set the parameters for GPIB control.
Address Allows you to set the GPIB address.
Display ON/OFF Togg les the remote control parameter display on or off.
ON: Displays all parameters and measured values.
OFF: Displays traces only (this function can also be con-
trolled by the panel settings).
When GPIB control is operating with the display set to
OFF, the internal processing rate increases.
3-16
