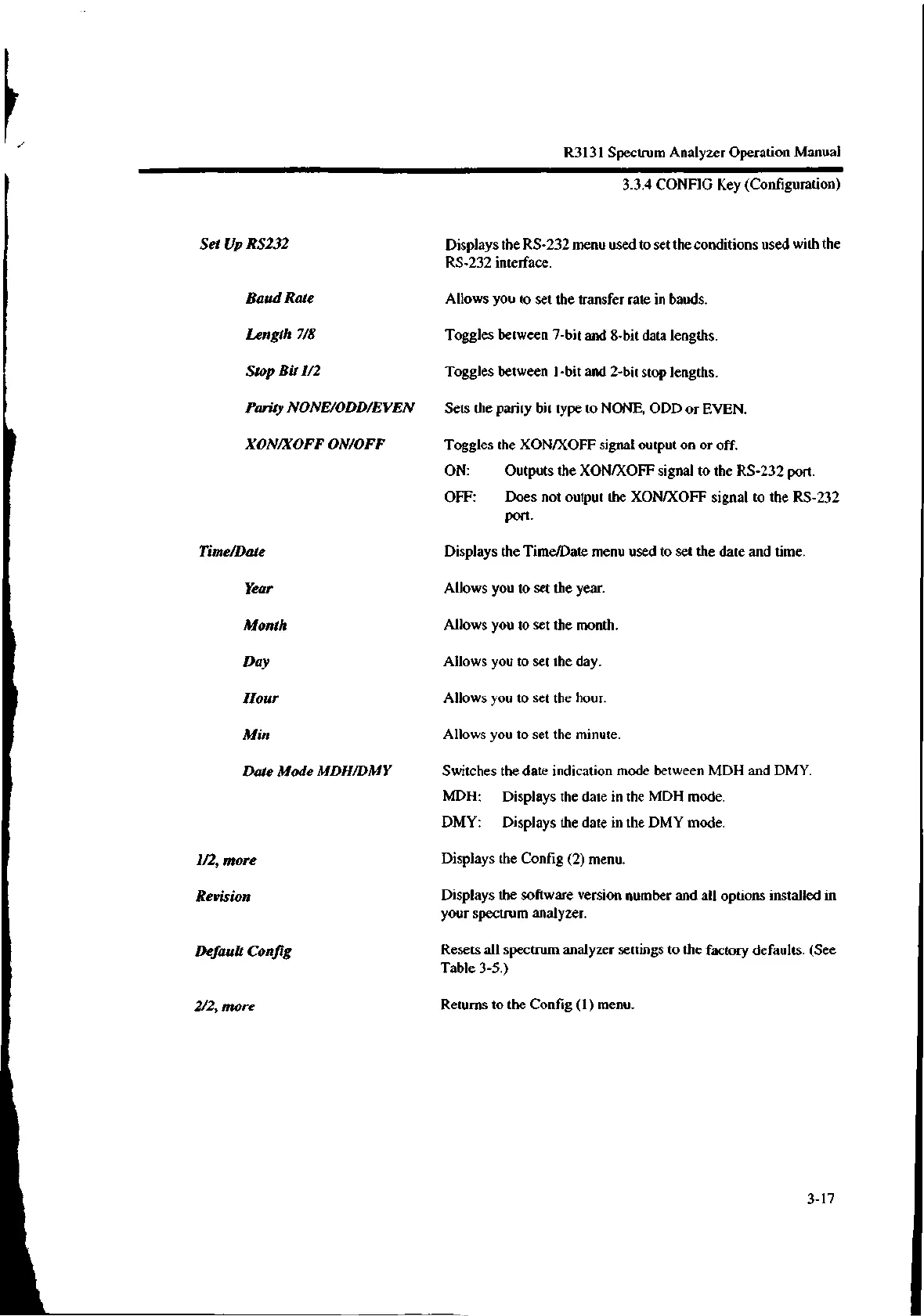

R3131 Spectrum Analyzer Operation Manual
3.3.4 CONFIG Key (Configuration)
Set Up RS232 Displays the RS-232 menu used to set the conditions used with the
RS-232 interface.
Baud Rate Allows you to set the transfer rate in bauds.
Length 7/8 Togg les between 7-bit and 8-bit data lengths.
Stop Bit 1/2 Tog gles between 1-bit and 2-bit stop lengths.
Parity NONE/ODD/EVEN Sets the parity bit type to NONE, ODD or EVEN.
XON/XOFF ON/OFF Tog gle s the XON/XOFF signal output on or off.
ON: Outputs the XON/XOFF signal to the RS-232 port.
OFF: Does not output the XON/XOFF signal to the RS-232
Port-
Time/Date Displays the Time/Date menu used to set the date and time.
Year Allows you to set the year.
Month Allows you to set the month.
Day Allows you to set the day.
Hour Allows you to set the hour.
Min Allows you to set the minute.
Date Mode MDH/DMY Switches the date indication mode between MDH and DMY.
MDH: Displays the date in the MDH mode.
DMY: Displays the date in the DMY mode.
1/2, more Displays the Config (2) menu.
Revision
Default Config
2/2, more
Displays the software version number and all options installed in
your spectrum analyzer.
Resets all spectrum analyzer settings to the factory defaults. (See
Tabl e 3-5.)
Returns to the Config (1) menu.
3-17
To Next Page
