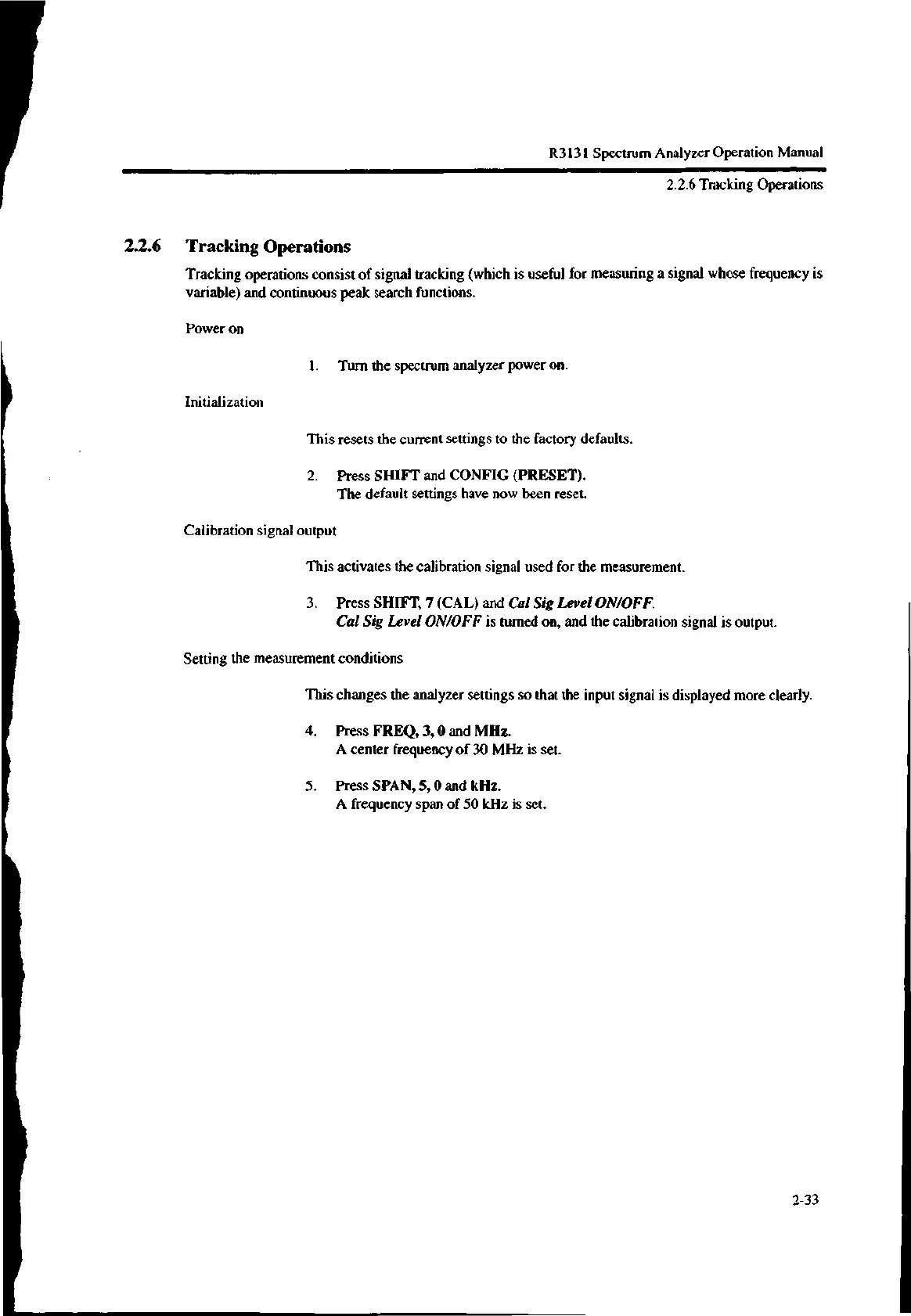

R3131 Spectrum Analyzer Operation Manual
2.2.6 Tracking Operations
2.2.6 Tracking Operations
Tracking operations consist of signal tracking (which is useful for measuring a signal whose frequency is
variable) and continuous peak search functions.
Power on
1. Turn the spectrum analyzer power on.
Initialization
This resets the current settings to the factory defaults.
2. Press SHIFT and CONFIG (PRESET).
The default settings have now been reset.
Calibration signal output
This activates the calibration signal used for the measurement.
3. Press SHIFT, 7 (CAL) and Cal Sig Level ON/OFF.
Cal Sig Level ON/OFF is turned on, and the calibration signal is output.
Setting the measurement conditions
This changes the analyzer settings so that the input signal is displayed more clearly.
4. Press FREQ, 3, 0 and MHz.
A center frequency of 30 MHz is set.
5. Press SPAN, 5, 0 and kHz.
A frequency span of 50 kHz is set.
