2.4.3 Outputting Screen Data
2.4.3 Outputting Screen Data
You can save screen data to a floppy disk, or print it out when needed. When outputting screen data, you
can use any key except the COPY key. You can resume using this key after the data has been output.
(1) Saving to a Floppy Disk
Screen data is saved in BMP (bitmap file) format.
Inserting a floppy disk
1. Insert a floppy disk into the floppy drive.
Selecting the destination
2. Press CONFIG and Copy Dev.
The Copy Dev menu used for selecting the screen data destination appears.
3. Press F.Di sk.
Floppy disk is chosen as the destination for the screen data.
ADVANTEST R3131 Mar 20 16:00:11 cop,Dev
REF 0.0 dBm ATT 10dB A_wrt B_blnk
10d51 Norm Norm Printer
F. Disk
Reset
File No.
CENTER 30.00 MHz SPAN 20.00 MHz
ROW 300 kHz VOW 100 kHz SWP 50 ms

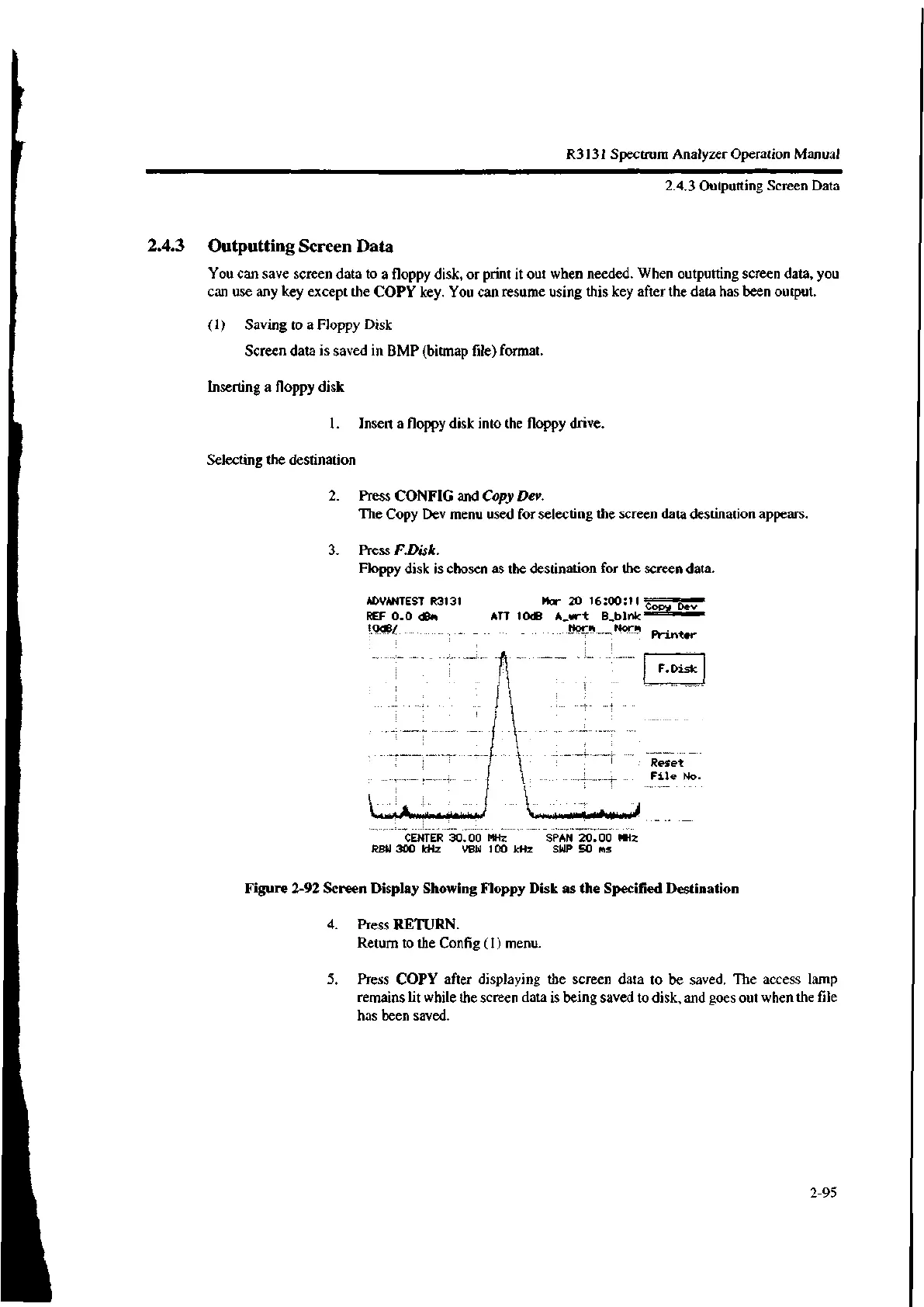

Figure 2-92 Screen Display Showing Floppy Disk as the Specified Destination
4. Press RETURN.
Return to the Config (1) menu.
5. Press COPY after displaying the screen data to be saved. The access lamp
remains lit while the screen data is being saved to disk, and goes out when the file
has been saved.
2-95
