R3131 Spectrum Analyzer Operation Manual

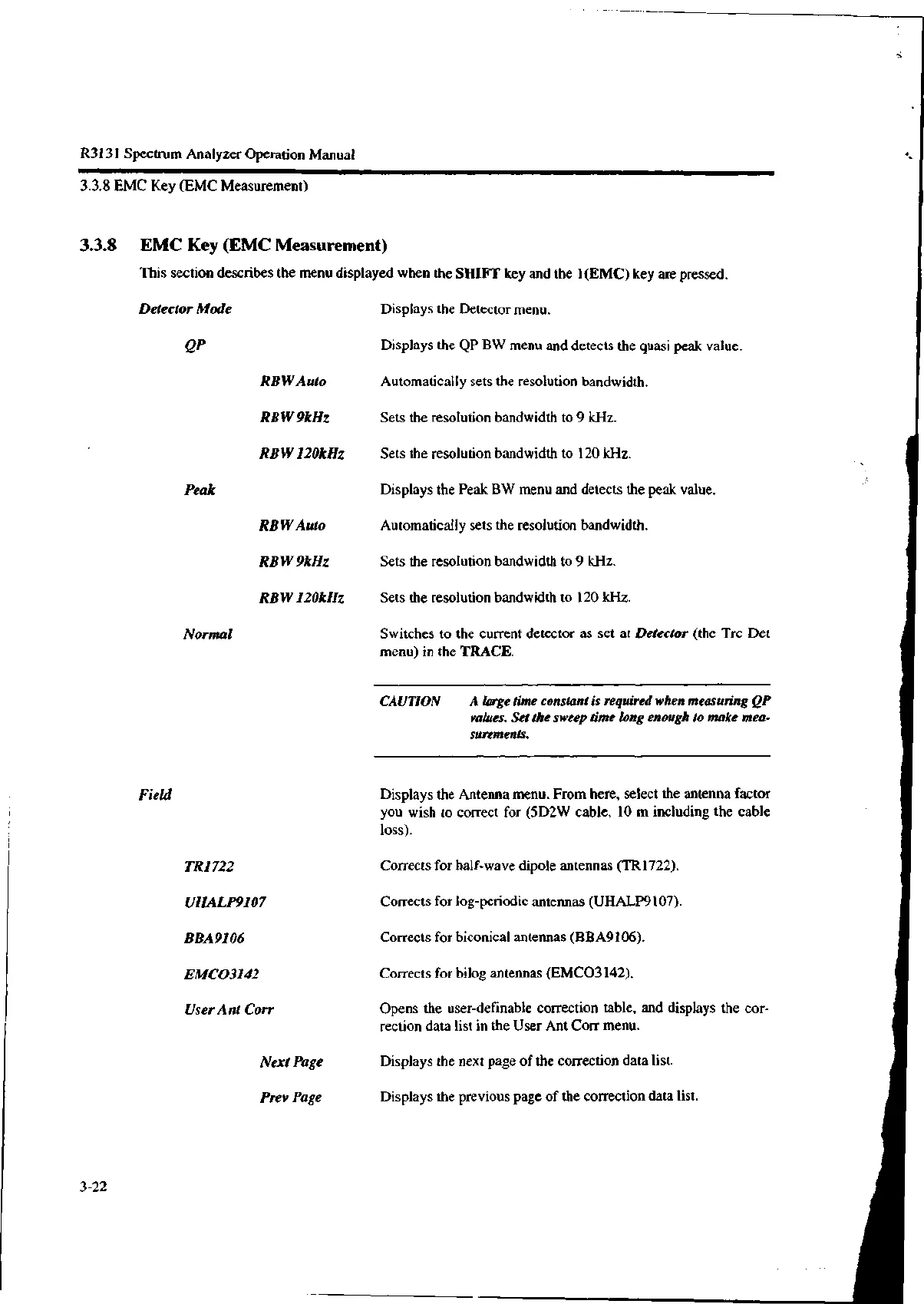

3.3.8 EMC Key (EMC Measurement)
3.3.8 EMC Key (EMC Measurement)
This section describes the menu displayed when the SHIFT key and the 1(EMC) key are pressed.
Detector Mode
Field
3-22
Displays the Detector menu.
QP Displays the QP BW menu and detects the quasi peak value.
RBW Auto Automatically sets the resolution bandwidth.
RBW 9kHz Sets the resolution bandwidth to 9 kHz.
RBW 120kHz Sets the resolution bandwidth to 120 kHz.
Peak Displays the Peak BW menu and detects the peak value.
RBW Auto Automatically sets the resolution bandwidth.
RBW 9kHz Sets the resolution bandwidth to 9 kHz.
RBW 120kHz Sets the resolution bandwidth to 120 kHz.
Normal Switches to the current detector as set at Detector (the Trc Det
menu) in the TRACE.
CAUTION A large time constant is required when measuring QP
values. Set the sweep time long enough to make mea-
surements.
Displays the Antenna menu. From here, select the antenna factor
you wish to correct for (5D2W cable, 10 m including the cable
loss).
TR1722 Corrects for half-wave dipole antennas (TR1722).
UHALP9107 Corrects for log-periodic antennas (UHALP9107).
BBA9106 Corrects for biconical antennas (BBA9106).
EMC03142 Corrects for bilog antennas (EMC03142).
User Ant Corr Opens the user-definable correction table, and displays the cor-
rection data list in the User Ant Corr menu.
Next Page Displays the next page of the correction data list.
Prey Page Displays the previous page of the correction data list.
