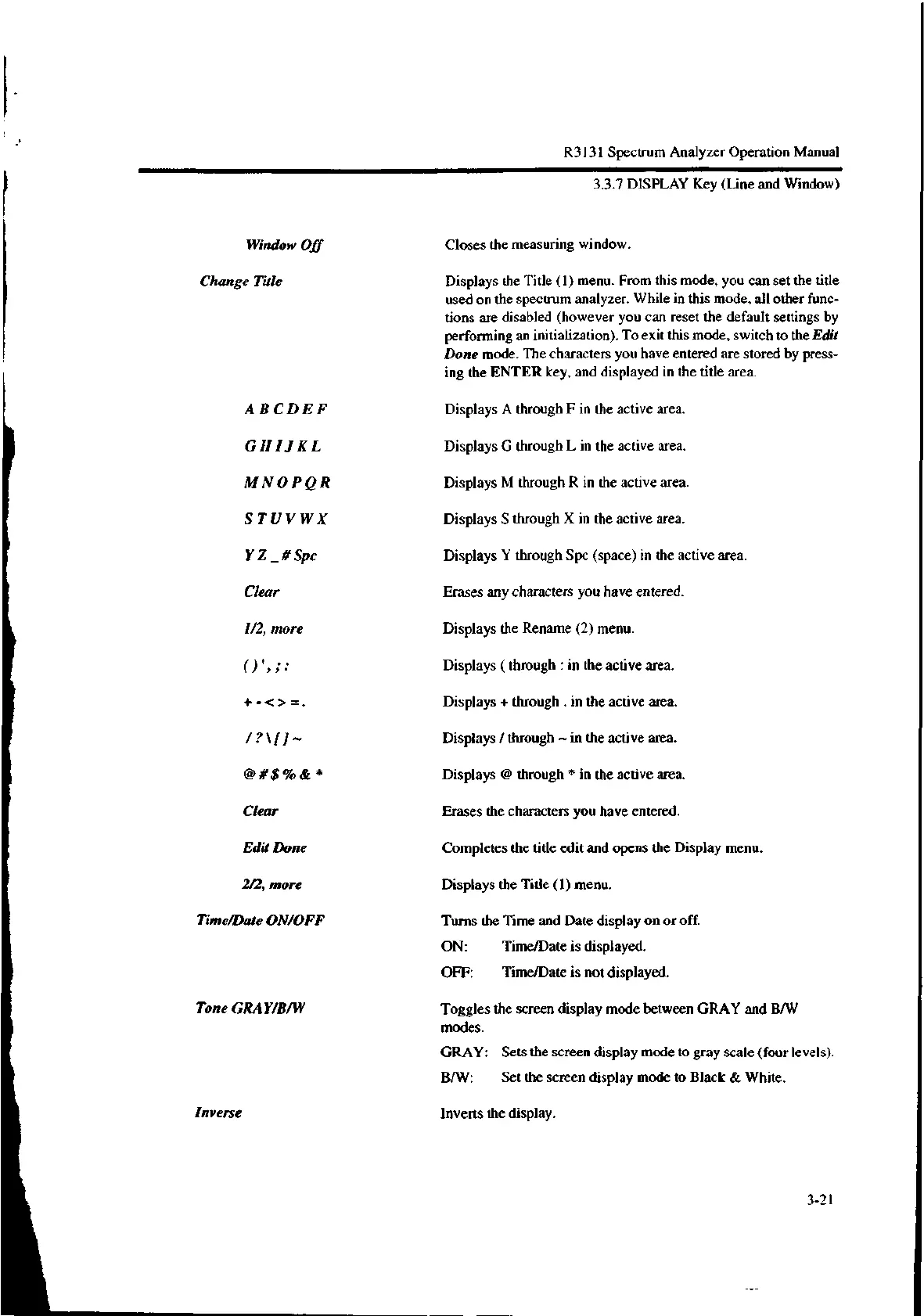

R3131 Spectrum Analyzer Operation Manual
3.3.7 DISPLAY Key (Line and Window)
Window Off Closes the measuring window.
Change Title
Displays the Title (1) menu. From this mode, you can set the title
used on the spectrum analyzer. While in this mode, all other func-
tions are disabled (however you can reset the default settings by
performing an initialization). To exit this mode, switch to the Edit
Done mode. The characters you have entered are stored by press-
ing the ENTER key, and displayed in the title area.
ABCDEF Displays A through F in the active area.
CHURL Displays G through L in the active area.
MNOPQR Displays M through R in the active area.
S T U V W X Displays S through X in the active area.
Y Z _# Spc Displays Y through Spc (space) in the active area.
Clear Erases any characters you have entered.
1/2, more Displays the Rename (2) menu.
( )1, Displays ( through : in the active area.
+-<>=. Displays + through . in the active area.
l?\11— Displays / through in the active area.
#$ % & * Displays @ through * in the active area.
Clear Erases the characters you have entered.
Edit Done Completes the title edit and opens the Display menu.
2/2, more Displays the Title (1) menu.
Time/Date ON/OFF Turns the Time and Date display on or off.
ON: Time/Date is displayed.
OFF: Time/Date is not displayed.
Tone GRAY/B/W
Togg les the screen display mode between GRAY and B/W
modes.
GRAY: Sets the screen display mode to gray scale (four levels).
B/W: Set the screen display mode to Black & White.
Inverse Inverts the display.
3-21
