ADVANTEST R3131 Series User Manual

I
Frequency span Center frequency set resolution
100MHz 5 Span 100kHz
10MHz 5 Span < 100MHz 10kHz
1MHz 5_ Span < 10MHz 1kHz
100kHz _5_ Span < 1MHz 100Hz
50kHz 5 Span < 100kHz
10Hz
0Hz = Span
10Hz
Frequency span Frequency span set resolution
400MHz < Span
1MHz
40.0MHz < Span 5 400.0MHz 100kHz
1.00MHz < Span 5 40.00MHz
10kHz
100kHz < Span 5 1.000MHz
1kHz
50.0kHz 5_ Span 5 100.0kHz
100Hz

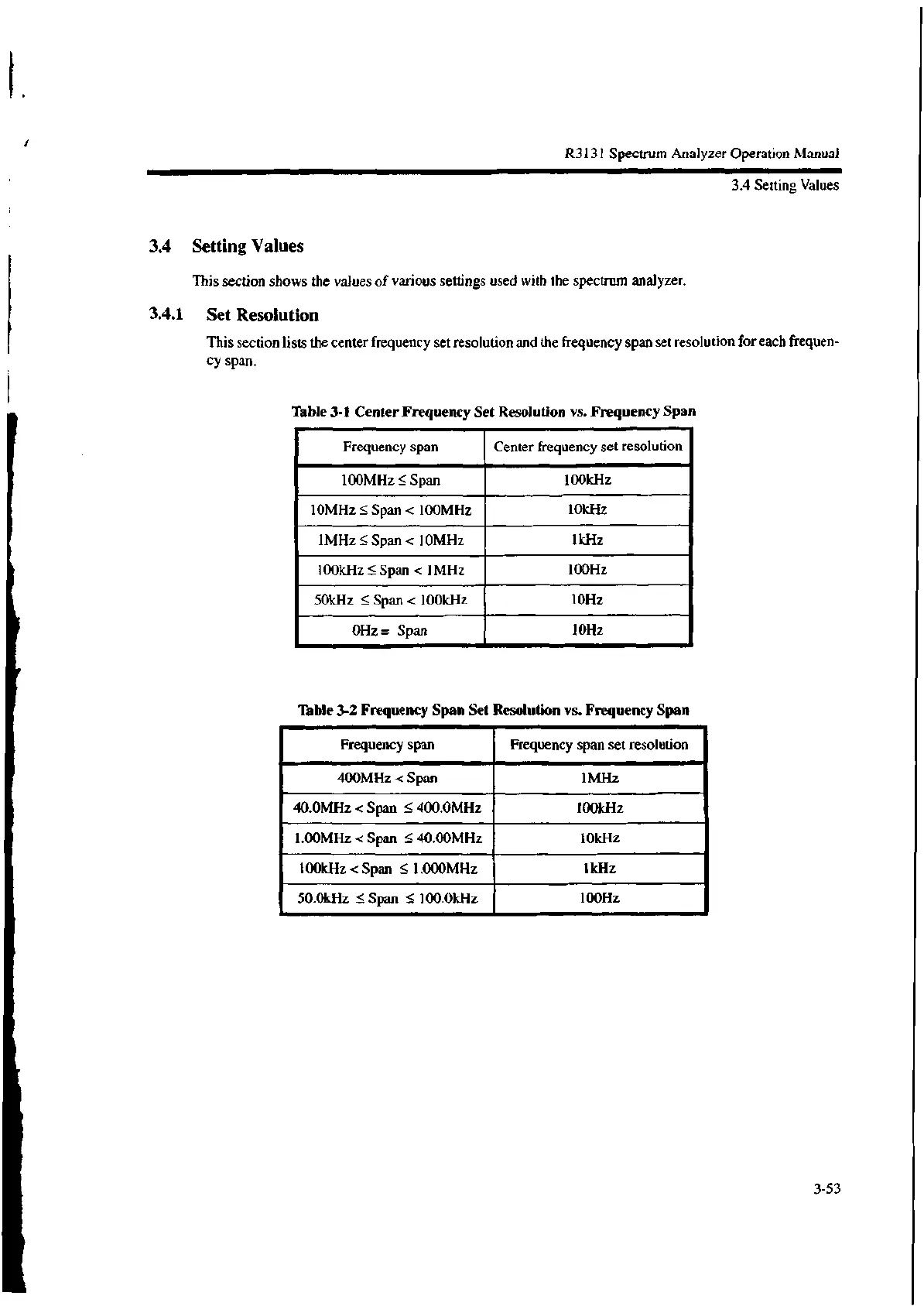

R3131 Spectrum Analyzer Operation Manual
3.4 Setting Values
3.4 Setting Values
This section shows the values of various settings used with the spectrum analyzer.
3.4.1 Set Resolution
This section lists the center frequency set resolution and the frequency span set resolution for each frequen-
cy span.
Table 3-1 Center Frequency Set Resolution vs. Frequency Span
Table 3-2 Frequency Span Set Resolution vs. Frequency Span
3-53
