R3131 Spectrum Analyzer Operation Manual
2.4.2 Saving or Recalling Data
Recalling the data
2-92
ADVANTEST R3131 Wed 10 Dec 1997
REF 0.0 dBm ATT 10dB A_wrt B_blnk
RECALL- FILE
Recall
Recall
CENTER 30.00 MHz - " - SPAN 20.00 MHz - -
RBW 300 kHz VBW 100 kHz SWP 50 ms
FILE LIST (FD:/SVRCL)
OWN*14.111 ADVANTEST R3131 <FILE00.DAT>
97/12/10 19:07
RO 10705 Bytes
Setup: ON
Trace: A
Ant : OFF
Norm : OFF
Device
RAM / FD

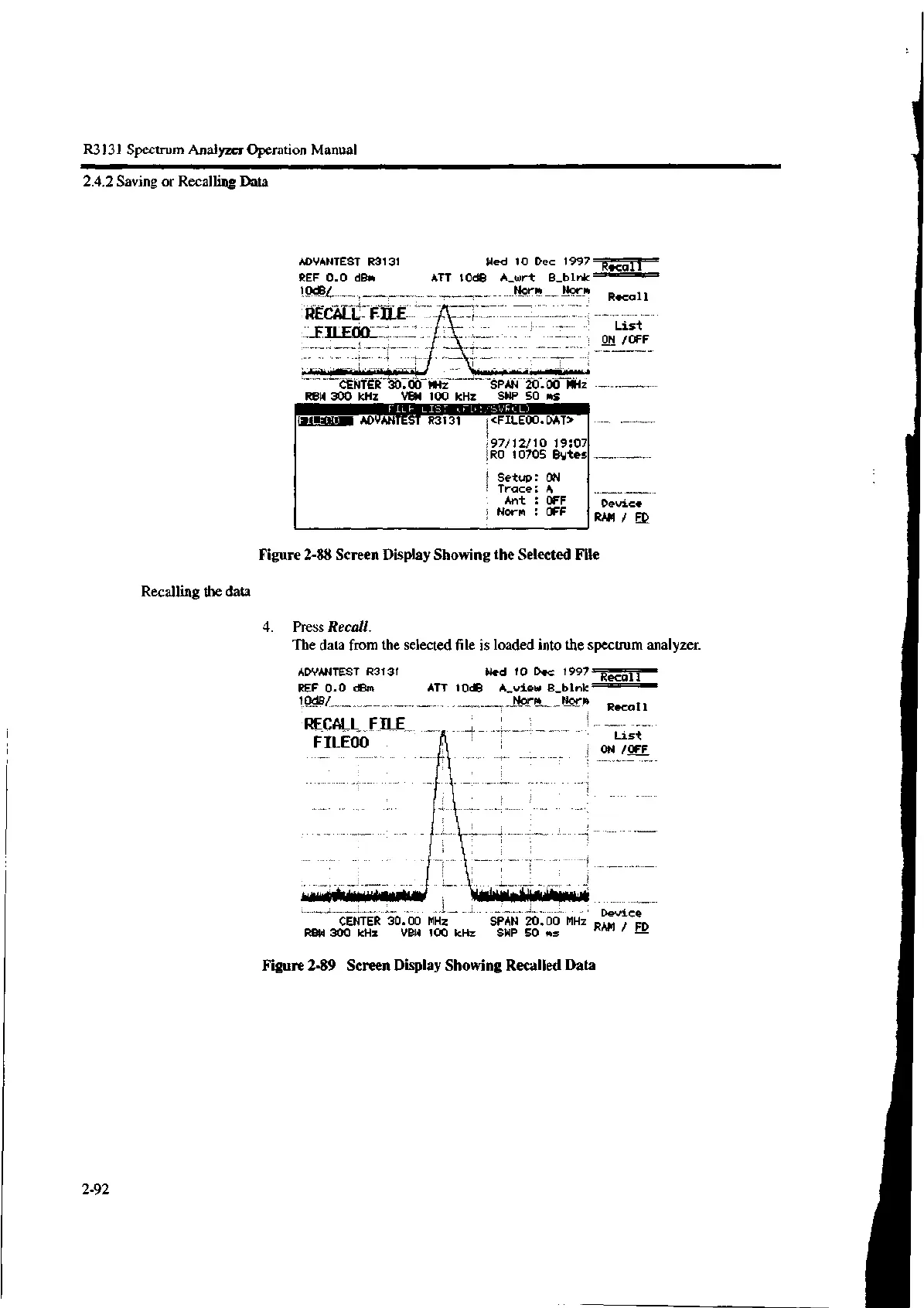

Figure 2-88 Screen Display Showing the Selected File
4. Press Recall.
The data from the selected file is loaded into the spectrum analyzer.
ADVANTEST R3131 Wed 10 Dec 1997
REF 0.0 dBm ATT 10dB A_view B_blnk
194W_ _ Norm Norm
RECALL FILE
FILE00
Recall
• Device
CENTER 30.00 MHz SPAN 20.00 MHz RAN / FD
RBW 300 kHz VBW 100 kHz SWP 50 ms
Figure 2-89 Screen Display Showing Recalled Data
