The Agilent 35670A’s Status Registers
Register Summary
The Agilent 35670A uses eight register sets to keep track of instrument status:
Status Byte
Device State
Limit Fail
Questionable Status
Questionable Voltage
Standard Event
Operation Status
User Status

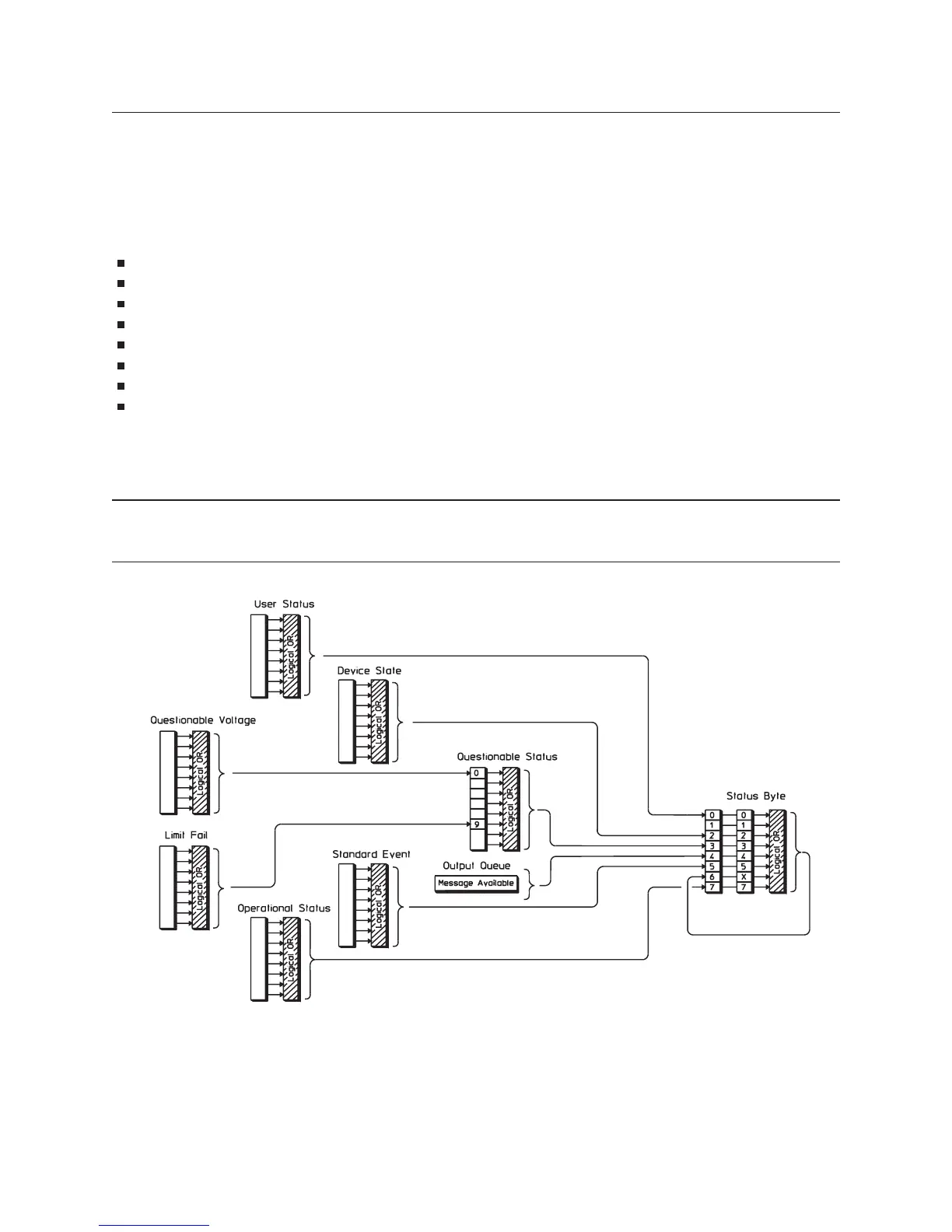

Their reporting structure is summarized in figure 1-5. They are described in greater detail in the
following sections.
Note Register bits not explicitly presented in the following sections are not used by the
Agilent 35670A. A query to one of these bits returns a value of 0.
The Agilent 35670A’s Status Registers
1-13
1-5. Agilent 35670A Register Sets
