Agilent Technologies 35670A

Status Byte Register Set
The Status Byte register set summarizes the states of the other register sets and monitors the analyzer’s
output queue. It is also responsible for generating service requests. See figure 1-6.
The Status Byte register set contains only two registers: the Status Byte register and the Service Request
enable register. The Status Byte register behaves like a condition register for all bits except bit 6. The
Service Request enable register behaves like a standard enable register except that bit 6 is always set to 0.
For more information about generating service requests, see “How to Use Registers” in the GPIB
Programmer’s Guide.
The Agilent 35670A’s Status Registers
1-14

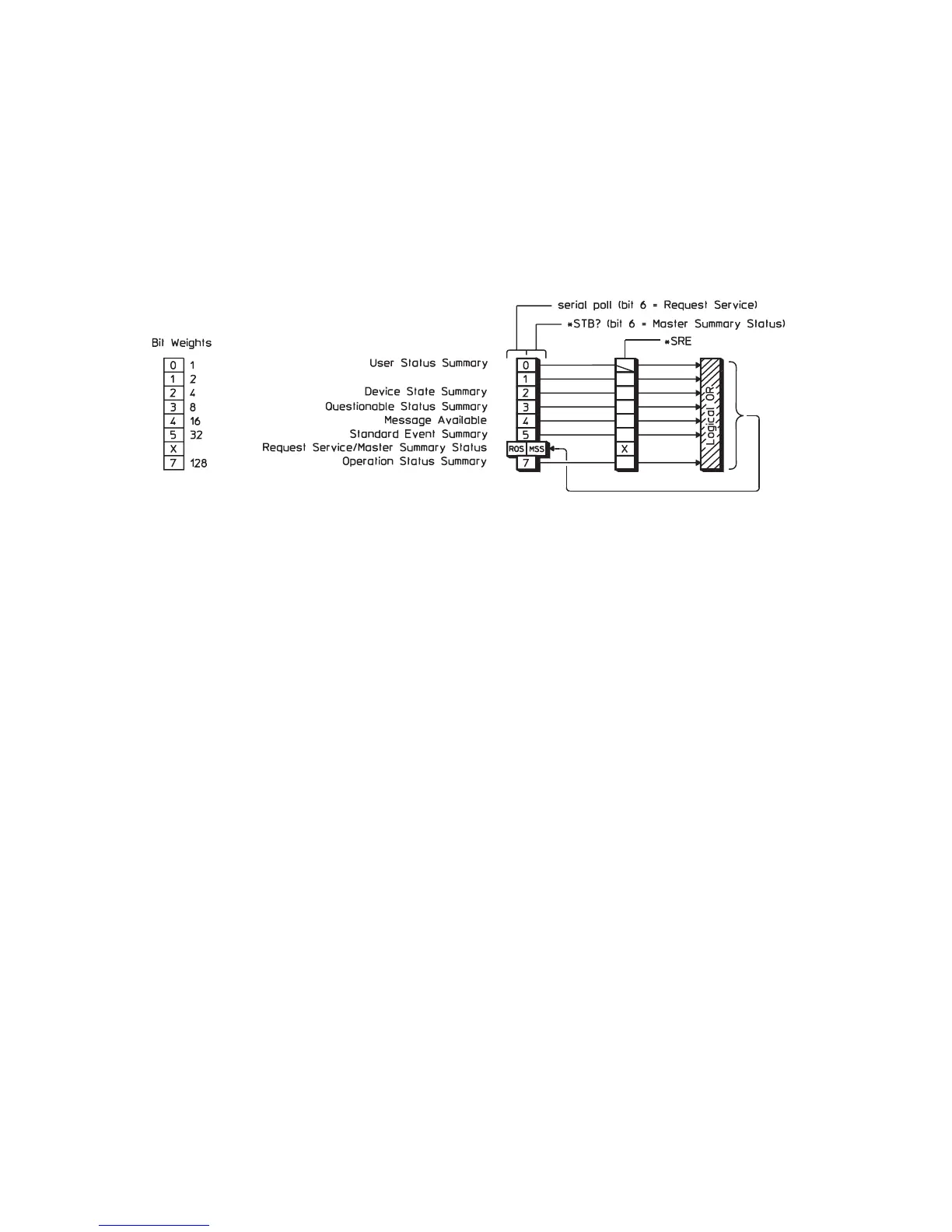

1-6. The Status Byte Register Set
