To clean the ion optics assembly
8 Remove the two screws holding the octopole to the skimmer space
(Figure 62). Be careful not to let the ion optics fall on the table. Support the
octopole by holding it up by the octopole tube.

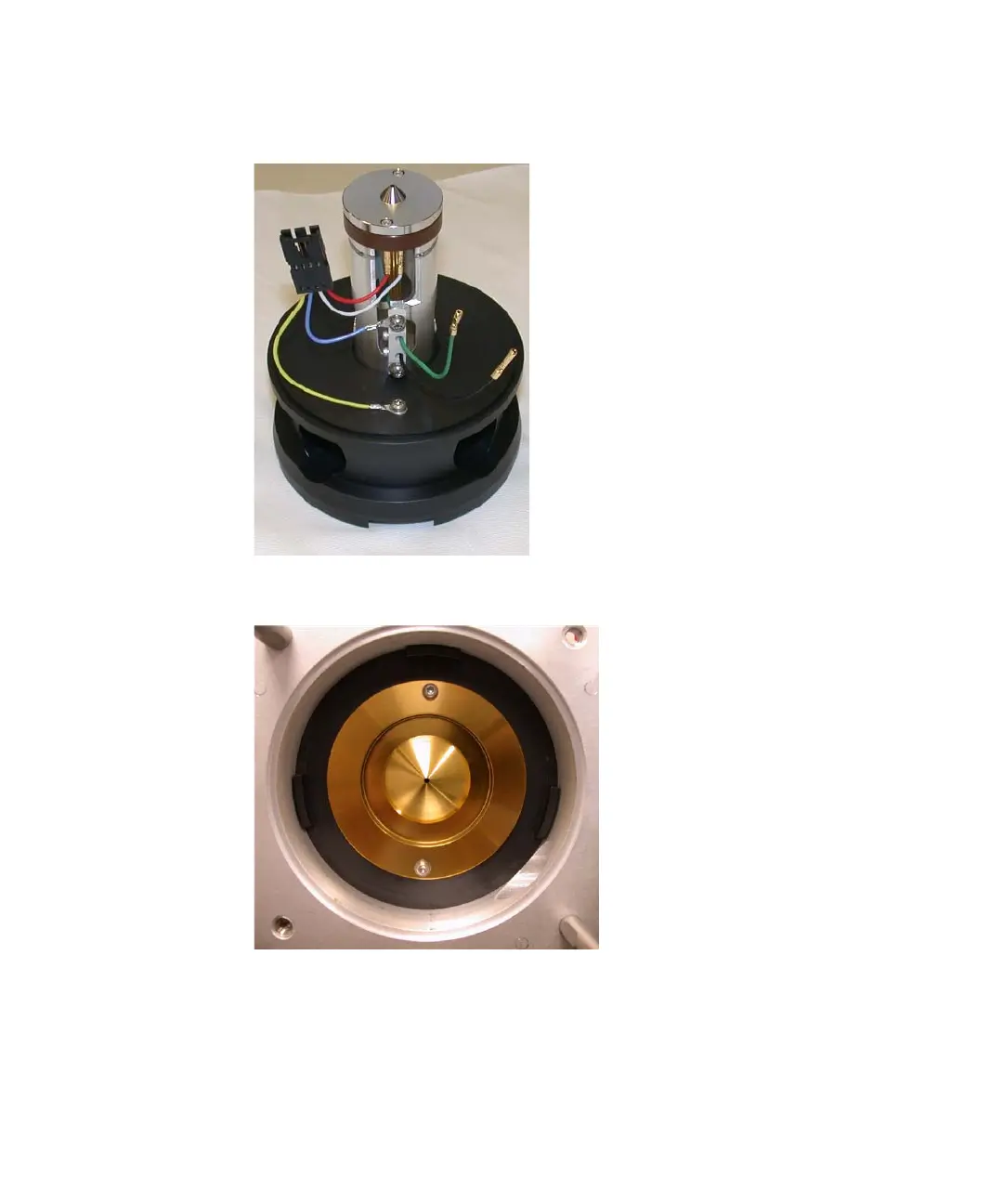

Figure 60 Ion optics assembly
Figure 61 Skimmer 1 (detail)
