Agilent Technologies 6500 Series User Manual

126 Agilent 6500 Series Q-TOF LC/MS Maintenance Guide
2Maintenance
To clean the ion optics assembly
9 Disconnect wiring harness and connections (Figure 63). The red wire is for
lens 2 and the white wire is for lens 1.
10 Leave the yellow wires attached to skimmer spacer (Figure 64). Leave the
ion optics in the skimmer spacer and use it as a stand to remove lens 2,
spacer insulator, and lens 1. Be careful not to damage the octopole rods.

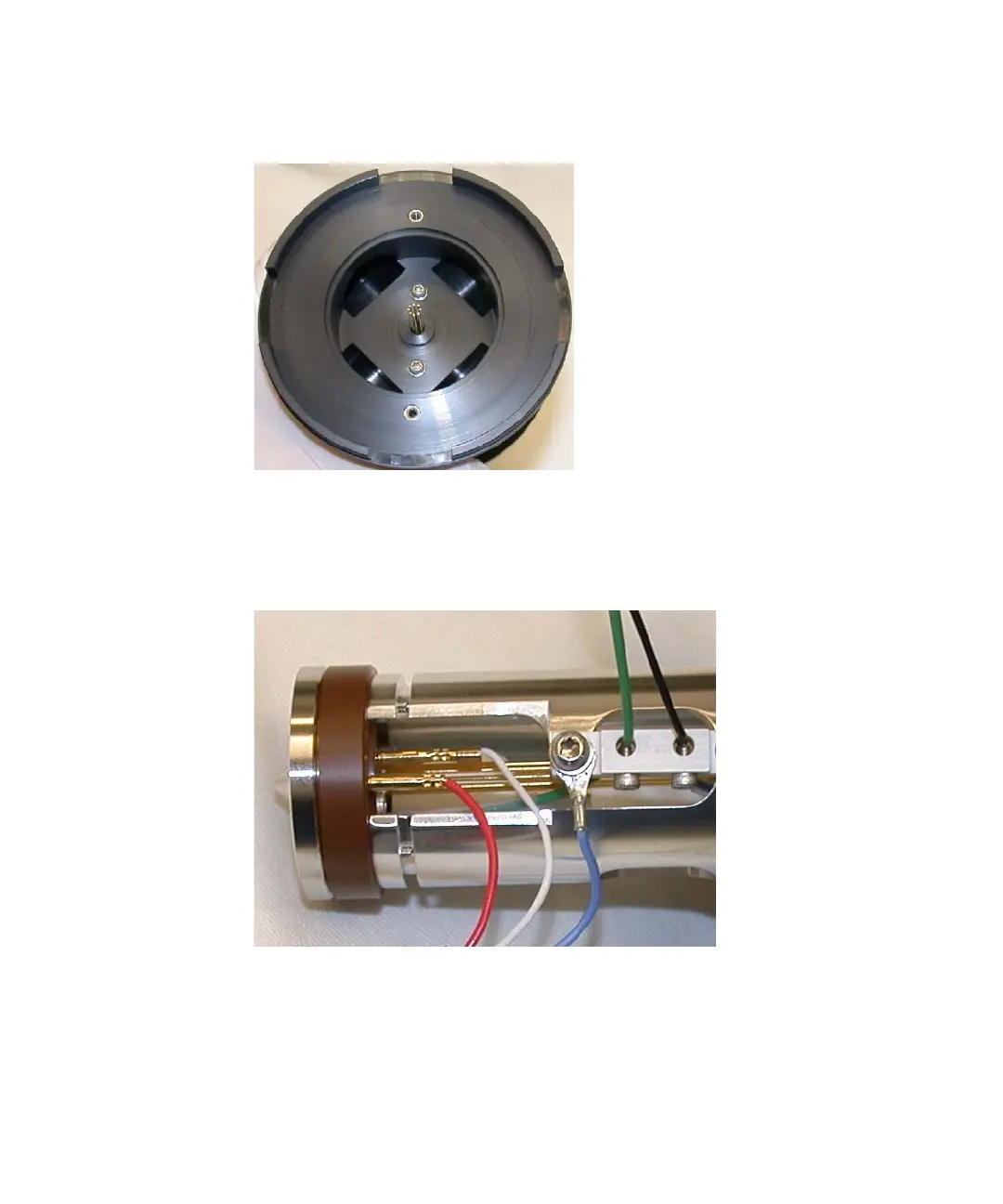

Figure 62 Octopole rods extending through Skimmer Spacer.
Figure 63 Lens 1 and Lens 2 wires
